1979 Suzuki GS425L Chain Case - Shock Absorber Diagram

← All diagrams

Find the part on the Chain Case - Shock Absorber diagram for your 1979 Suzuki GS425L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

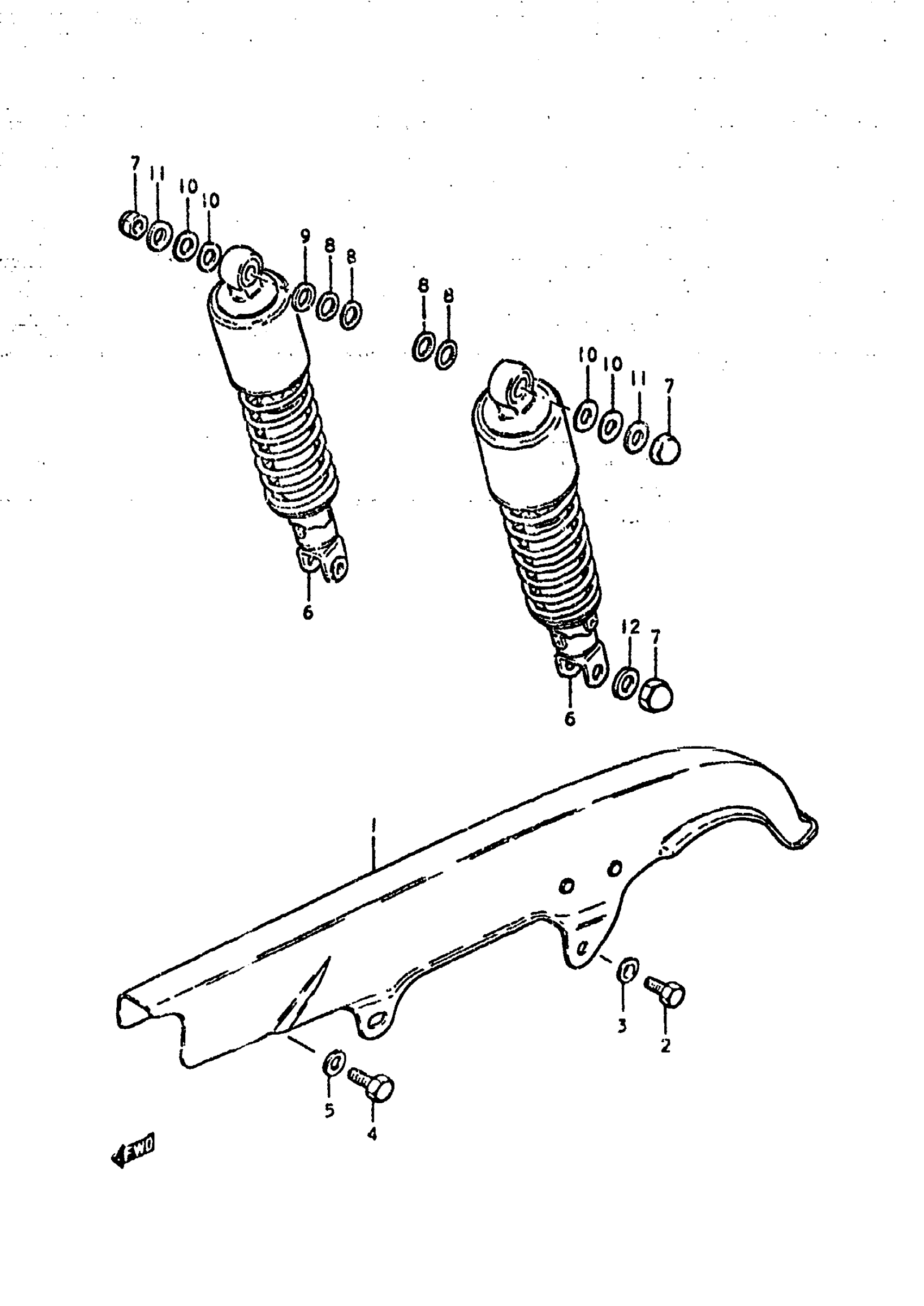

1979 Suzuki GS425L Chain Case - Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN CASE

61310-44000-019

1
Out of stock

2

BOLT, PLATE (6X8) This part replaces 09100-06092.

09100-06157

2
Out of stock

3

WASHER

09169-06026

2
Out of stock

4

BOLT This part replaces 01107-06108.

01500-06107

1
Out of stock

5

WASHER

09160-06056

1
Out of stock

6

NO DESCRIPTION AVAILABLE This part replaces 62100-44200.

62100-44411

2
Out of stock

7

NUT This part replaces 08313-11108.

08313-10107

4
Out of stock

8

WASHER This part replaces 08322-11128.

08322-01127

4
Out of stock

9

WASHER, FRONT AXLE | 12.5x24x3.2 This part replaces 09160-12012.

09160-12082

1
Out of stock

10

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

4
Out of stock

11

WASHER | 10.5x24x3.2 This part replaces 09160-10033.

09160-10128-XC0

4
Out of stock

12

WASHER This part replaces 09160-12004.

09160-12088

2
Out of stock
