1979 Suzuki GS425L Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1979 Suzuki GS425L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

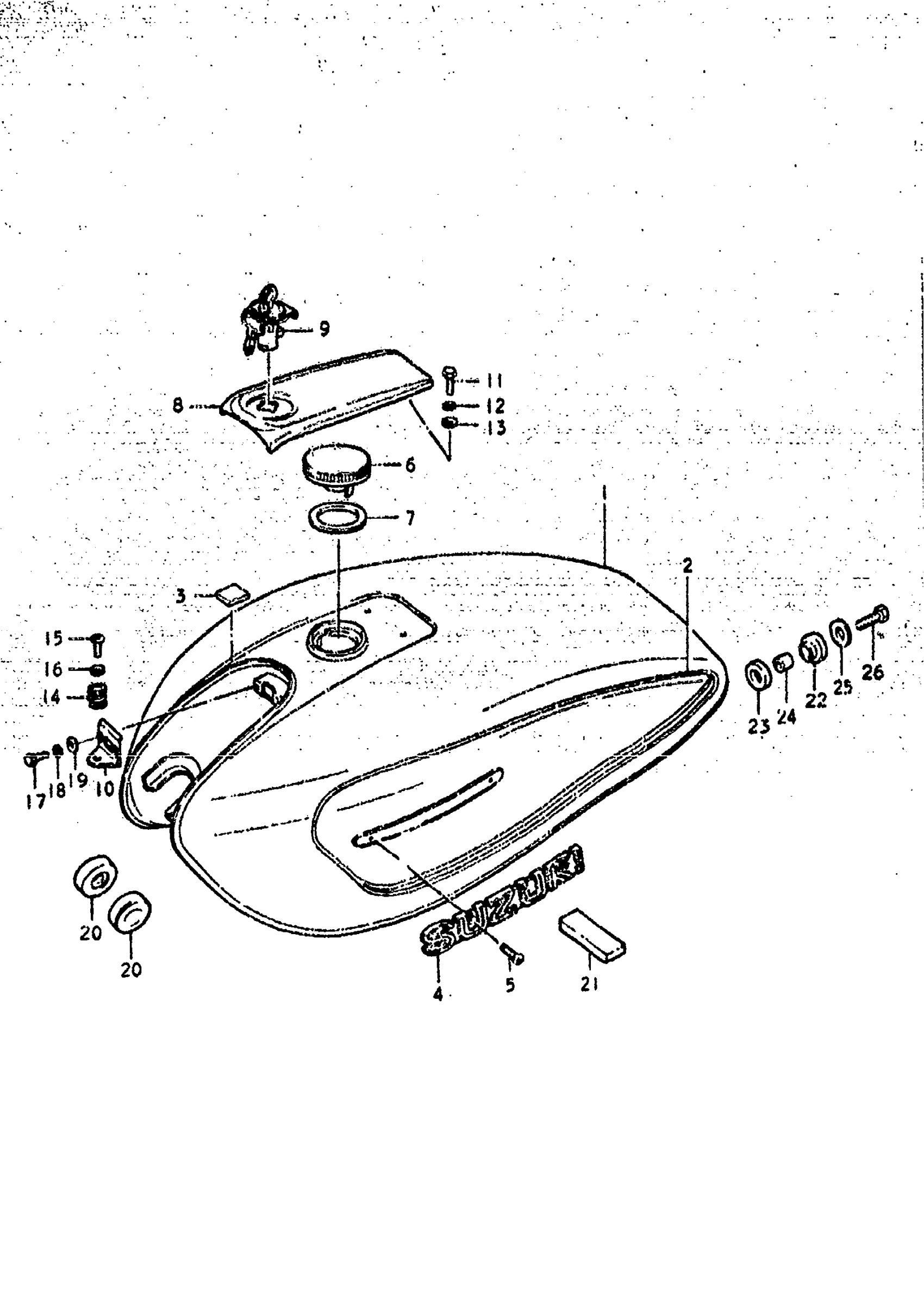

1979 Suzuki GS425L Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL | Includes Item(s) 2 - 3 This part replaces 44100-44200-05L.

44110-44000-737

1
Out of stock

2

TAPE SET

68100-44890-764

1
Out of stock

3

2

$3.53

In stock

4

2

$24.98

In stock

5

SCREW This part replaces 02132-03065.

02122-0306B

4
Out of stock

6

CAP FUEL TANK This part replaces 44210-23300.

44200-23810

1
Out of stock

7

GASKET

85413-70000

1

$4.40

In stock

8

COVER, FUEL TANK FRONT

44270-44003

1
Out of stock

9

1

$65.62

In stock

10

TANK FR COVER H This part replaces 44290-37001.

44290-3700V

1
Out of stock

11

BOLT This part replaces 01104-05108.

01500-0510B

2
Out of stock

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

13

2

$2.33

In stock

14

SPRING

09446-17001

1

$2.92

In stock

15

1

$1.52

In stock

16

LOCK WASHER This part replaces 08321-21058.

08321-0105A

1
Out of stock

17

BOLT This part replaces 01104-05108.

01500-0510B

2
Out of stock

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

19

2

$2.33

In stock

20

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

21

1

$4.71

In stock

22

CUSHION, REAR NO.2

09320-12013

1

$2.92

In stock

23

CUSHION, REAR NO.3

09320-12017

1

$2.37

In stock

24

SPACER

09180-08067

1

$2.58

In stock

25

WASHER This part replaces 09160-08035.

09160-08130

1
Out of stock

26

1

$2.94

In stock
