1979 Suzuki GS425L Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1979 Suzuki GS425L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

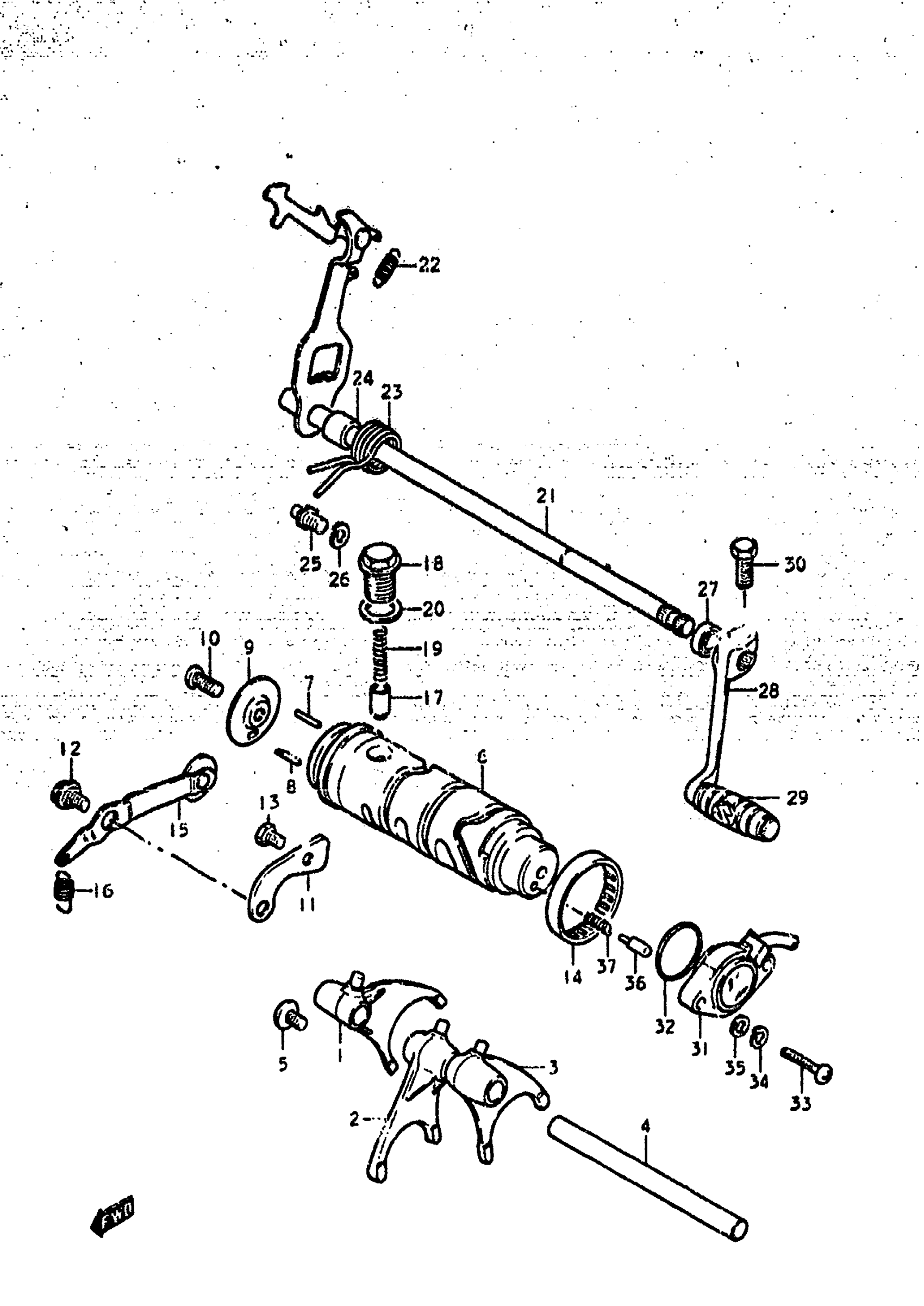

1979 Suzuki GS425L Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFTING NO.1

25211-44001

1
Out of stock

2

FORK, GEAR SHIFTING NO.2

25221-44001

1
Out of stock

3

FORK, GEAR SHIFTING NO.3

25231-44000

1
Out of stock

4

SHAFT, GEAR SHIFT FORK NO.1 This part replaces 25411-31000.

25411-18900

1
Out of stock

5

SCREW

02142-06108

1
Out of stock

6

CAM, GEAR SHIFTING

25311-44000

1
Out of stock

7

PIN

09261-04001

5
Out of stock

8

PIN

09209-04013

1
Out of stock

9

HOLDER, DRIVE PIN

25322-44000

1
Out of stock

10

SCREW This part replaces 02112-06168.

02112-06167

1
Out of stock

11

GUIDE, CAM This part replaces 25341-44000.

25341-33300

1
Out of stock

12

BOLT This part replaces 09111-06019.

09111-06054

1
Out of stock

13

BOLT This part replaces 01107-06128.

01500-06127

1
Out of stock

14

BEARING

09263-40001

1
Out of stock

15

STOPPER, CAM NO.1

25350-44000

1
Out of stock

16

SPRING

09443-09007

1
Out of stock

17

1

$11.55

In stock

18

1

$7.41

In stock

19

SPRING

09440-05018

1
Out of stock

20

GASKET

09168-14004

1
Out of stock

21

SHAFT, GEAR SHIFTING

25510-44000

1
Out of stock

22

SPRING

09443-07013

1
Out of stock

23

SPRING This part replaces 09444-26012.

09444-26013

1
Out of stock

24

SPACER

09180-12068

1
Out of stock

25

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

26

1

$2.28

In stock

27

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

28

LEVER ASSY, GEAR SHIFTING

25600-44000

1
Out of stock

29

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

1
Out of stock

30

BOLT, REAR This part replaces 01107-08208.

01500-08207

1
Out of stock

31

BODY, GEAR SHIFTING SWITCH

37720-45100

1
Out of stock

32

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

1
Out of stock

33

SCREW This part replaces 02112-05208.

02112-05207

2
Out of stock

34

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

35

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

36

CONTACT

09209-05011

1
Out of stock

37

SPRING

09440-04010

1
Out of stock

28

LEVER ASSY, GEAR SHIFTING

25600-44000

1
Out of stock

29

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

1
Out of stock

30

BOLT, REAR This part replaces 01107-08208.

01500-08207

1
Out of stock

31

BODY, GEAR SHIFTING SWITCH

37720-45100

1
Out of stock

32

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

1
Out of stock

33

SCREW This part replaces 02112-05208.

02112-05207

2
Out of stock

34

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

35

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

36

CONTACT

09209-05011

1
Out of stock

37

SPRING

09440-04010

1
Out of stock
