1977 Suzuki GS400X Speedometer - Tachometer Diagram

← All diagrams

Find the part on the Speedometer - Tachometer diagram for your 1977 Suzuki GS400X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

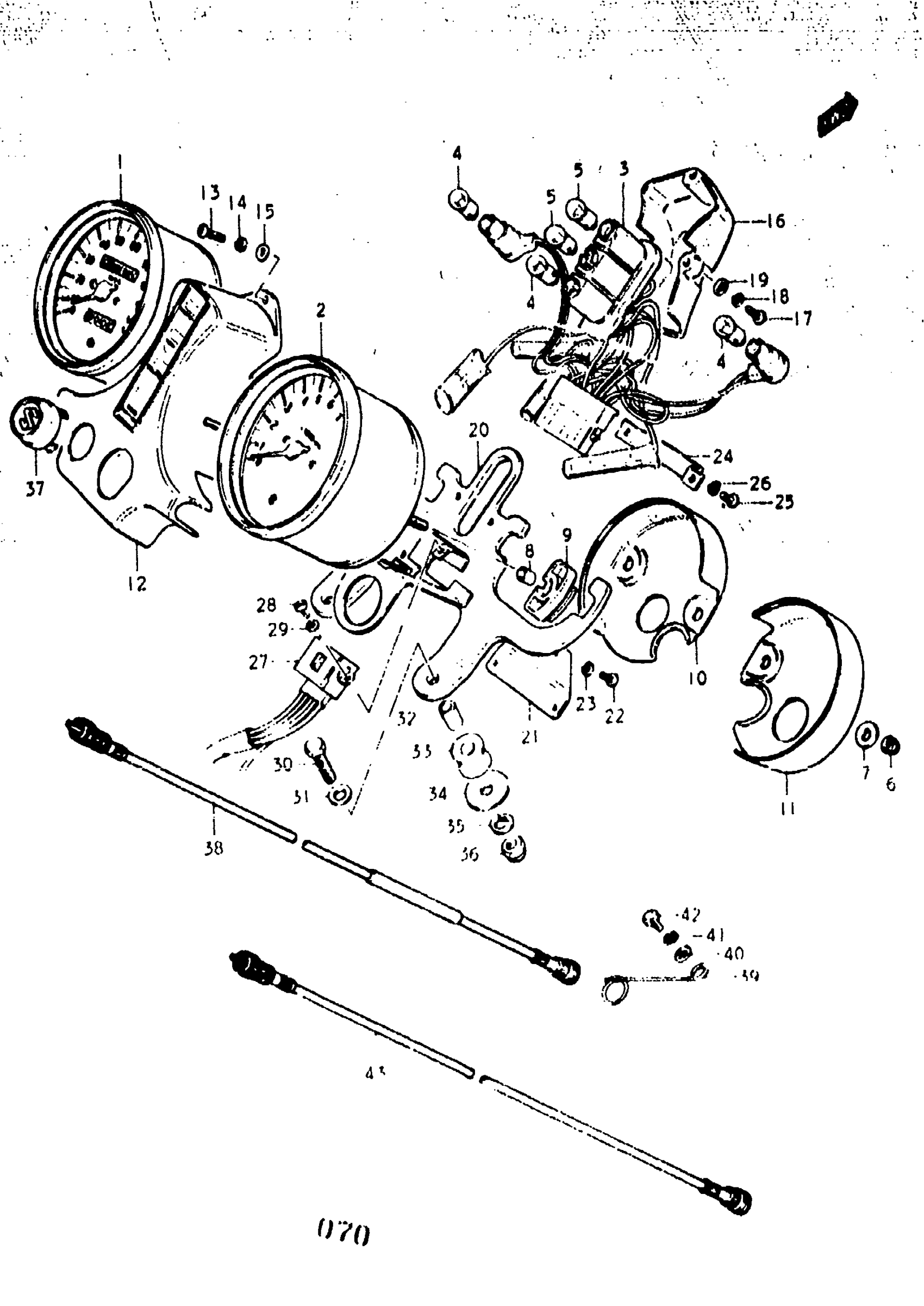

1977 Suzuki GS400X Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 29 This part replaces 34100-44610.

34100-44632

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 34110-44610.

34110-44631

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 34210-44020.

34210-44021

1
Out of stock

3

SOCKET

34170-44600

1
Out of stock

4

BULB | 12V, 3.4W

09471-12001

3

$2.08

In stock

5

BULB | 12V, 1.7W

09471-12004

2
Out of stock

6

NUT This part replaces 34185-30520.

08313-1005B

4
Out of stock

7

WASHER (5.5X16X1.2) This part replaces 34181-30520.

09160-05037

4
Out of stock

8

SPACER This part replaces 34972-44020.

34972-44022

4
Out of stock

9

CUSHION

34955-44020

4
Out of stock

10

UNDER COVER, SPEEDOMETER

34960-44020

1
Out of stock

11

UNDER COVER, TACHOMETER

34961-44020

1
Out of stock

12

CASE, PILOT BULB

34980-44020

1
Out of stock

13

SCREW

34998-44020

—
Out of stock

14

LOCK WASHER

34997-44020

1
Out of stock

15

WASHER This part replaces 09160-04006.

08322-0104A

1
Out of stock

16

COVER, PILOT CASE UNDER

34981-44020

1
Out of stock

17

SCREW

09125-04011

2
Out of stock

18

LOCK WASHER

34997-44020

2
Out of stock

19

WASHER This part replaces 09160-04006.

08322-0104A

2
Out of stock

20

BRACKET This part replaces 34950-44020.

34950-44021

1
Out of stock

21

BRACKET, COUPLER HOLDER

34953-44020

1
Out of stock

22

1

$1.67

In stock

23

LOCK WASHER This part replaces 08321-21048.

08321-0104A

1
Out of stock

24

HOLDER, COUPLER

34954-44020

1
Out of stock

25

SCREW This part replaces 02111-03067.

02112-0306B

2
Out of stock

26

WASHER,LOCK This part replaces 08321-21038.

09162-03001

2
Out of stock

27

NO DESCRIPTION AVAILABLE This part replaces 34990-33122.

34990-33123

1
Out of stock

28

SCREW This part replaces 02111-03067.

02112-0306B

2
Out of stock

29

WASHER,LOCK This part replaces 08321-21038.

09162-03001

2
Out of stock

30

BOLT This part replaces 01112-06258.

01500-06257

2
Out of stock

31

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

32

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

2
Out of stock

33

CUSHION

34956-44000

2
Out of stock

34

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

2
Out of stock

35

2

$2.28

In stock

36

NUT, LICENSE HOLDER This part replaces 08313-11067.

08313-10067

2
Out of stock

37

CAP

34995-31600

1
Out of stock

38

CABLE,SPEEDOMET This part replaces 34910-44030.

34910-05311

1
Out of stock

39

CLAMP

34938-37000

1
Out of stock

40

.WASHER This part replaces 08322-11068.

08322-0106B

1
Out of stock

41

1

$2.28

In stock

42

1

$2.10

In stock

43

CABLE,TACHOMETE This part replaces 34940-44030.

34940-37312

1
Out of stock
