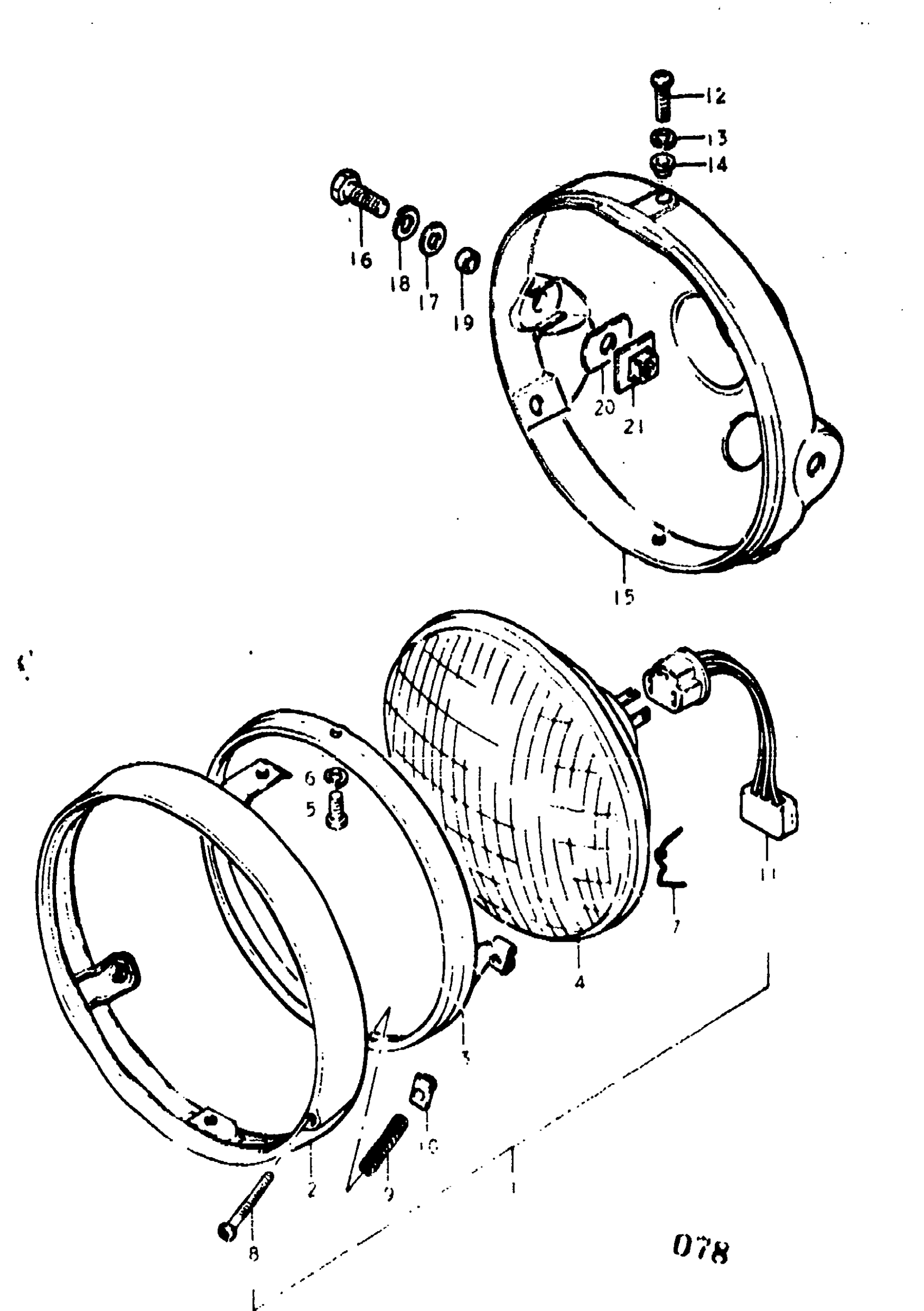

Find the part on the Headlamp diagram for your 1977 Suzuki GS400X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GS400X Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | B,XB; Includes Item(s) 2 - 11 This part replaces 35100-44610.

35100-44611

1
Out of stock

2

RIM | B,XB

35111-44610

1
Out of stock

3

RING | B,XB

35127-33630

1
Out of stock

4

UNIT (12V, 50/35W) | B,XB; 12V, 40/30W This part replaces 35121-44610.

35121-44611

1
Out of stock

5

SCREW | B,XB This part replaces 35136-33630.

35136-29610

2
Out of stock

6

LOCK WASHER | B,XB This part replaces 08321-21058.

08321-0105A

2
Out of stock

7

SPRING | B,XB

35172-33630

3
Out of stock

8

SCREW, ADJUSTING | B,XB

35151-33630

1
Out of stock

9

SPRING | B,XB

35154-33630

1
Out of stock

10

NUT | B,XB

35152-15611

1
Out of stock

11

LEAD WIRE, HEADLAMP | B,XB This part replaces 36852-33630.

36853-30500

1
Out of stock

12

SCREW | B,XB This part replaces 09125-05022.

09125-05115

3
Out of stock

13

WASHER | B,XB This part replaces 09162-05003.

09162-05002

3
Out of stock

14

WASHER | B,XB

09169-06021

3
Out of stock

15

HOUSING, HEADLAMP | B,XB

51811-44000-291

1
Out of stock

16

BOLT | B,XB This part replaces 01221-08257.

01204-08257

2
Out of stock

17

WASHER | B,XB This part replaces 08322-11088.

08322-01087

2
Out of stock

18

2

$2.28

In stock

19

SPACER | B,XB This part replaces 09180-08030.

09180-08187

2
Out of stock

20

CUSHION | B,XB This part replaces 09329-12002.

09329-12005

2
Out of stock

21

PLATE | B,XB

51860-45000

2
Out of stock
