1977 Suzuki GS400X Speedometer - Tachometer Diagram

← All diagrams

Find the part on the Speedometer - Tachometer diagram for your 1977 Suzuki GS400X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

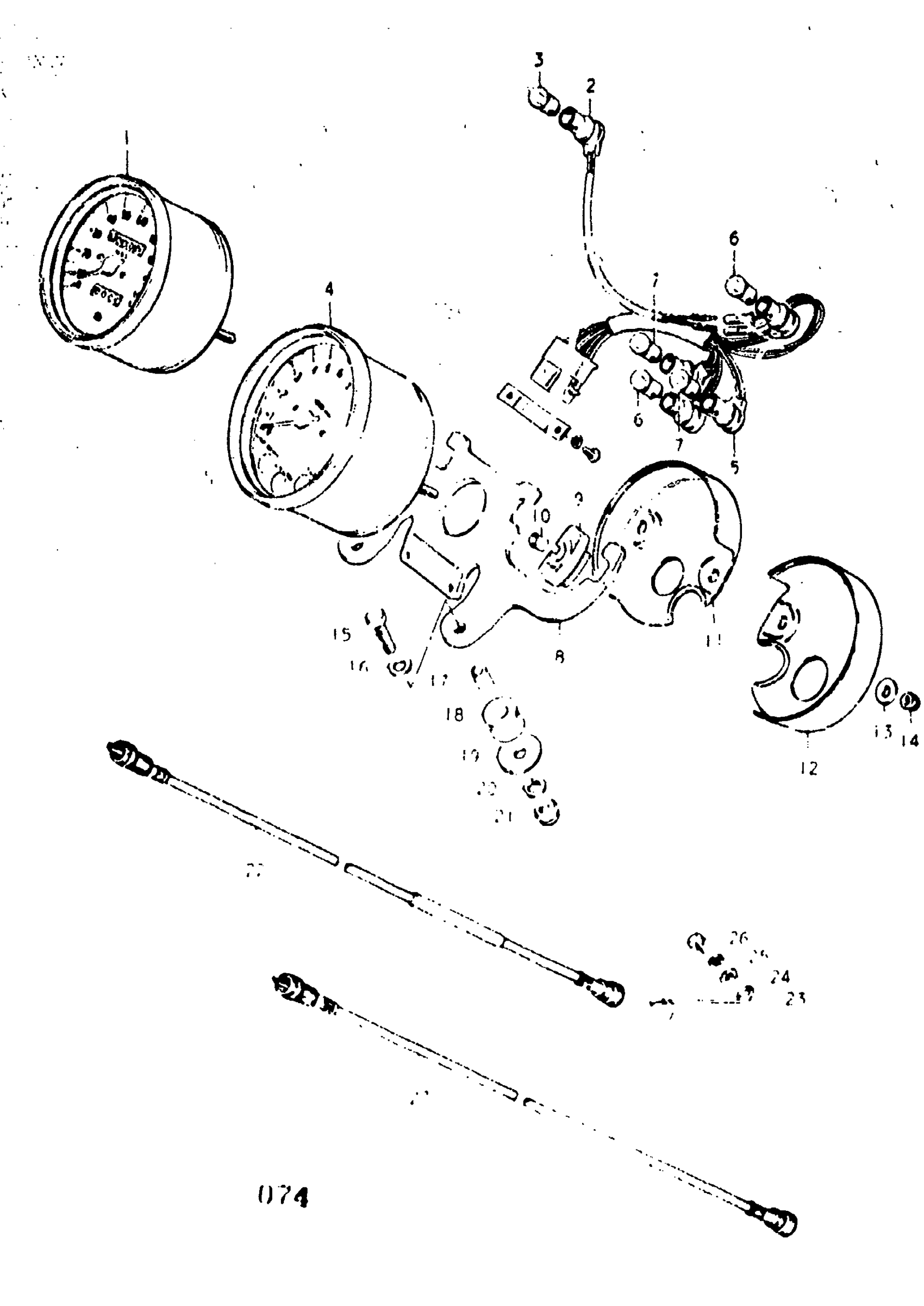

1977 Suzuki GS400X Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 14 This part replaces 34100-44620.

34100-44622

1
Out of stock

1

SPEEDOMETER This part replaces 34101-44620.

34101-44030

1
Out of stock

2

SOCKET

34170-44620

—
Out of stock

3

BULB | 12V, 3.4W

09471-12001

1

$2.08

In stock

4

NO DESCRIPTION AVAILABLE This part replaces 34201-44620.

34201-44621

1
Out of stock

5

SOCKET

34270-44620

—
Out of stock

6

BULB | 12V, 3.4W

09471-12001

2

$2.08

In stock

7

BULB | 12V, 1.7W

09471-12004

2

$2.92

In stock

8

BRACKET

34950-44620

1
Out of stock

9

CUSHION

34955-44020

4
Out of stock

10

SPACER This part replaces 34972-44021.

34972-44022

4
Out of stock

11

UNDER COVER, SPEEDOMETER

34960-44020

1
Out of stock

12

UNDER COVER, TACHOMETER

34961-44020

1
Out of stock

13

4

$1.61

In stock

14

4

$2.95

In stock

15

2

$2.10

In stock

16

2

$1.84

In stock

17

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

2
Out of stock

18

CUSHION

34956-44000

2
Out of stock

19

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

2
Out of stock

20

2

$2.28

In stock

21

2

$1.97

In stock

22

1

$83.12

In stock

23

CLAMP

34938-37000

1

$4.21

In stock

24

.WASHER This part replaces 08322-11068.

08322-0106B

1
Out of stock

25

1

$2.28

In stock

26

1

$2.10

In stock

27

1

$57.68

In stock
