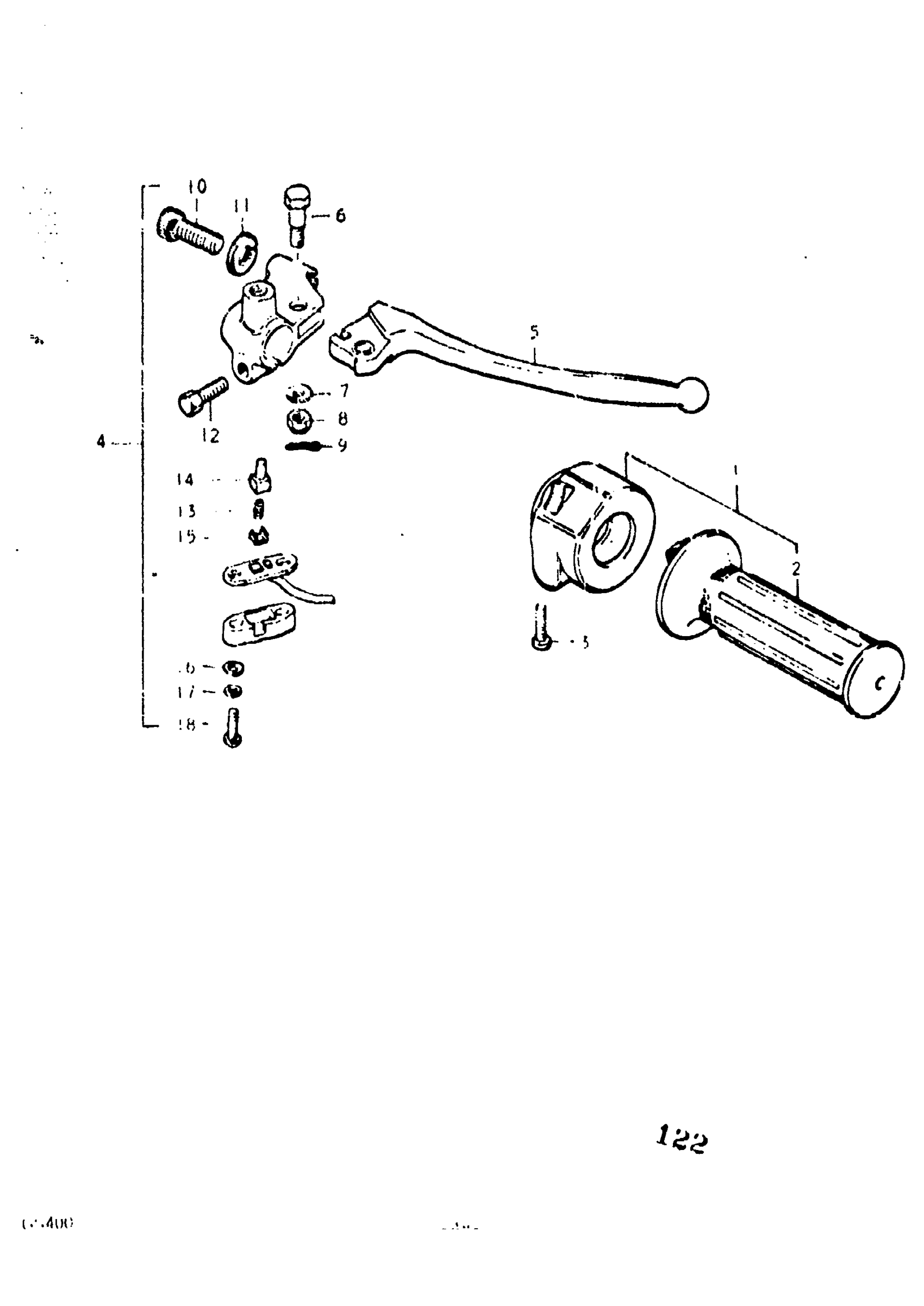

Suzuki GS400X (1977) RH HANDLE SWITCH (GS400XB) Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | Includes Item(s) 2 - 3

57100-44600

Unavailable

2

GRIP, THROTTLE This part replaces 57110-44500.

57110-49501

$32.02

3

SCREW This part replaces 02111-05257.

02112-05257

$1.49

4

LEVER ASSY, BRAKE | Includes Item(s) 5 - 18 This part replaces 57300-30014.

57300-30501

Unavailable

5

LEVER, BRAKE

57420-18602

Unavailable

6

BOLT This part replaces 57431-11010.

57431-11013

$5.95

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

8

NUT

57433-11010

$5.32

9

PIN This part replaces 04111-16158.

04111-1620A

$0.96

10

ADJUSTER, CABLE

57441-11010

$5.14

11

NUT

57442-11010

$2.80

12

BOLT This part replaces 01112-06208.

01500-06207

$1.99

13

HOLDER This part replaces 57462-18600.

57465-18601

$3.97

14

HOLDER This part replaces 57461-18600.

57465-18601

$3.97

15

HOLDER This part replaces 57463-18600.

57465-18601

$3.97

16

WASHER This part replaces 08322-21038.

08322-01037

$1.95

17

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.18

18

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.08
