1980 Suzuki GS1100-LT Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1980 Suzuki GS1100-LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

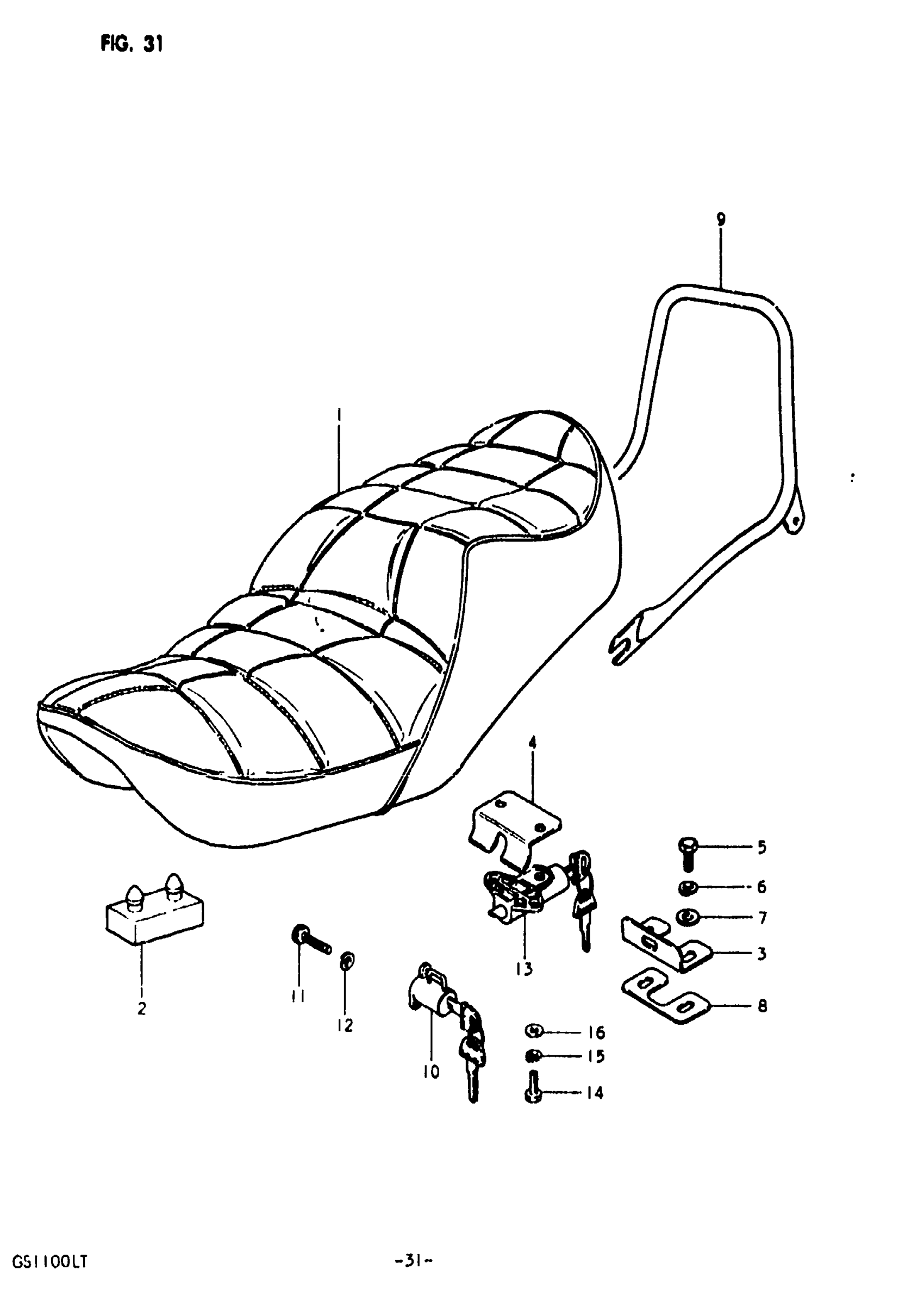

1980 Suzuki GS1100-LT Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 45100-49105-40N.

45100-49120-43U

1
Out of stock

2

CUSHION

09321-08006

4
Out of stock

3

STRIKER, SEAT LOCK

45213-47200

1
Out of stock

4

GUIDE PLATE

45214-49105

1
Out of stock

5

2

$2.10

In stock

6

2

$2.28

In stock

7

.WASHER This part replaces 08322-11068.

08322-0106B

2
Out of stock

8

WASHER (8.5X18X1) This part replaces 45217-47200.

09160-08043

2
Out of stock

9

HANDLE, PILLION RIDER

46210-49105

1
Out of stock

10

LOCK SET, HELME This part replaces 95700-35821.

95700-49850

1
Out of stock

11

BOLT This part replaces 09106-06005.

07130-06307

1
Out of stock

12

1

$2.28

In stock

13

LOCK SET, SEAT This part replaces 95700-47810.

95700-47820

1
Out of stock

14

BOLT This part replaces 01107-06208.

01500-06207

2
Out of stock

15

2

$2.28

In stock

16

.WASHER This part replaces 08322-11068.

08322-0106B

2
Out of stock
