1980 Suzuki GS1100-LT Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 1980 Suzuki GS1100-LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

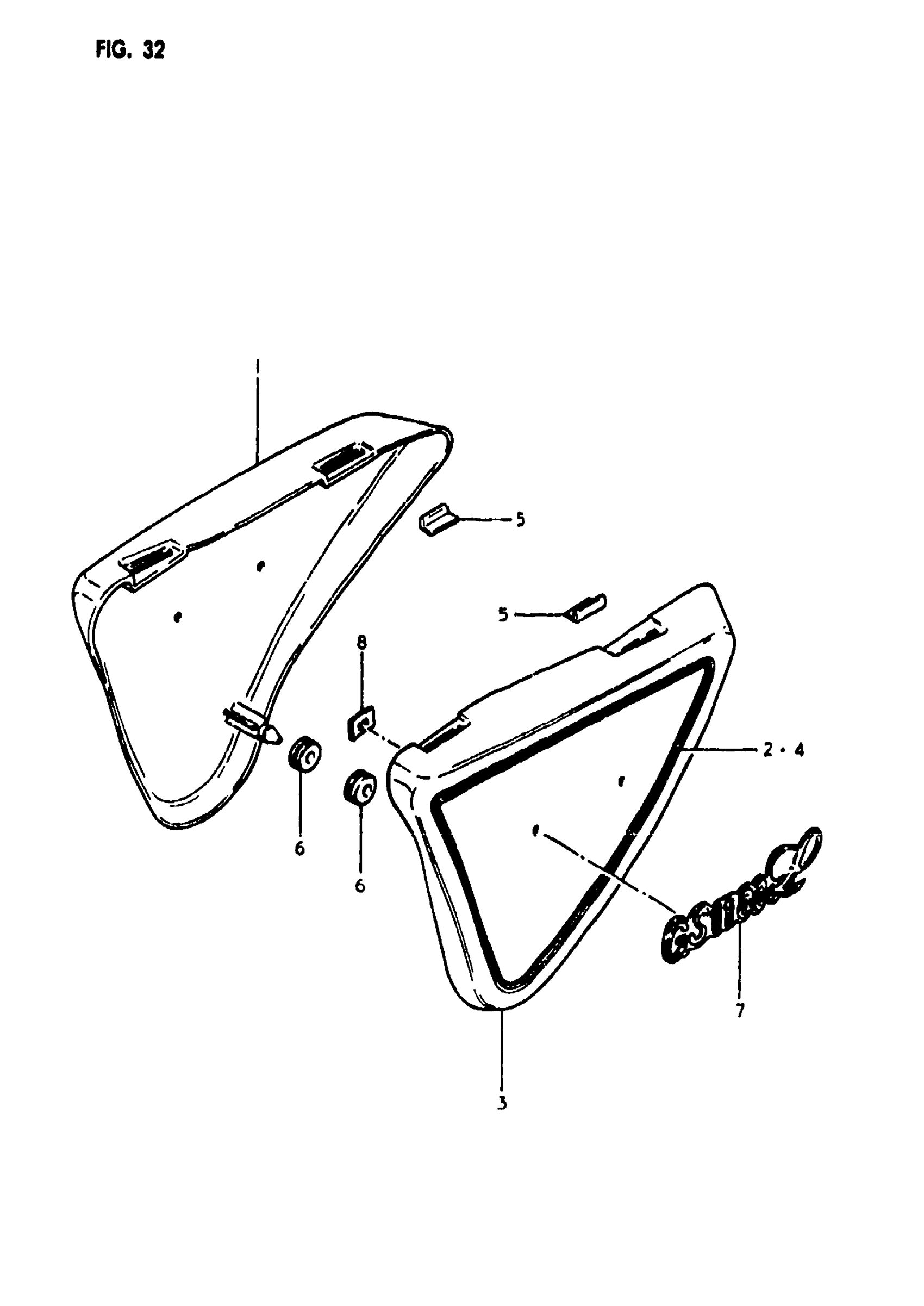

1980 Suzuki GS1100-LT Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,FRAME,RH, This part replaces 47110-49100-05N.

47111-49100

1
Out of stock

1

COVER,FRAME,RH, | Includes Item(s) 2 This part replaces 47110-49820-08E.

47111-49100

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 68130-49110-67M.

68130-49Z00-67M

1
Out of stock

3

COVER, FRAME, L This part replaces 47210-49100-05N.

47211-49100

1
Out of stock

3

COVER, FRAME, L | Includes Item(s) 4 This part replaces 47210-49820-08E.

47211-49100

1
Out of stock

4

TAPE SET, LH

68140-49110-67M

1
Out of stock

5

CUSHION

47117-45000

4
Out of stock

6

CUSHION, LOWER

09320-08018

2
Out of stock

7

EMBLEM This part replaces 68131-49110.

68131-49130

2
Out of stock

8

NUT

09148-03002

4
Out of stock
