1980 Suzuki GS1100-LT Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 1980 Suzuki GS1100-LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

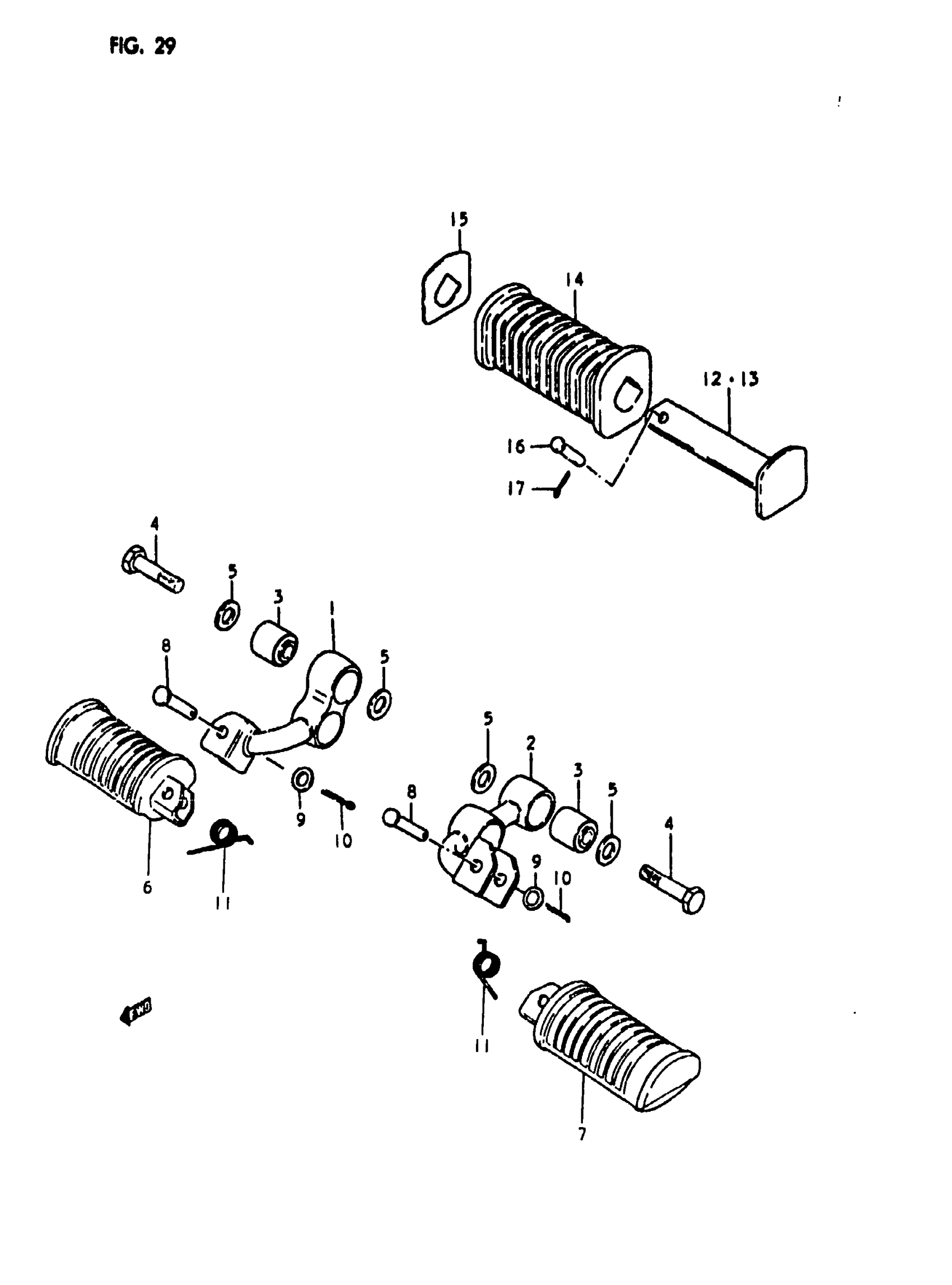

1980 Suzuki GS1100-LT Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR, FRONT FOOTREST RH

43510-49200-019

1
Out of stock

2

BAR, FRONT FOOTREST LH

43520-49200-019

1
Out of stock

3

BUSHING

09319-10008

4
Out of stock

4

BOLT (10X38) This part replaces 09104-10007.

09104-10029

4
Out of stock

5

WASHER, REAR This part replaces 09160-10057.

09160-10142

8
Out of stock

6

RUBBER,PILLION This part replaces 43550-49002.

43550-37310

1
Out of stock

7

1

$32.87

In stock

8

PIN

09200-08002

2
Out of stock

9

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

10

.COTTER PIN This part replaces 04111-20158.

04111-2015A

2
Out of stock

11

SPRING

09443-14013

2
Out of stock

12

BAR, PILLION RH This part replaces 43610-45000.

43610-45001

1
Out of stock

13

BAR, PILLION LH This part replaces 43620-45000.

43620-45001

1
Out of stock

14

RUBBER This part replaces 43612-49200.

43612-49201

2
Out of stock

15

WASHER This part replaces 43631-45000.

43631-45001

2
Out of stock

16

PIN

09200-06010

2
Out of stock

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

2
Out of stock
