1980 Suzuki GS1100-LT Cylinder Diagram

← All diagrams

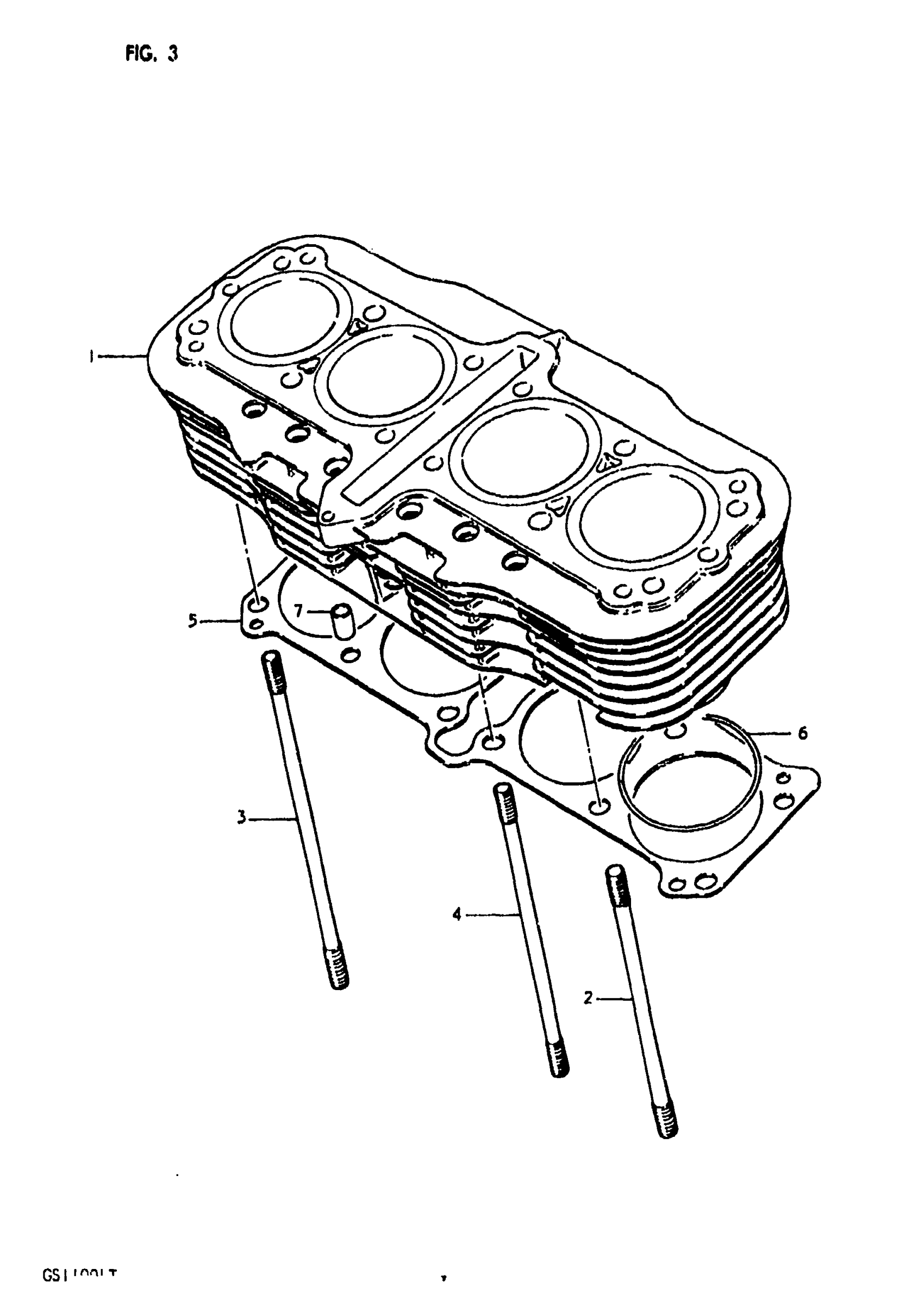

Find the part on the Cylinder diagram for your 1980 Suzuki GS1100-LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Suzuki GS1100-LT Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER This part replaces 11210-49200.

11210-49220

1
Out of stock

2

STUD BOLT (L: 131)

09108-10027

4

$6.50

In stock

3

STUD BOLT (L:168) This part replaces 09108-10028.

09108-10112

6
Out of stock

4

STUD BOLT (L: 141)

09108-10030

2

$9.08

In stock

5

1

$54.09

In stock

6

O RING

09280-74002

4

$5.24

In stock

7

2

$7.37

In stock
