1980 Suzuki GS1100-LT Crankcase Cover Diagram

← All diagrams

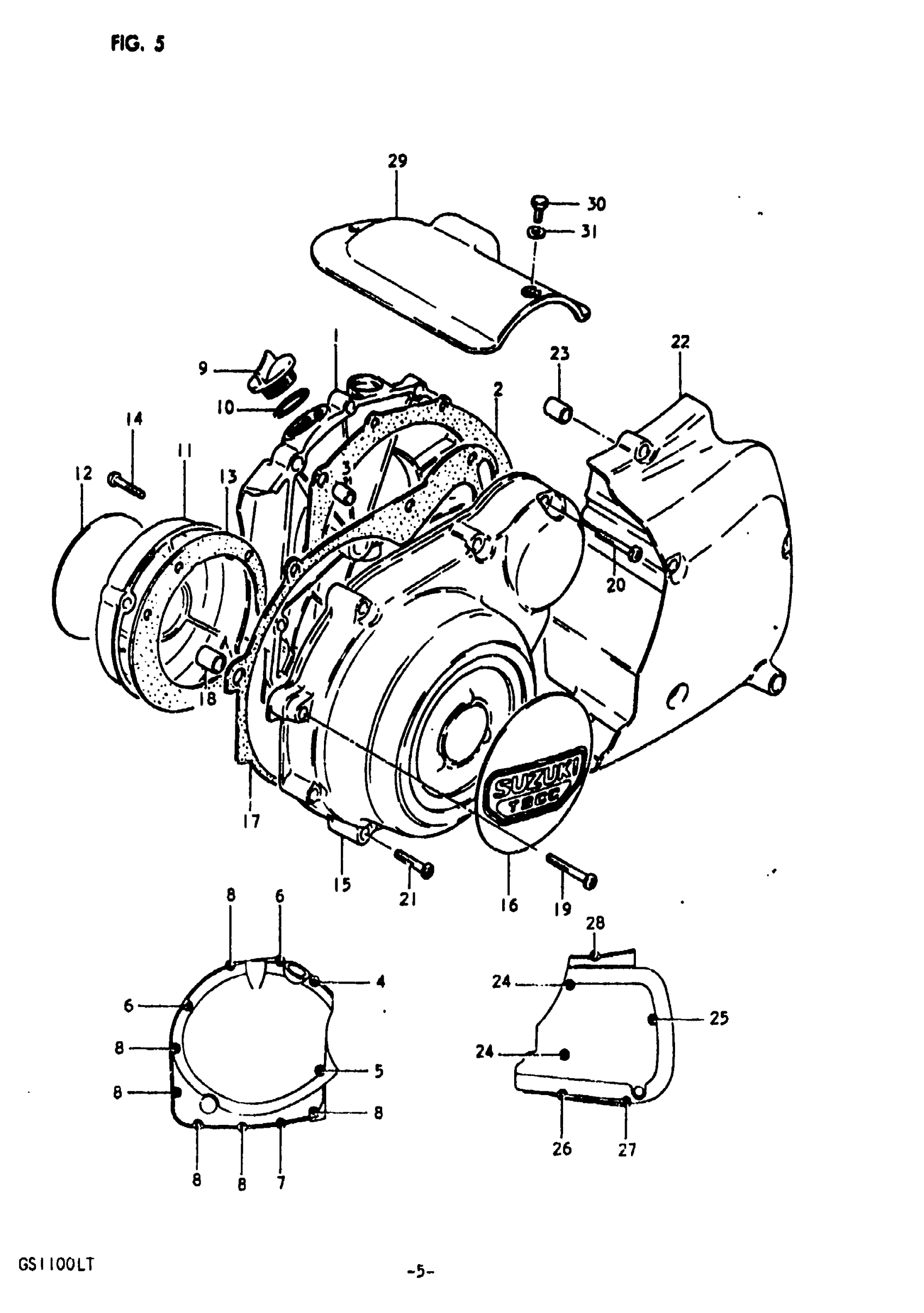

Find the part on the Crankcase Cover diagram for your 1980 Suzuki GS1100-LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Suzuki GS1100-LT Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH This part replaces 11340-49200.

11340-49201

1
Out of stock

2

GASKET,CLUTCH C This part replaces 11482-49201.

11482-49202-H17

1
Out of stock

3

PIN

04211-09129

2
Out of stock

4

SCREW (6X40) This part replaces 02112-06408.

02112-06407

1
Out of stock

5

SCREW This part replaces 02112-06358.

02112-06357

1
Out of stock

6

SCREW This part replaces 02112-06308.

02112-06307

2
Out of stock

7

SCREW This part replaces 02112-06258.

02112-06257

1
Out of stock

8

SCREW This part replaces 02112-06208.

02112-06207

6
Out of stock

9

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

1
Out of stock

10

O RING

09280-32005

1
Out of stock

11

COVER, CONTACT BREAKER This part replaces 11381-49200.

11381-49202

1
Out of stock

12

EMBLEM

68235-49200

1
Out of stock

13

GASKET

11491-49200

1
Out of stock

14

SCREW This part replaces 02112-05308.

02112-0530A

3
Out of stock

15

COVER, GENERATOR This part replaces 11351-49200.

11351-49201

1
Out of stock

16

EMBLEM

68233-49200

1
Out of stock

17

GASKET,MAGNETO This part replaces 11483-49200.

11483-49210

1
Out of stock

18

PIN This part replaces 09206-13001.

04211-13189

1
Out of stock

19

SCREW (6X45) This part replaces 02112-06458.

02112-06457

1
Out of stock

20

SCREW (6X40) This part replaces 02112-06408.

02112-06407

1
Out of stock

21

SCREW This part replaces 02112-06358.

02112-06357

7
Out of stock

21

SCREW This part replaces 02112-06308.

02112-06307

1
Out of stock

22

COVER, ENGINE SPROCKET This part replaces 11360-49200.

11360-49201

1
Out of stock

23

PIN

04211-09129

1
Out of stock

24

SCREW This part replaces 02112-06958.

02112-0695B

2
Out of stock

25

SCREW This part replaces 02112-06858.

02112-06857

1
Out of stock

26

SCREW This part replaces 02112-06708.

02112-06707

1
Out of stock

27

SCREW (6x55)

02112-06557

1
Out of stock

28

SCREW This part replaces 02112-06308.

02112-06307

1
Out of stock

29

COVER, STARTER MOTOR

11382-49002

1
Out of stock

30

BOLT This part replaces 01104-05108.

01500-0510B

2
Out of stock

31

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock
