1980 Suzuki GS1100-LT Crankshaft Diagram

← All diagrams

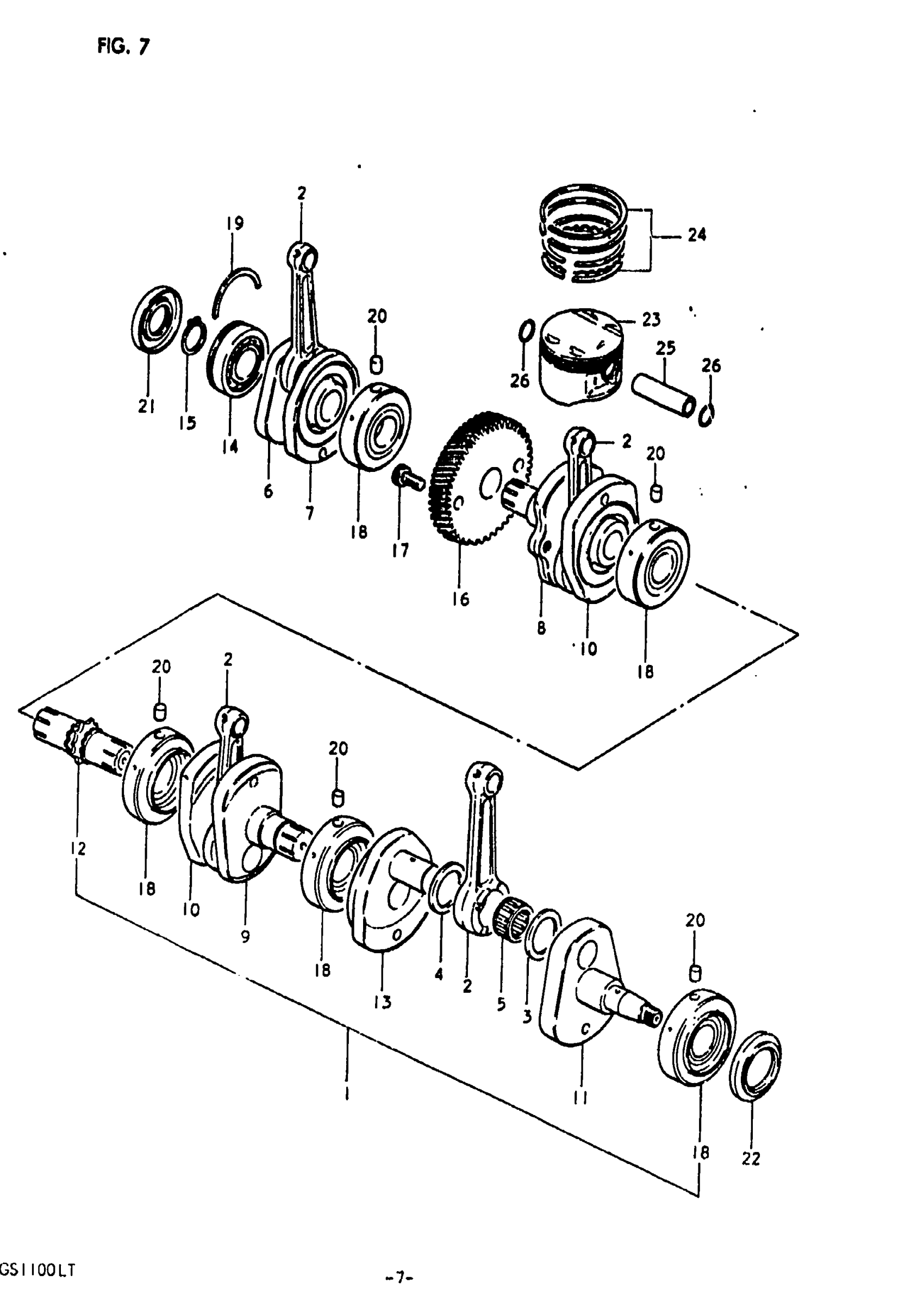

Find the part on the Crankshaft diagram for your 1980 Suzuki GS1100-LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Suzuki GS1100-LT Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 18 This part replaces 12200-49201.

12200-49308

1
Out of stock

2

ROD, CONNECTING This part replaces 12161-49201.

12161-49302

4
Out of stock

3

WASHER

09160-31002

4
Out of stock

4

WASHER

09160-31003

4
Out of stock

5

BEARING

09263-31004

4
Out of stock

6

CRANKSHAFT, RH

12220-49202

1
Out of stock

7

NO DESCRIPTION AVAILABLE This part replaces 12230-49201.

12230-49202

1
Out of stock

8

NO DESCRIPTION AVAILABLE This part replaces 12241-49202.

12241-49203

1
Out of stock

9

NO DESCRIPTION AVAILABLE This part replaces 12271-49202.

12271-49203

1
Out of stock

10

NO DESCRIPTION AVAILABLE This part replaces 12250-49201.

12250-49202

2
Out of stock

11

CRANKSHAFT, LH This part replaces 12261-49203.

12261-49302

1
Out of stock

12

SHAFT, TIMING CHAIN DRIVE (NT

12281-49200

1
Out of stock

13

NO DESCRIPTION AVAILABLE This part replaces 12290-49201.

12290-49202

1
Out of stock

14

BEARING, RH

09262-30033

1
Out of stock

15

CIRCLIP This part replaces 08331-11308.

08331-31309

1
Out of stock

16

NO DESCRIPTION AVAILABLE This part replaces 21111-49002.

21111-49004

1
Out of stock

17

BOLT This part replaces 09106-08006.

07130-0816A

2
Out of stock

18

BEARING This part replaces 09264-32003.

09264-32009

5
Out of stock

19

C RING, BEARING RH

09390-72004

1
Out of stock

20

PIN

04221-07129

5
Out of stock

21

OIL SEAL, RH

09283-30021

1
Out of stock

22

OIL SEAL, STARTER CLUTCH GEAR

09289-48002

1
Out of stock

23

PISTON This part replaces 12111-49201.

12111-49222

4
Out of stock

23

PISTON SET,OS: This part replaces 12111-49201-050.

12100-49221-050

4
Out of stock

23

NO DESCRIPTION AVAILABLE This part replaces 12111-49201-100.

12100-49221-100

4
Out of stock

24

RING SET, PISTON This part replaces 12140-49220.

12140-49270

4
Out of stock

24

RING SET,PISTON This part replaces 12140-49220-050.

12140-49270-050

4
Out of stock

24

RING SET, PISTON (OS:1.0) This part replaces 12140-49220-100.

12140-49221-100

4
Out of stock

25

PIN, PISTON This part replaces 12151-49202.

12151-15501

4
Out of stock

26

CIRCLIP

09381-18002

8
Out of stock
