1980 Suzuki GS1100-LT CAM Chain Diagram

← All diagrams

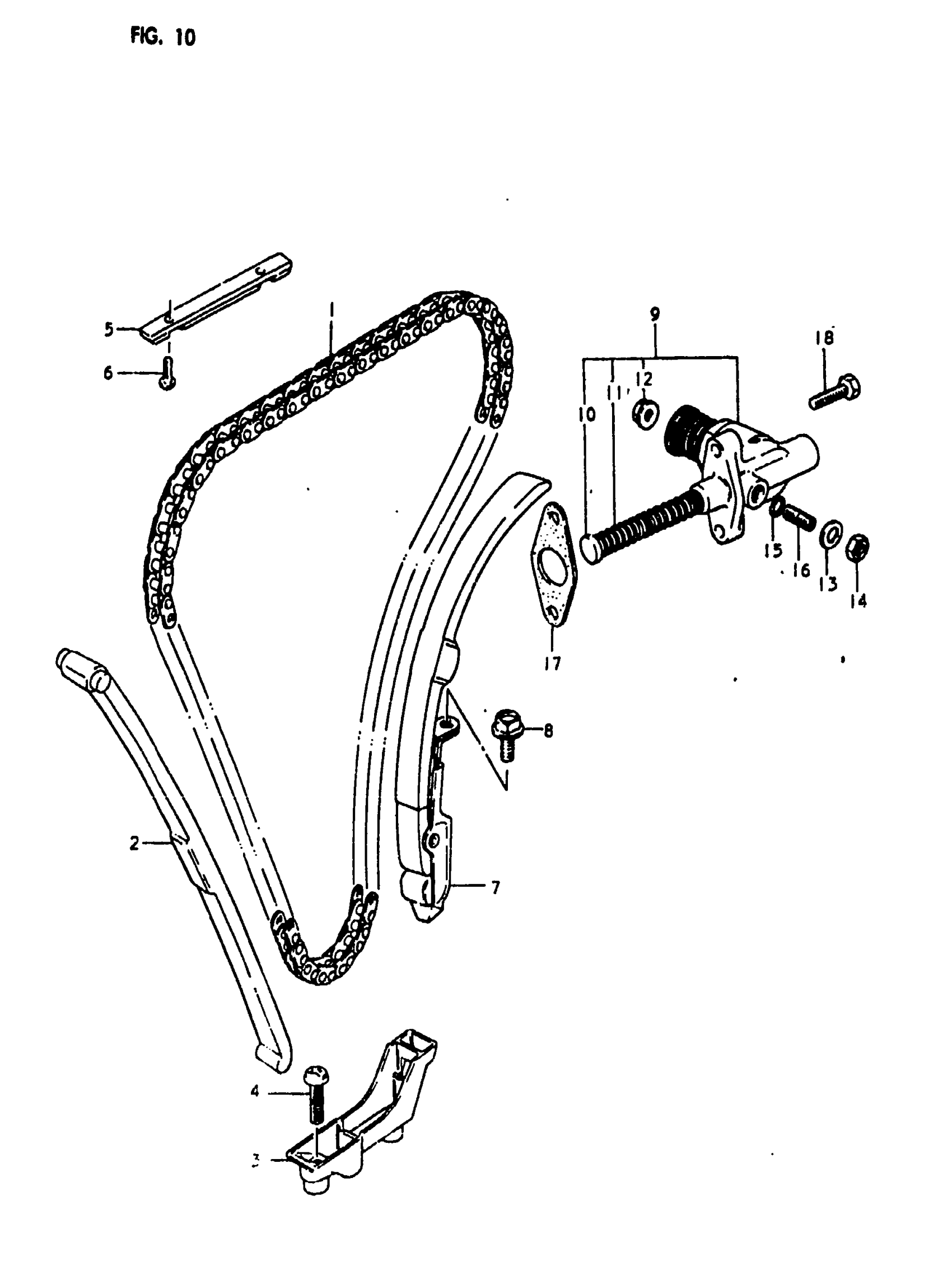

Find the part on the CAM Chain diagram for your 1980 Suzuki GS1100-LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Suzuki GS1100-LT CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

1

$45.15

In stock

3

HOLDER, GUIDE

12776-49000

1
Out of stock

4

SCREW This part replaces 02112-05128.

02112-05127

2
Out of stock

5

GUIDE, CAM CHAIN

12782-47040

1
Out of stock

6

SCREW This part replaces 02112-05128.

02112-05127

2
Out of stock

7

TENSIONER,CAM C This part replaces 12810-49250.

12810-49251

1
Out of stock

8

BOLT M8X16 This part replaces 01517-08168.

01550-08167

1
Out of stock

9

ADJUSTER ASSY,T | Includes Item(s) 10 - 16 This part replaces 12830-47001.

12830-0930V

1
Out of stock

10

PUSH ROD

12833-47001

1
Out of stock

11

SPRING

09440-12017

1
Out of stock

12

SCREW

12838-45001

1
Out of stock

13

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

14

1

$1.93

In stock

16

1

$2.18

In stock

17

GKT,TENSIONER A This part replaces 12837-47000.

12837-47010

1
Out of stock
