1981 Suzuki GS1000G Starter Clutch Diagram

← All diagrams

Find the part on the Starter Clutch diagram for your 1981 Suzuki GS1000G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

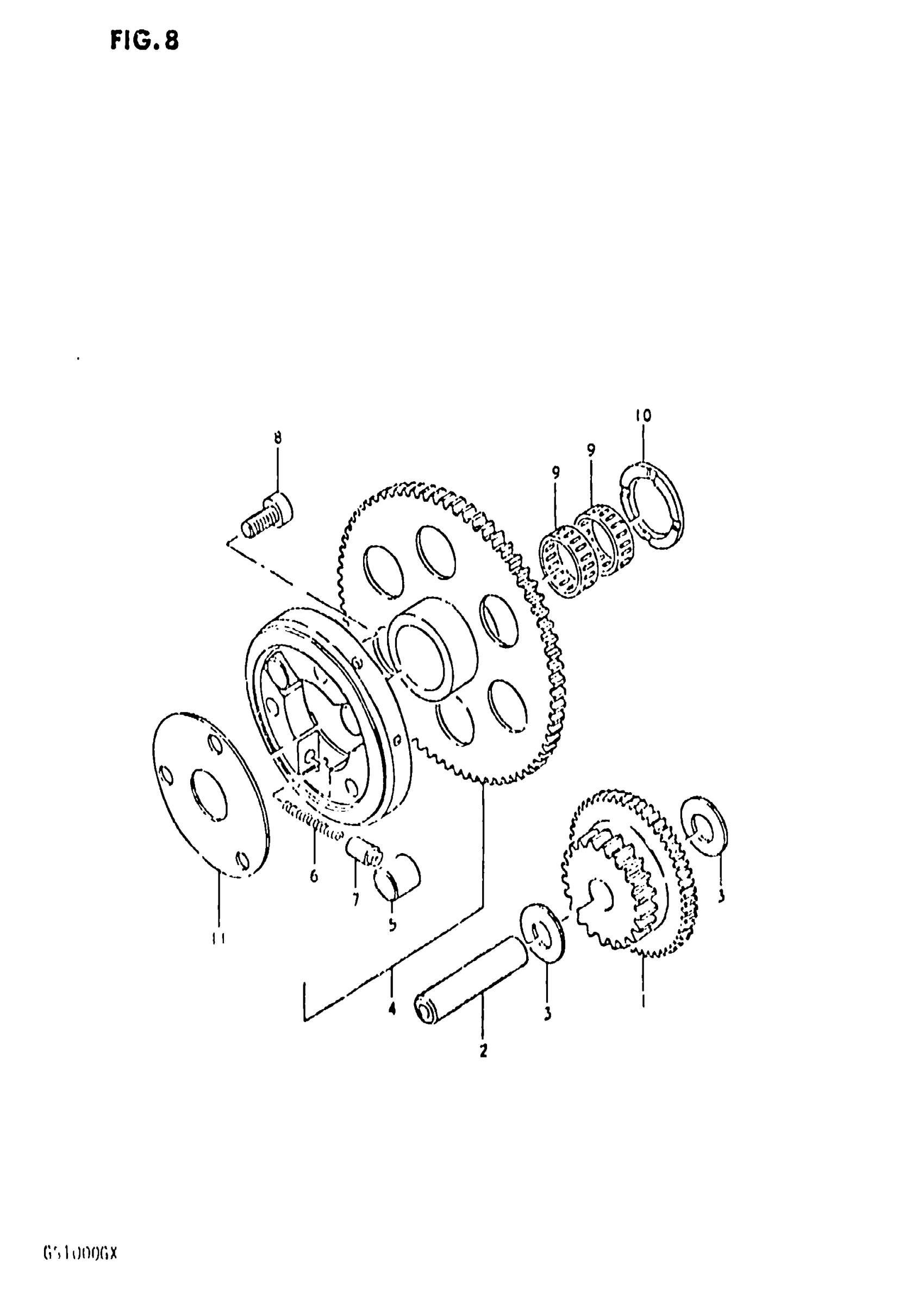

1981 Suzuki GS1000G Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, STARTER IDLE (NT:55/18)

12611-49000

1
Out of stock

2

PIN

09206-13003

1
Out of stock

3

WASHER

09160-13003

2
Out of stock

4

STARTER CLUTCH SET | Includes Item(s) 5 - 7

12600-49830

1
Out of stock

5

ROLLER

09261-14001

3
Out of stock

6

SPRING

09440-04015

3
Out of stock

7

PIECE, PUSH

12633-31000

3
Out of stock

8

3

$3.13

In stock

9

BEARING

09263-25030

2
Out of stock

10

WASHER,25X38X1 This part replaces 09160-25019.

09160-25080

1
Out of stock

11

SHIM

12649-45000

1
Out of stock
