1981 Suzuki GS1000G Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 1981 Suzuki GS1000G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

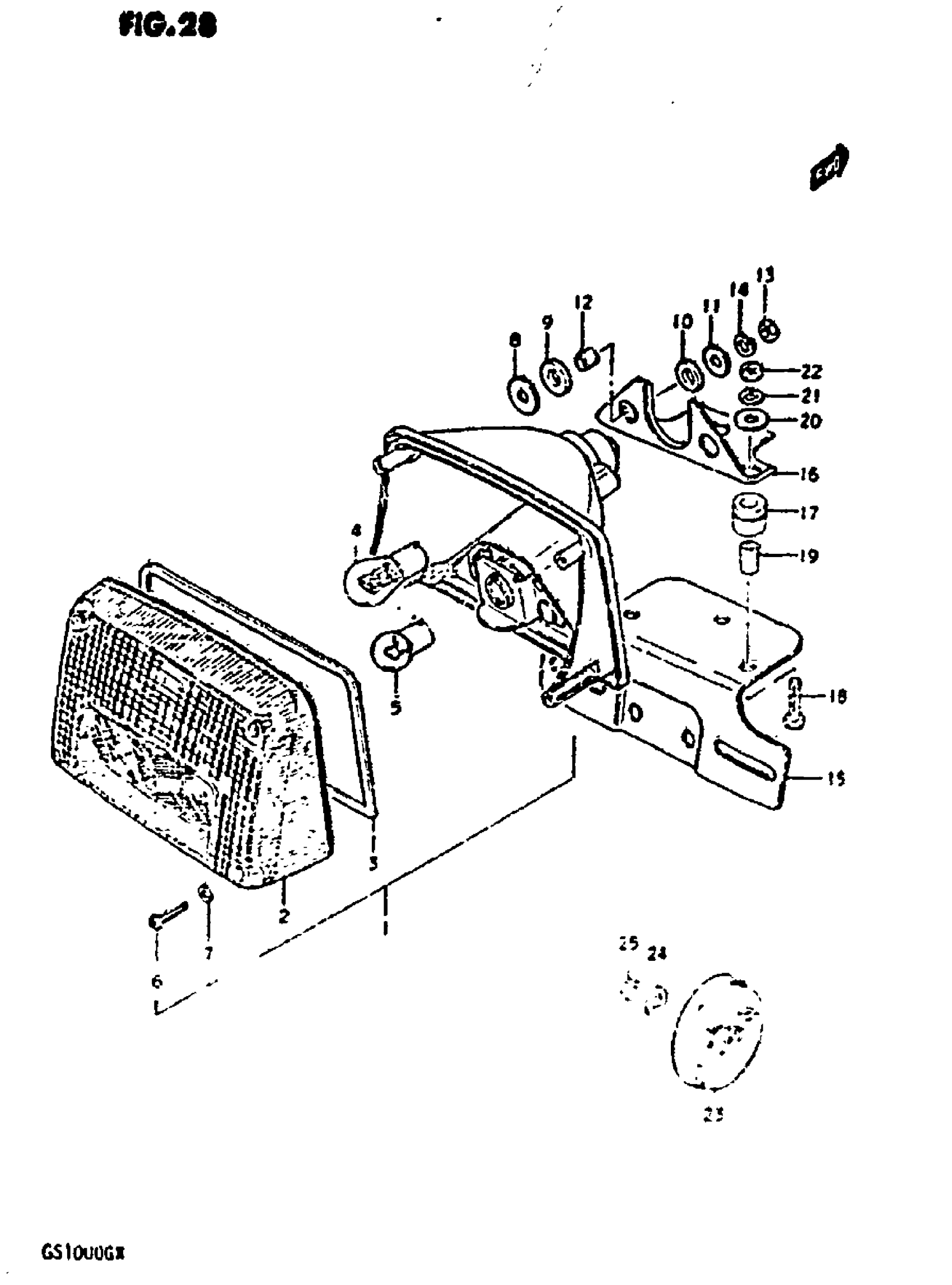

1981 Suzuki GS1000G Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP, REAR COMBINATION | Includes Item(s) 2 - 7 This part replaces 35710-49030.

35710-34310

1
Out of stock

2

LENS

35712-49031

1

$76.43

In stock

3

GASKET

35713-49030

1
Out of stock

4

BULB (12V,32/3CP)

09471-12035

1
Out of stock

5

BULB (12V, BW) This part replaces 09471-12037.

09471-12141

1
Out of stock

6

4

$2.25

In stock

7

GASKET

35627-43010

4

$2.65

In stock

8

2

$1.90

In stock

9

CUSHION

09320-09004

2

$3.30

In stock

10

CUSHION

09320-09003

2

$2.43

In stock

11

2

$1.73

In stock

12

SPACER

09180-06038

2

$2.16

In stock

13

2

$1.82

In stock

14

2

$2.28

In stock

15

PLATE, LICENSE

35927-49031

1
Out of stock

16

BRACKET, LICENSE PLATE

35928-49031

1
Out of stock

17

3

$11.88

In stock

18

3

$2.10

In stock

19

SPACER (6.5X9X15.5) This part replaces 09180-06087.

09180-06269

3
Out of stock

20

3

$1.90

In stock

21

3

$2.28

In stock

22

3

$1.82

In stock

23

REFLEX REFLECTOR, REAR

35970-49030

2
Out of stock

24

2

$2.33

In stock

25

2

$1.97

In stock
