1981 Suzuki GS1000G Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1981 Suzuki GS1000G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

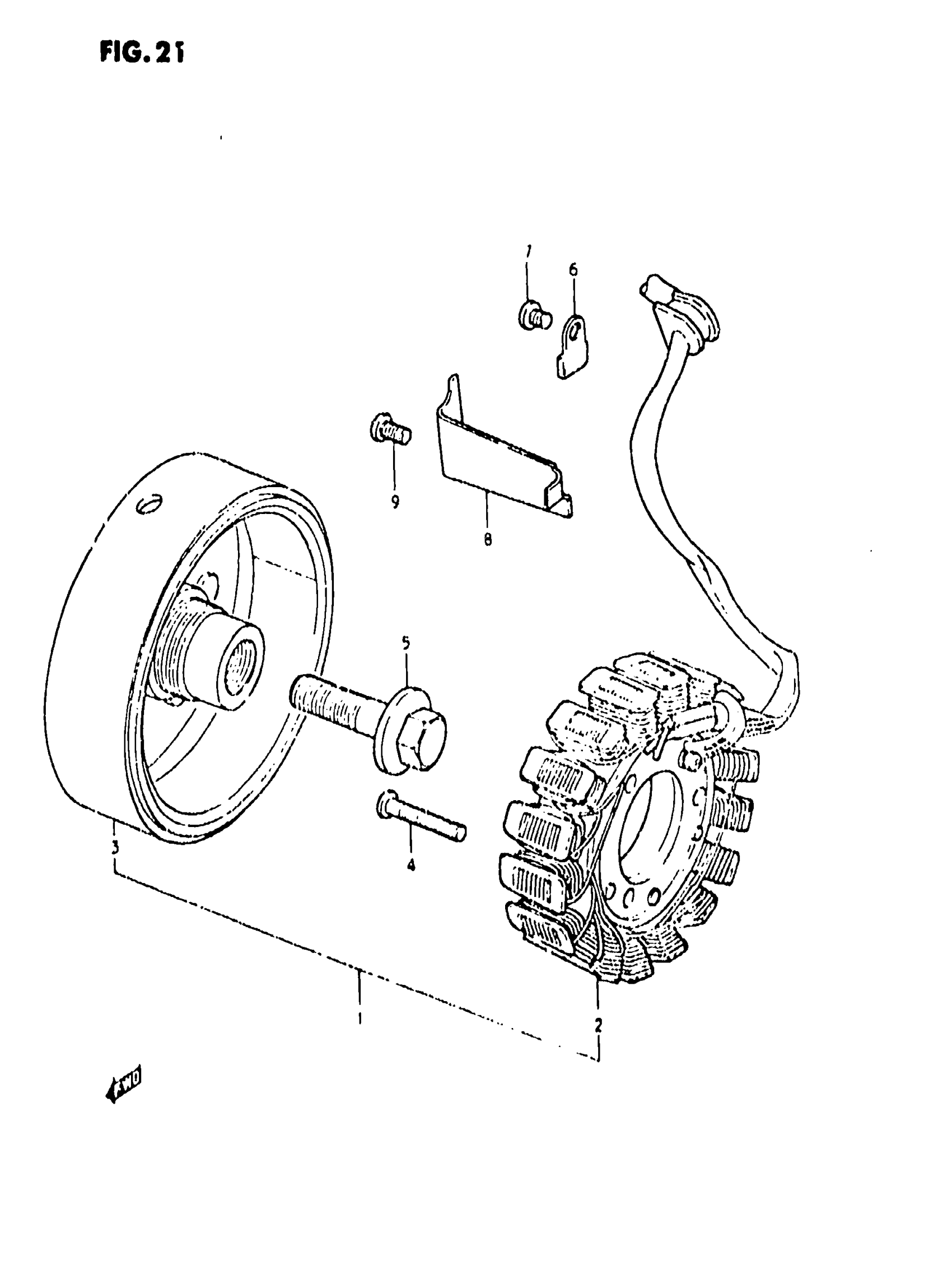

1981 Suzuki GS1000G Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR | Includes Item(s) 2 - 3 This part replaces 31400-49110.

31401-49310

1
Out of stock

2

STATOR This part replaces 31401-49110.

31401-49310

1
Out of stock

3

ROTOR

31402-49110

1
Out of stock

4

3

$2.13

In stock

5

BOLT

09103-12003

1
Out of stock

6

CLAMP

31497-45000

1

$2.17

In stock

7

1

$2.23

In stock

8

CLAMP

31498-45000

1
Out of stock

9

1

$1.55

In stock
