1983 Suzuki GR650 Rear Swinging Arm Diagram

← All diagrams

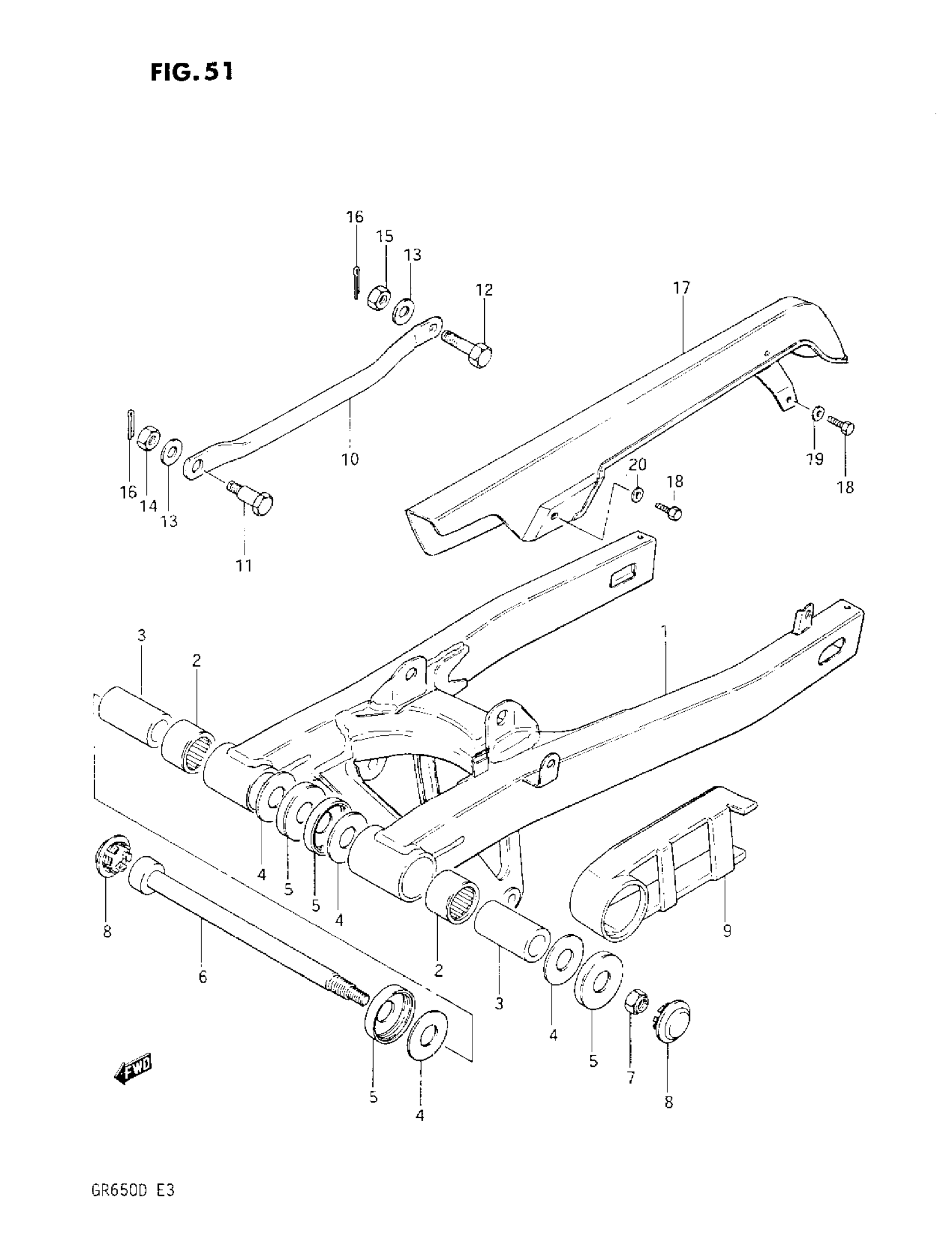

Find the part on the Rear Swinging Arm diagram for your 1983 Suzuki GR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GR650 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM SET

61000-15500-019

1
Out of stock

2

BEARING

09263-25024

2

$25.58

In stock

3

SPACER

61251-31300

2
Out of stock

4

WASHER

08211-16381

4

$3.05

In stock

5

COVER, DUST SEAL

61262-49000

4
Out of stock

6

NO DESCRIPTION AVAILABLE This part replaces 61211-15510.

61211-15511

1
Out of stock

7

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

8

CAP, PIVOT

61222-15510

2
Out of stock

9

BUFFER, CHAIN DEFENSE

61273-15501

1
Out of stock

10

TORQUE LINK, REAR (BLACK)

64311-47400-019

1
Out of stock

11

BOLT, FRONT

09111-10010

1
Out of stock

12

BOLT, REAR

09101-10003

1
Out of stock

13

2

$1.93

In stock

14

1

$2.35

In stock

15

1

$2.35

In stock

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

17

CHAIN CASE

61310-15500-291

1
Out of stock

18

2

$2.97

In stock

19

1

$1.84

In stock

20

WASHER This part replaces 09169-06034.

09169-06071

1
Out of stock
