1983 Suzuki GR650 Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 1983 Suzuki GR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

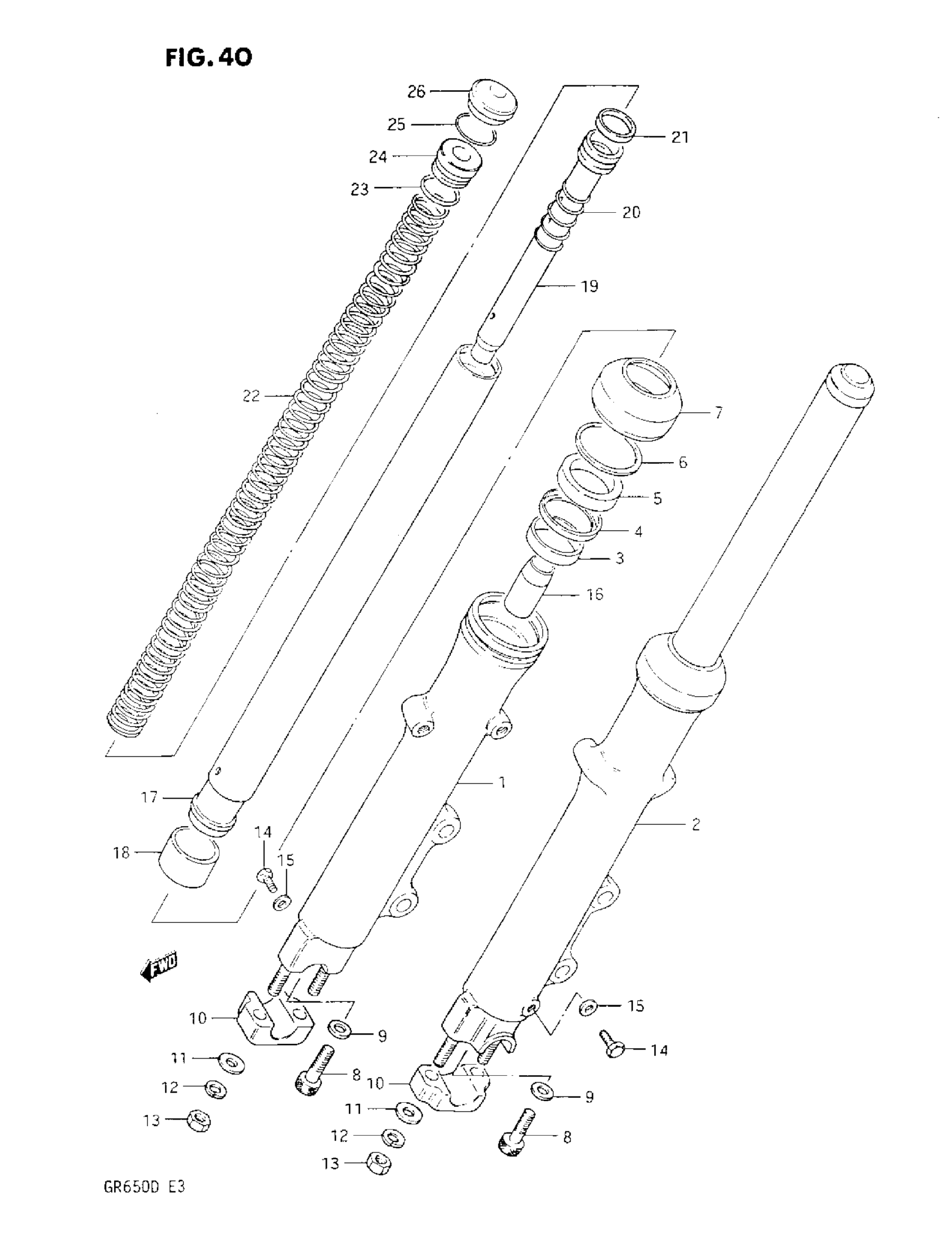

1983 Suzuki GR650 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASS'Y, RH

51103-15510

1
Out of stock

1

DAMPER ASS'Y, LH

51104-15510

1
Out of stock

1

OUTER TUBE, RH

51130-15500

1
Out of stock

2

OUTER TUBE, LH

51140-15500

1
Out of stock

3

BUSH, GUIDE This part replaces 51152-15500.

51152-33300

2
Out of stock

4

SPACER, SEAL This part replaces 51168-45031.

51168-30B00

2
Out of stock

5

SEAL, OIL This part replaces 51153-33300.

51153-19D10

2
Out of stock

6

RING, STOPPER This part replaces 51156-45440.

51156-01A00

2
Out of stock

7

DUST SEAL This part replaces 51571-34200.

51571-20520

2
Out of stock

8

BOLT

51147-48130

2
Out of stock

9

O RING This part replaces 51148-31030.

51148-36011

2
Out of stock

10

HOLDER, AXLE

51132-31030

2
Out of stock

11

WASHER This part replaces 08322-21088.

08322-01087

4
Out of stock

12

4

$2.28

In stock

13

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

4
Out of stock

14

BOLT, PLATE (6X8) This part replaces 01107-06088.

09100-06157

2
Out of stock

15

GASKET

51183-31030

2
Out of stock

16

PIECE, OIL LOCK

51195-45030

2
Out of stock

17

INNER TUBE

51110-15500

2
Out of stock

18

PISTON

51121-45400

2
Out of stock

19

CYLINDER

51146-15500

2
Out of stock

20

SPRING, REBOUND

51177-15500

2
Out of stock

21

RING, PISTON

51196-15500

2
Out of stock

22

SPRING

51171-15510

2
Out of stock

23

O RING This part replaces 51117-31030.

51181-31030

2
Out of stock

24

BOLT, SPRING This part replaces 51172-15510.

51175-47400

2
Out of stock

25

RING, STOPPER

51169-47400

2
Out of stock

26

CAP

51189-47400

2
Out of stock
