1983 Suzuki GR650 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1983 Suzuki GR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

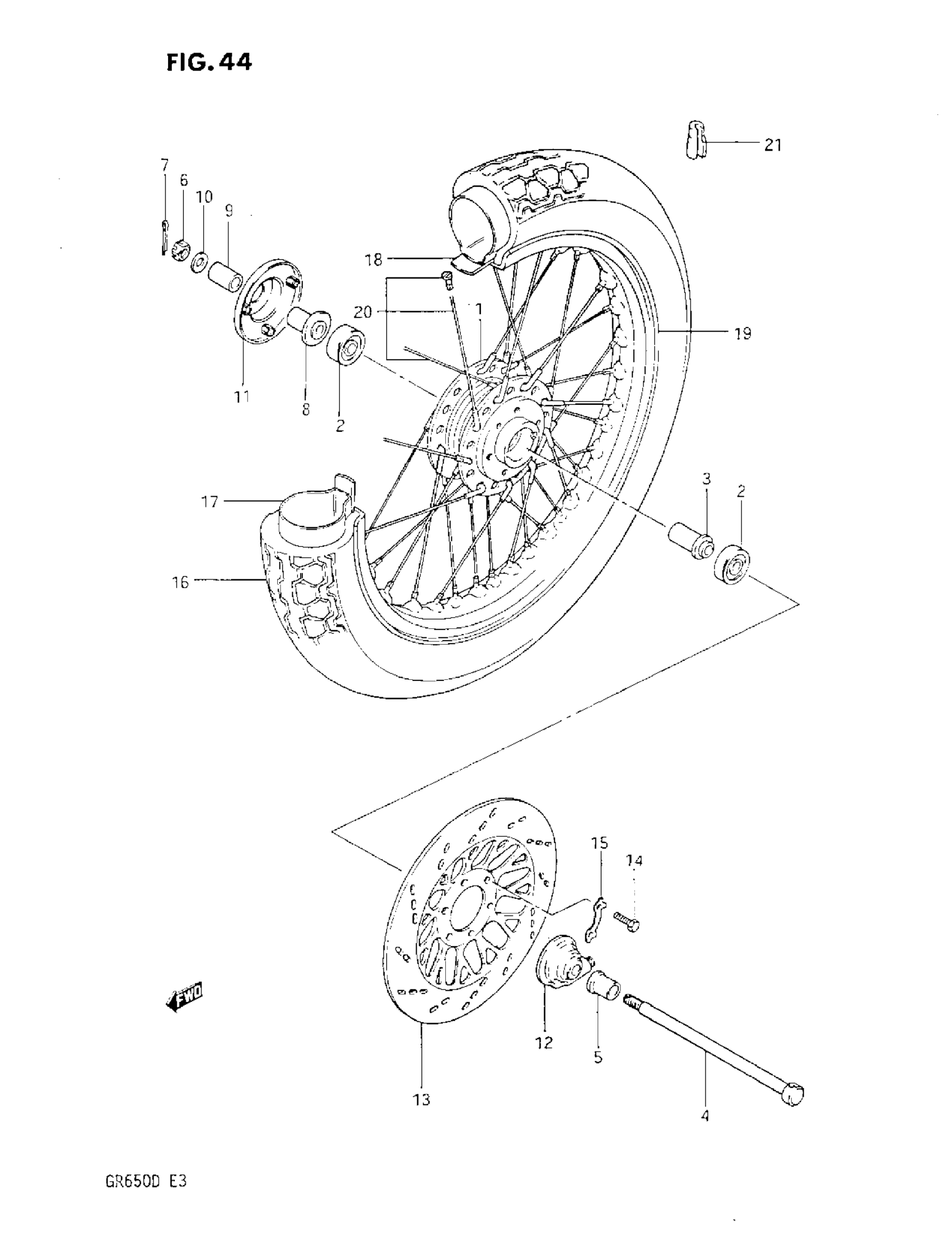

1983 Suzuki GR650 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 54111-47001.

54111-47002

1
Out of stock

2

BEARING This part replaces 08123-63027.

08123-6302B

2
Out of stock

3

SPACER

54730-18400

1
Out of stock

4

AXLE, FRONT

54711-09300

1
Out of stock

5

SPACER, AXLE, LH

54741-15500

1
Out of stock

6

NUT This part replaces 08314-31128.

08314-3112A

1
Out of stock

7

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

8

SPACER, BEARING

54740-18402

1
Out of stock

9

SPACER, AXLE, RH

54741-15510

1
Out of stock

10

WASHER This part replaces 08322-21128.

08322-01127

1
Out of stock

11

COVER, R H

54871-45000

1
Out of stock

12

BOX ASS'Y, SPEEDOMETER GEAR

54600-15500

1
Out of stock

13

DISK, FRONT BRAKE

59221-45250

1
Out of stock

14

BOLT

09100-08140

6
Out of stock

15

WASHER

09169-08016

3
Out of stock

16

TIRE (100190119) | IRC

55100-15515

1
Out of stock

16

TIRE (100190119) | BS This part replaces 55100-15535.

55100-15515

1
Out of stock

17

TUBE This part replaces 55200-15010.

55200-44611

1
Out of stock

18

PROTECTOR, WHEEL INNER TUBE FRONT This part replaces 55261-15010.

55261-15020

1
Out of stock

19

RIM (1.85X19 )

55311-15500

1
Out of stock

20

SPOKE SET

55320-15500

1
Out of stock

21

BALANCER WHEEL (15G) | 0-2, UN This part replaces 55411-11000.

55411-26G00

1
Out of stock

21

BALANCER WHEEL (30G) | 0-2, UN This part replaces 55412-11000.

55413-41F00

1
Out of stock
