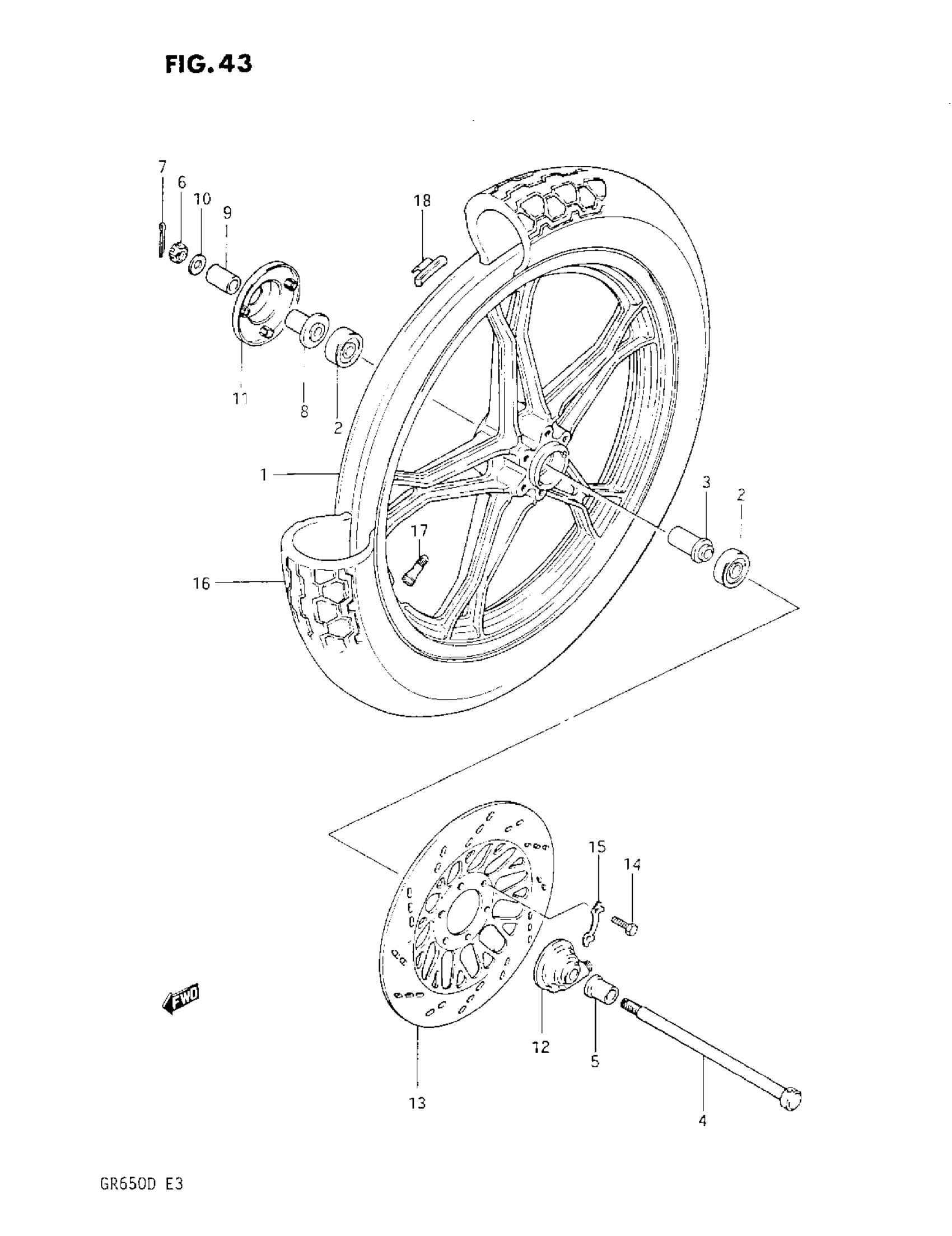

Suzuki GR650 (1983) FRONT WHEEL (GR650D) Diagram

#

Description
Price

1

WHEEL, FRONT (19XMT1.85) | BLACK

54111-45350-291

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$20.52

3

SPACER

54730-18400

$23.08

4

AXLE, FRONT

54711-09300

Unavailable

5

SPACER, AXLE, LH

54741-15500

Unavailable

6

NUT This part replaces 08314-31128.

08314-3112A

$2.42

7

PIN This part replaces 04111-30308.

04111-3030A

$1.37

8

SPACER, BEARING, RH

54740-18402

Unavailable

9

SPACER, AXLE, RH

54741-15510

Unavailable

10

WASHER This part replaces 08322-21128.

08322-01127

$1.86

11

COVER, RH

54871-45000

$10.15

12

BOX ASS'Y, SPEEDOMETER GEAR

54600-15500

Unavailable

13

DISK, FRONT BRAKE

59221-45250

Unavailable

14

BOLT

09100-08140

$2.08

15

WASHER

09169-08016

$2.38

16

TIRE (100190-19) | IRC

55100-15515

Unavailable

16

TIRE (100190119) | BS This part replaces 55100-15535.

55100-15515

Unavailable

17

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$8.71

18

BALANCER, WHEEL NO.2 | 0-3, UN This part replaces 55411-45100.

55412-17G00

$5.14

18

BALANCER (30G) | 0-3, UN

55412-45100

Unavailable

18

BALANCER (10G) | 0-3, UN This part replaces 55413-45100.

55411-00A00

$1.35
