1983 Kawasaki GPZ Swing Arm Diagram

← All diagrams

Find the part on the Swing Arm diagram for your 1983 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

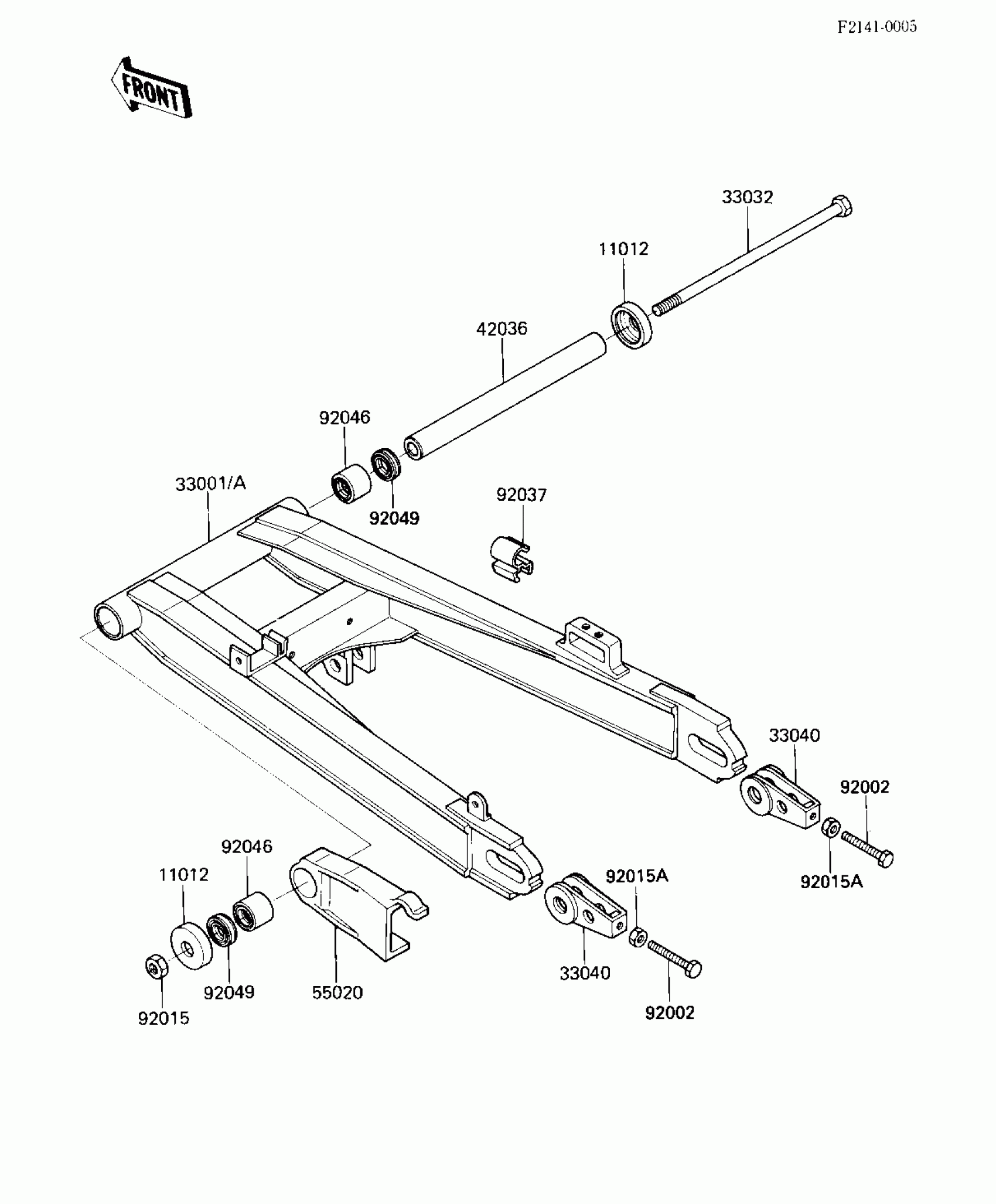

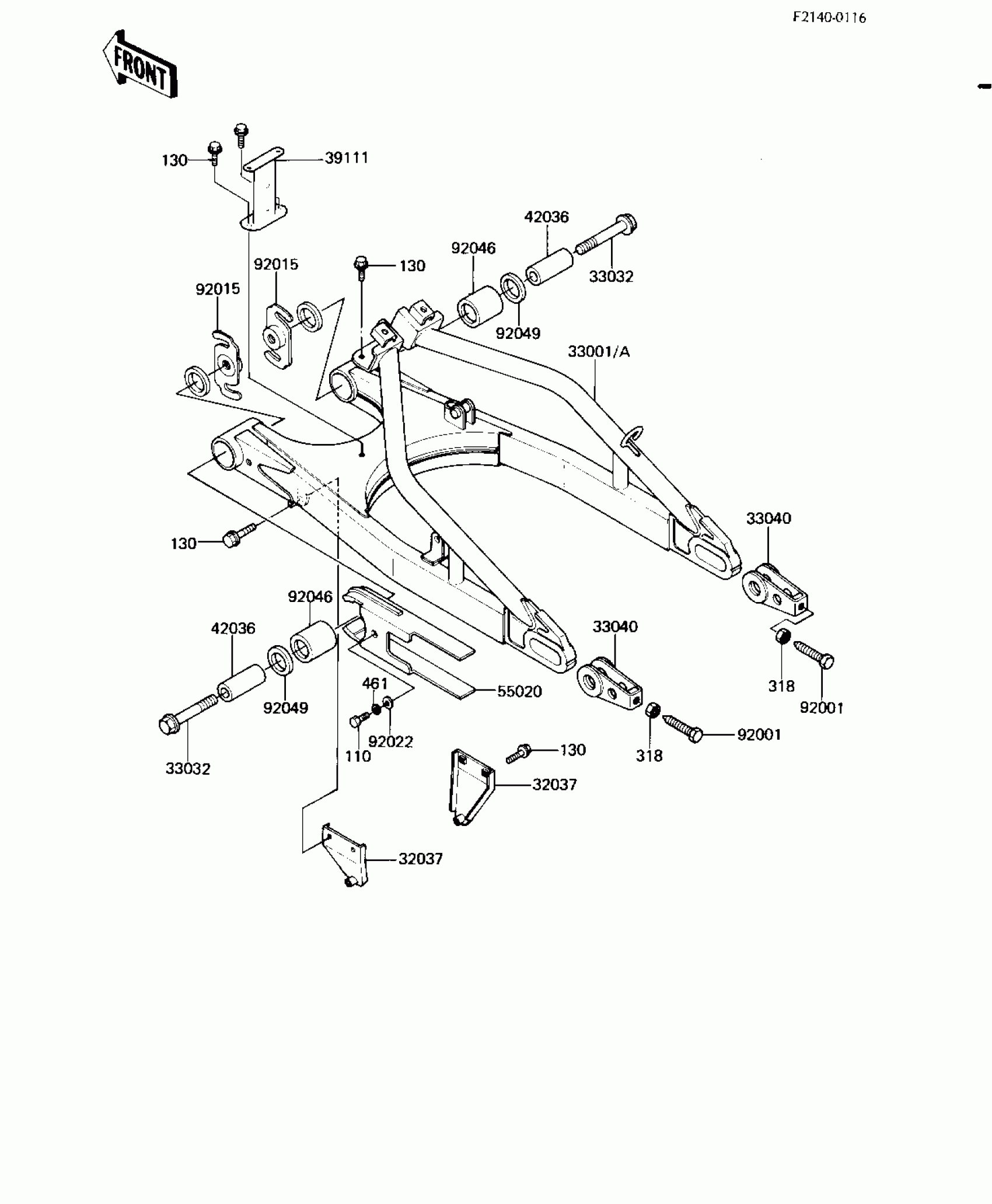

1983 Kawasaki GPZ Swing Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32037

BRACKET-SHOCKABSORBER

32037-1180

1
Out of stock

33001

ARM-COMP-SWING,F.RED

33001-1126-B1

1

$411.46

In stock

33032

1

$79.79

In stock

33040

ADJUSTER-CHAIN

33040-1020

1
Out of stock

39111

ROD-TIE

39111-1014

1

$50.20

In stock

42036

SLEEVE,16.1X25X53.4

42036-1057

1
Out of stock

55020

GUARD

55020-1061

1

$16.90

In stock

92001

BOLT,8X50

92001-1399

1

$7.52

In stock

92015

NUT

92015-1184

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92046

1

$23.73

In stock

92049

SEAL-OIL,MH25334

92049-1060

1
Out of stock

110

BOLT-UPSET 6X14

112B0614

1
Out of stock

130

BOLT-FLANGED,8X14

130G0814

1
Out of stock

318

1

$0.63

In stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
