1983 Kawasaki GPZ Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1983 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

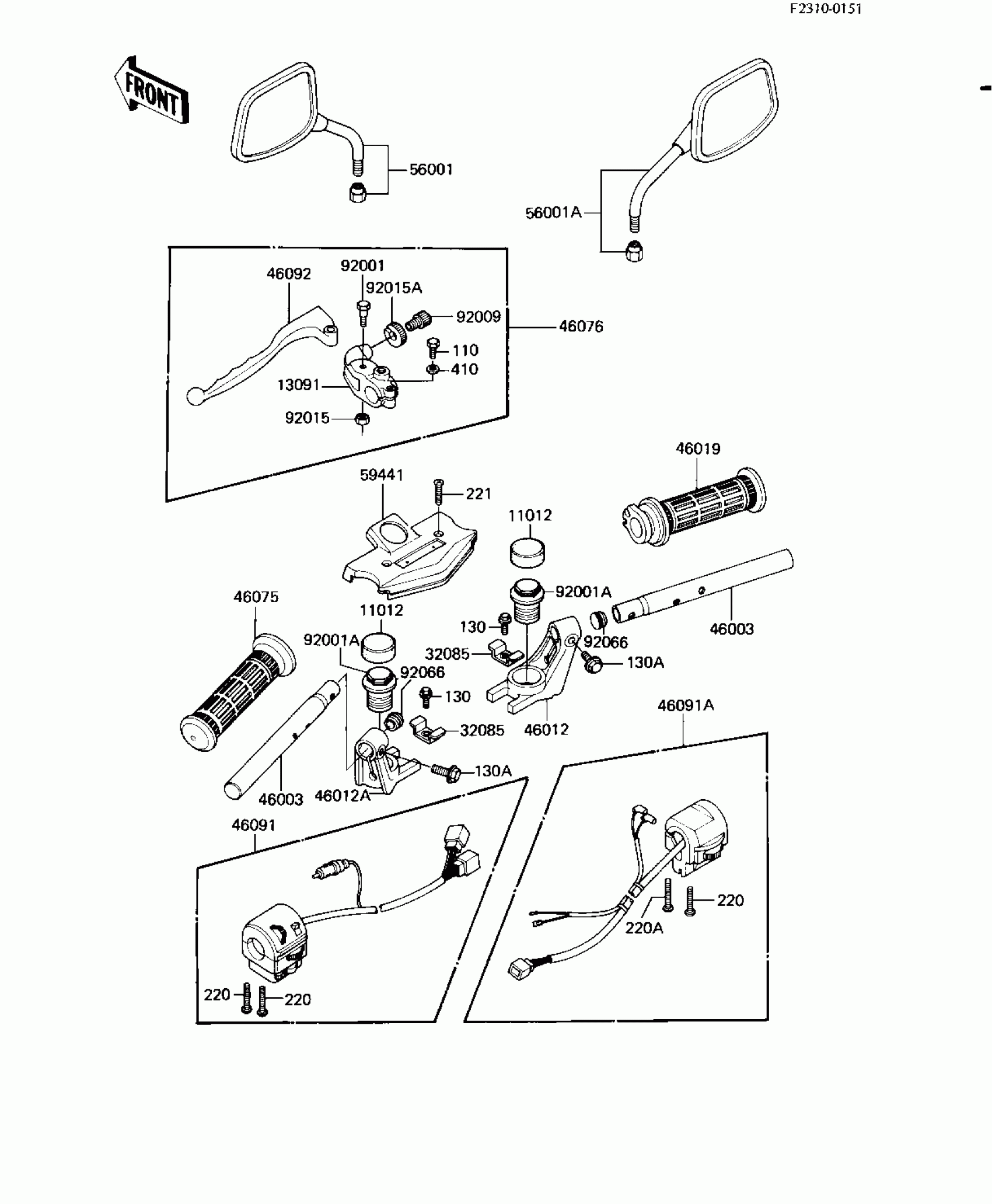

1983 Kawasaki GPZ Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SWING ARM

11012-1069

1
Out of stock

13091

1

$51.67

In stock

32085

STOPPER

32085-1092

1
Out of stock

46003

HANDLEBAR

46003-1101

1
Out of stock

46012

HOLDER-HANDLE,RH

46012-1016

1

$383.70

In stock

46012A

HOLDER-HANDLE,LH

46012-1017

1

$383.70

In stock

46019

GRIP-ASSY,THROTTLE

46019-1015

1

$46.19

In stock

46075

GRIP,LH

46075-1022

1

$13.34

In stock

46076

LEVER-ASSY-GRIP,CLUTC

46076-1026

1
Out of stock

46091

1

$163.00

In stock

46091A

HOUSING-ASSY-CONTROL

46091-1207

1
Out of stock

46092

LEVER-GRIP,CLUTCH

46092-1024

1
Out of stock

56001

MIRROR-ASSY,LH

56001-1348

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-1349

1
Out of stock

59441

COVER-HANDLE

59441-1005

1
Out of stock

92001

1

$6.73

In stock

92001A

BOLT,32X38

92001-1665

1

$58.69

In stock

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

1
Out of stock

92066

PLUG

92066-1093

1

$4.58

In stock

110

BOLT,6X22,BLACK

110C0622

1
Out of stock

130

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

130A

BOLT-FLANGED,8X25

130S0825

1
Out of stock

220

SCREW-PAN-CROS

220B0535

1

$2.94

In stock

220A

SCREW-PAN-CROS

220B0540

1
Out of stock

221

SCREW-CSK

221C0430

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

1
Out of stock
