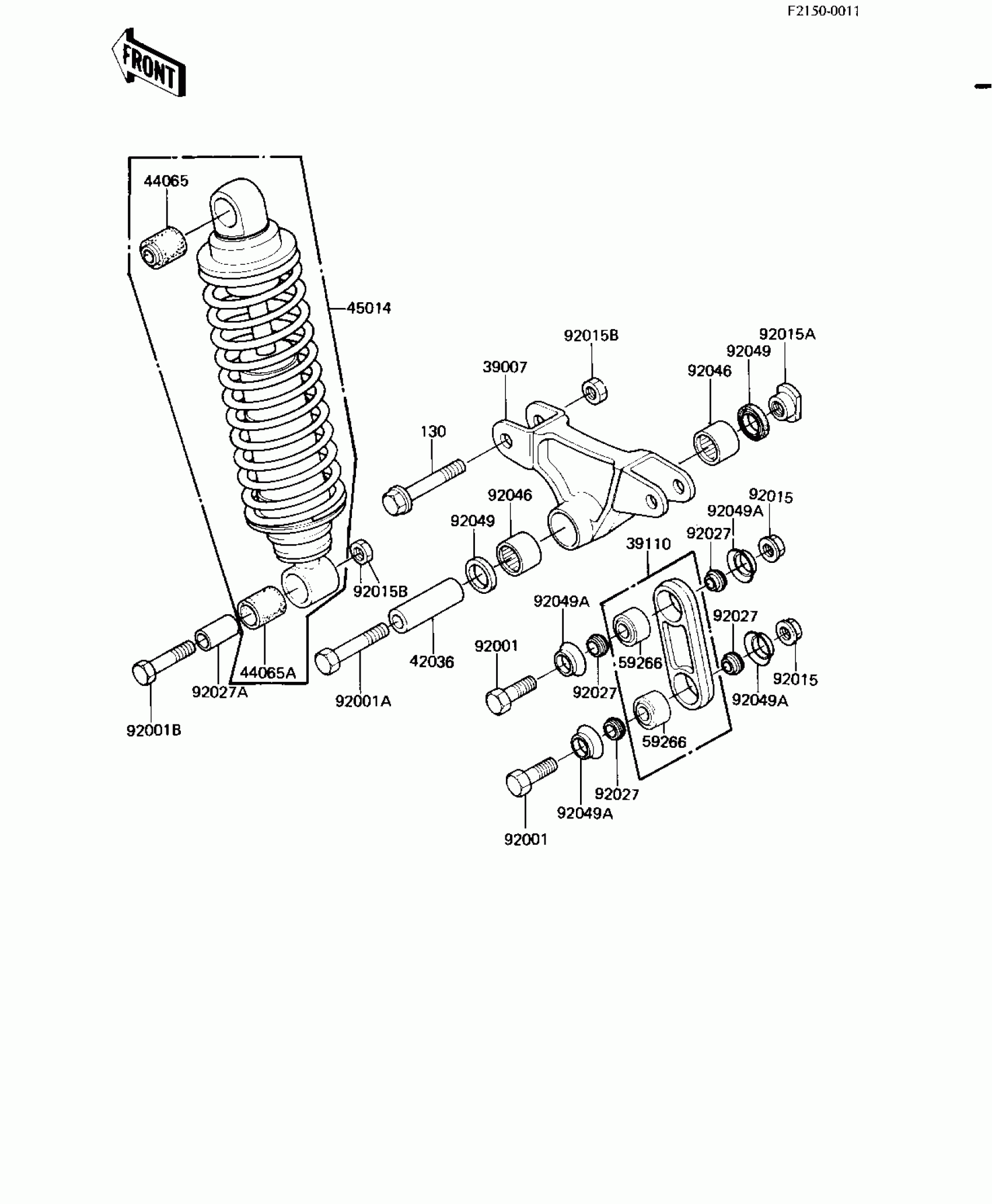

Kawasaki GPz REAR SUSPENSION/SHOCK ABSORBER Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-1013

$156.42

39110

ROD-ASSY-TIE

39110-1051

$174.64

42036

SLEEVE,14.X22X61

42036-1058

Unavailable

44065

BUSHING,SHOCKABSORBER

44065-1017

$36.05

44065A

BUSHING-FRONT FORK

44065-1018

$11.24

45014

SHOCK ABSBR RR

45014-1160

$2,035.81

59266

JOINT-BALL

59266-1051

Unavailable

92001

BOLT,FLANGED,10X44

92001-1299

Unavailable

92001A

BOLT,14X100

92001-1504

$13.86

92001B

BOLT,12X88

92001-1505

$14.34

92015

NUT,FLANGED,10MM

92015-1415

$3.57

92015A

NUT,14MM

92015-1185

$16.00

92015B

NUT-LOCK,12MM

92019-009

$7.20

92027

COLLAR,L=5.5

92027-1392

Unavailable

92027A

COLLAR

92027-1436

$16.49

92046

BEARING-NEEDLE,F-2220

92046-1162

$17.18

92049

SEAL-OIL,MHA22284

92049-1059

$8.74

92049A

SEAL-OIL

92049-1083

$22.00

130

BOLT-FLANGED,12X55

130G1255A

Unavailable
