1983 Kawasaki GPZ Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1983 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

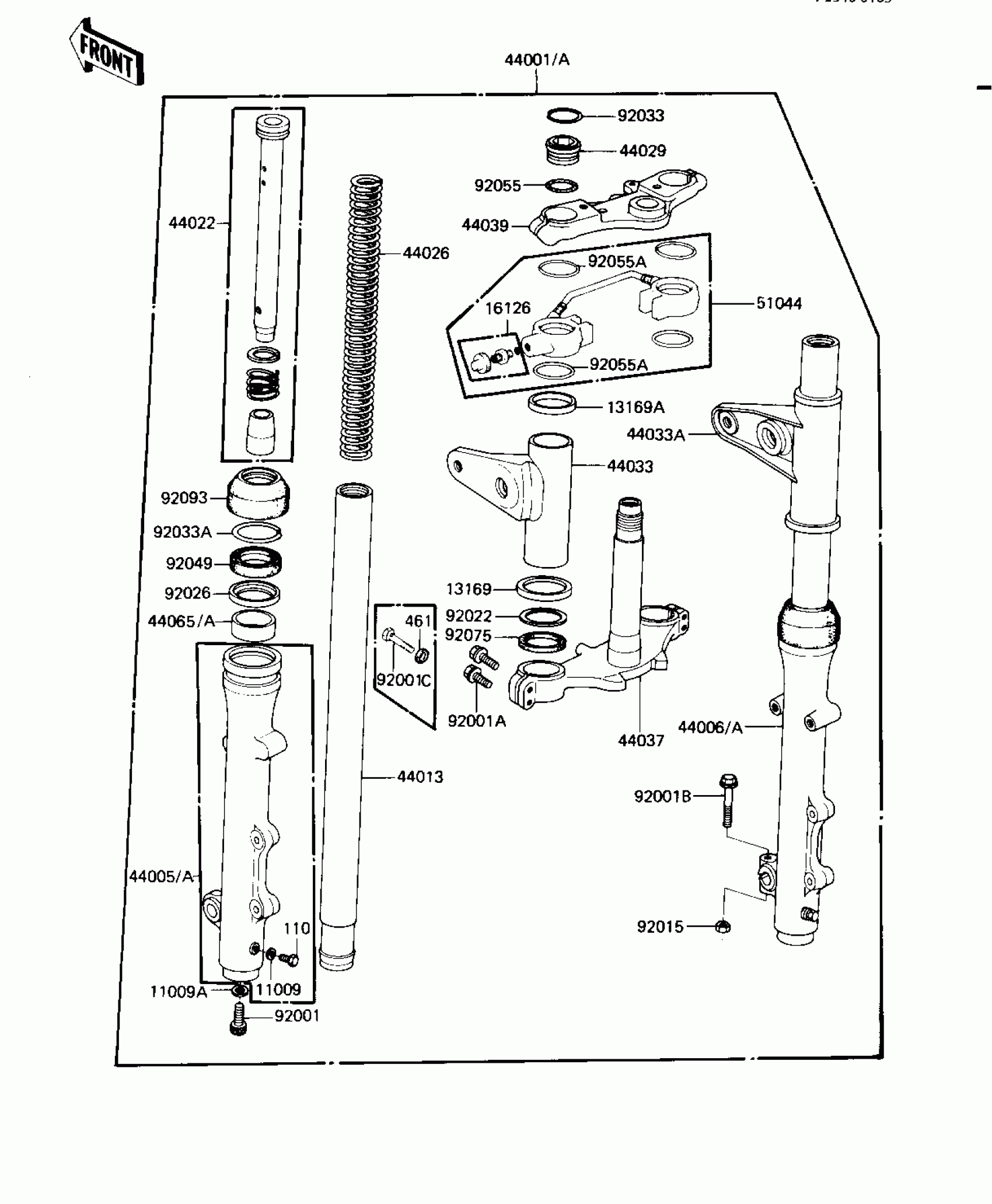

1983 Kawasaki GPZ Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,DRAIN PLUG

44045-047

1

$7.42

In stock

11009A

1

$4.88

In stock

13169

PLATE,FORK COVER LWR

13169-1840

1
Out of stock

13169A

PLATE,FORK COVER,UPP

13169-1841

1
Out of stock

16126

VALVE,AIR

16126-1043

1

$40.86

In stock

44001A

FORK FRONT

44001-1431

1

$808.72

In stock

44005A

1

$216.97

In stock

44006A

1

$287.67

In stock

44013

PIPE-FORK INNER

44013-1087

1

$442.90

In stock

44022

CYLINDER-FORK

44022-1077

1

$92.80

In stock

44026

1

$117.91

In stock

44029

SEAT,FORK SPRING

44029-1012

1

$19.31

In stock

44033

COVER-FORK,LH

44033-1091

1
Out of stock

44033A

COVER-FORK,RH

44033-1092

1
Out of stock

44037

1

$636.13

In stock

44039

HOLDER-FORK UPPER

44039-1055

1

$339.50

In stock

44065A

BUSHING-FRONT FORK

44065-1020

1

$18.19

In stock

51044

TUBE-ASSY

51044-1017

1

$298.31

In stock

92001

BOLT,FORK CYLINDER

44041-078

1

$9.56

In stock

92001B

BOLT

92001-1571

1

$5.20

In stock

92001C

BOLT

92001-1745

1

$4.44

In stock

92015

NUT

92015-1198

1
Out of stock

92022

WASHER,FORK COVER

92022-1111

1
Out of stock

92026

SPACER

92026-1108

1

$18.31

In stock

92033

CIRCLIP,FORK TOP

92033-1023

1

$4.32

In stock

92033A

RING,SNAP

92033-1055

1

$5.01

In stock

92049

SEAL-OIL

92049-1089

1
Out of stock

92055

"O" RING,SPRING SEAT

92055-1060

1
Out of stock

92055A

RING-O

92055-1129

1

$4.16

In stock

92075

DAMPER RUBBER,FORK

92075-1137

1

$8.51

In stock

92093

SEAL

92093-1075

1
Out of stock

110

BOLT HEX HEAD 6X8

110B0608

1
Out of stock

461

WASHER-SPRING,8MM,BLACK

461K0800

1
Out of stock
