1982 Kawasaki GPZ Stands Diagram

← All diagrams

Find the part on the Stands diagram for your 1982 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

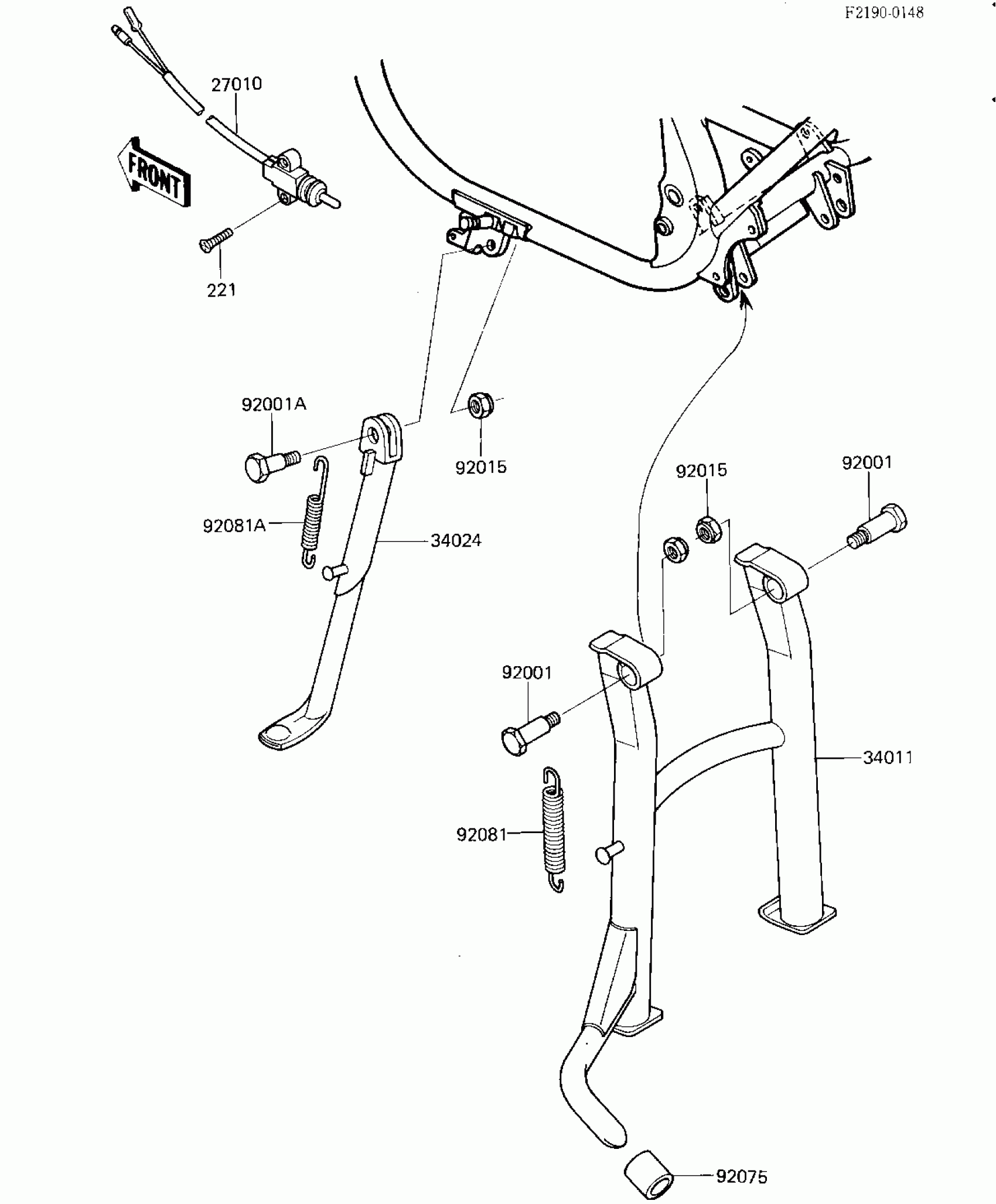

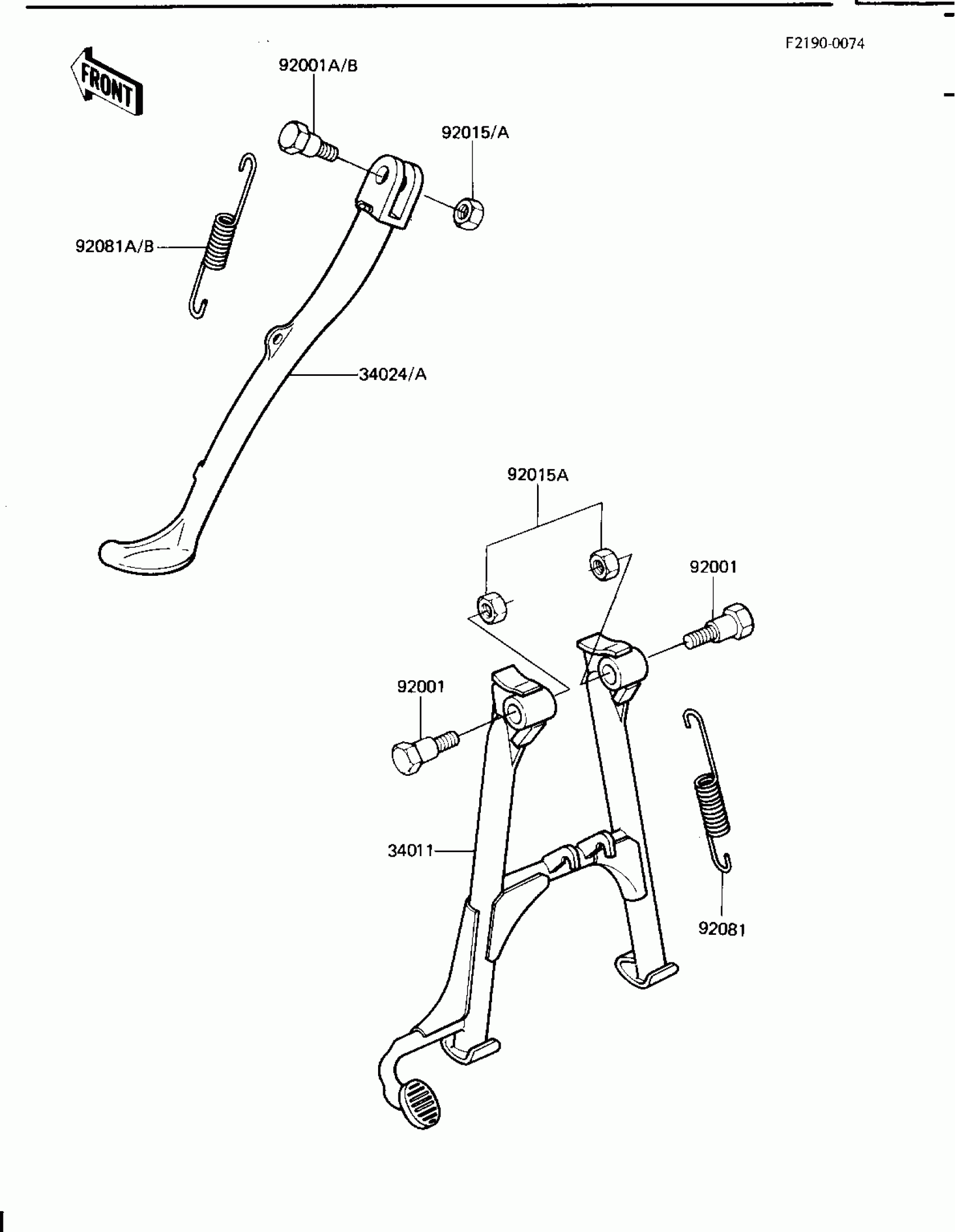

1982 Kawasaki GPZ Stands Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34011

STAND-MAIN

34011-1032

1

$193.95

In stock

34024A

STAND-SIDE

34024-1097

1

$96.86

In stock

92001

BOLT,CENTER STAND

92001-1214

1

$9.12

In stock

92001A

1

$12.47

In stock

92015

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92015A

NUT,LOCK,10MM

92019-021

1

$4.83

In stock

92081

SPRING,CNT STAND

34023-012

1
Out of stock

92081B

SPRING,SIDE STAND

92081-1727

1

$10.19

In stock
