1982 Kawasaki GPZ Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1982 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

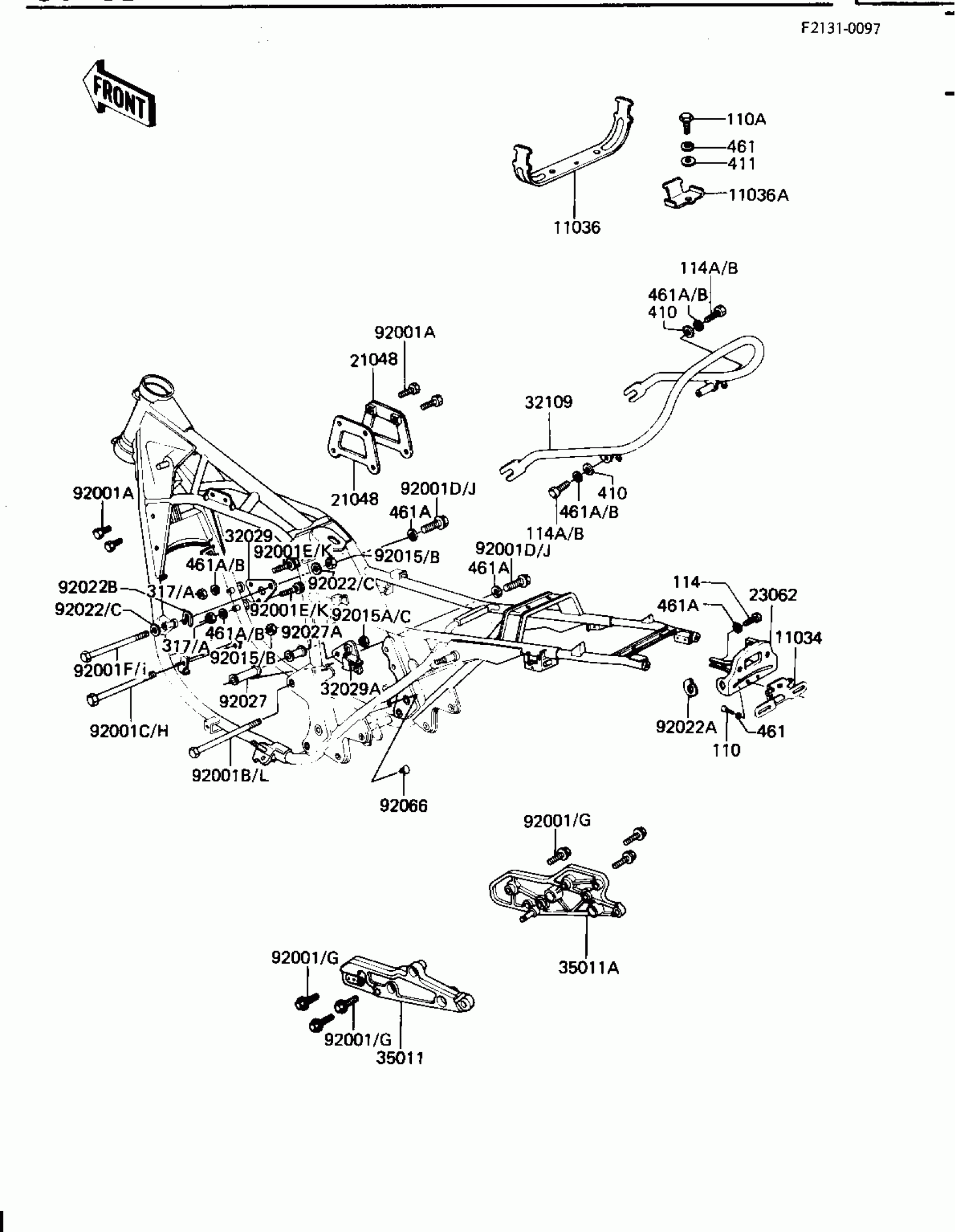

1982 Kawasaki GPZ Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11034

BRACKET

11034-1922

1
Out of stock

11036

BRACKET-A,CNTRL UNIT

11036-1065

1
Out of stock

11036A

BRACKET-A,CNTRL UNIT

11036-1066

1
Out of stock

21048

PLATE-COIL

21048-1001

1

$19.49

In stock

23062

BRACKET-COMP,TL LAMP

23062-1032

1
Out of stock

32029

BRACKET-ENGINE,FR,UPP

32029-1142

1
Out of stock

32029A

1

$18.47

In stock

32109

GRIP-FRAME

32109-1029

1
Out of stock

35011

STAY,MUFFLER,LH

35011-1207

1

$381.35

In stock

35011A

STAY,MUFFLER,RH

35011-1208

1

$396.24

In stock

92001A

BOLT,6X10

92001-137

1

$5.66

In stock

92001G

BOLT,FLANGED,8X28,BLACK

92001-1508

1
Out of stock

92001H

BOLT,FLANGED,10X155,BLACK

92001-1620

1
Out of stock

92001I

1

$35.17

In stock

92001J

BOLT,FLANGED,8X45

92001-1613

1

$4.61

In stock

92001K

BOLT,FLANGED,8X65,BLACK

92001-1616

1
Out of stock

92001L

1

$40.39

In stock

92015

NUT,LOCK,10MM,BLACK

92015-1189

1
Out of stock

92015A

NUT,LOCK,12MM,BLACK

92015-1190

1
Out of stock

92015B

NUT,10MM

92015-1429

1

$5.45

In stock

92015C

NUT-LOCK,12MM

92019-009

1

$7.20

In stock

92022

WASHER,10.5X22X4.5

92022-1022

1

$4.61

In stock

92022A

1

$12.42

In stock

92022B

WASHER,U FORMED

92022-1259

1
Out of stock

92022C

WASHER,10.5X22X4.5

92022-1022

1

$4.61

In stock

92027

COLLAR,13X25X54

92027-1310

1

$42.33

In stock

92027A

COLLAR,13X25X29.5

92027-1311

1

$29.99

In stock

92066

1

$3.35

In stock

110

BOLT-UPSET,6X12

112G0612

1
Out of stock

110A

BOLT-UPSET 6X14

112B0614

1
Out of stock

114

BOLT-SMALL-UPSET,8X16

115G0816

1
Out of stock

114B

BOLT-SMALL,8X70,BLACK

115C0870

1
Out of stock

317A

1

$0.73

In stock

410

WASHER PLAIN 8MM

410B0800

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

461A

WASHER SPRING 8MM

461F0800

1
Out of stock

461B

WASHER-SPRING,8MM,BLACK

461K0800

1
Out of stock
