1982 Kawasaki GPZ Owner Tools Diagram

← All diagrams

Find the part on the Owner Tools diagram for your 1982 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

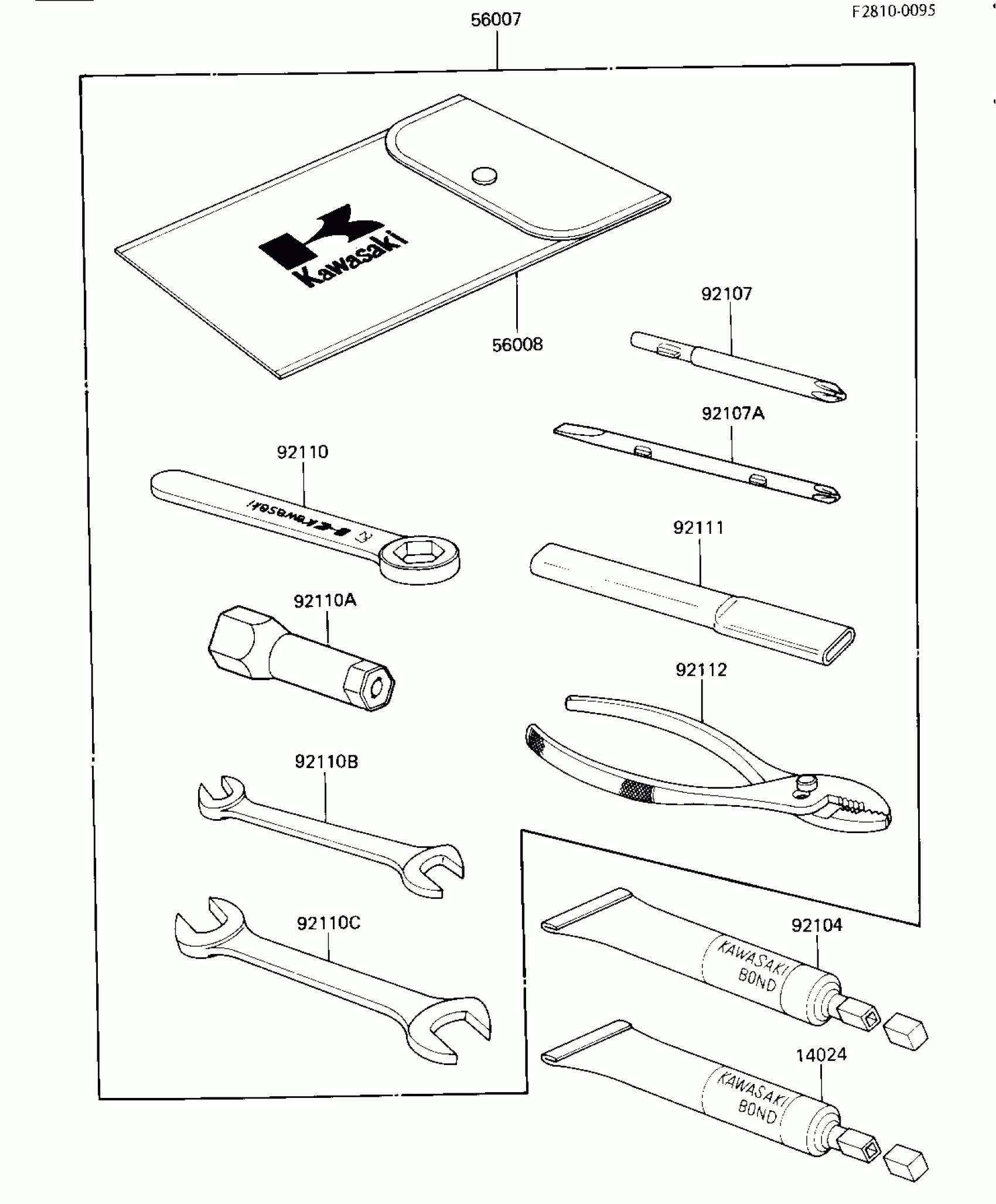

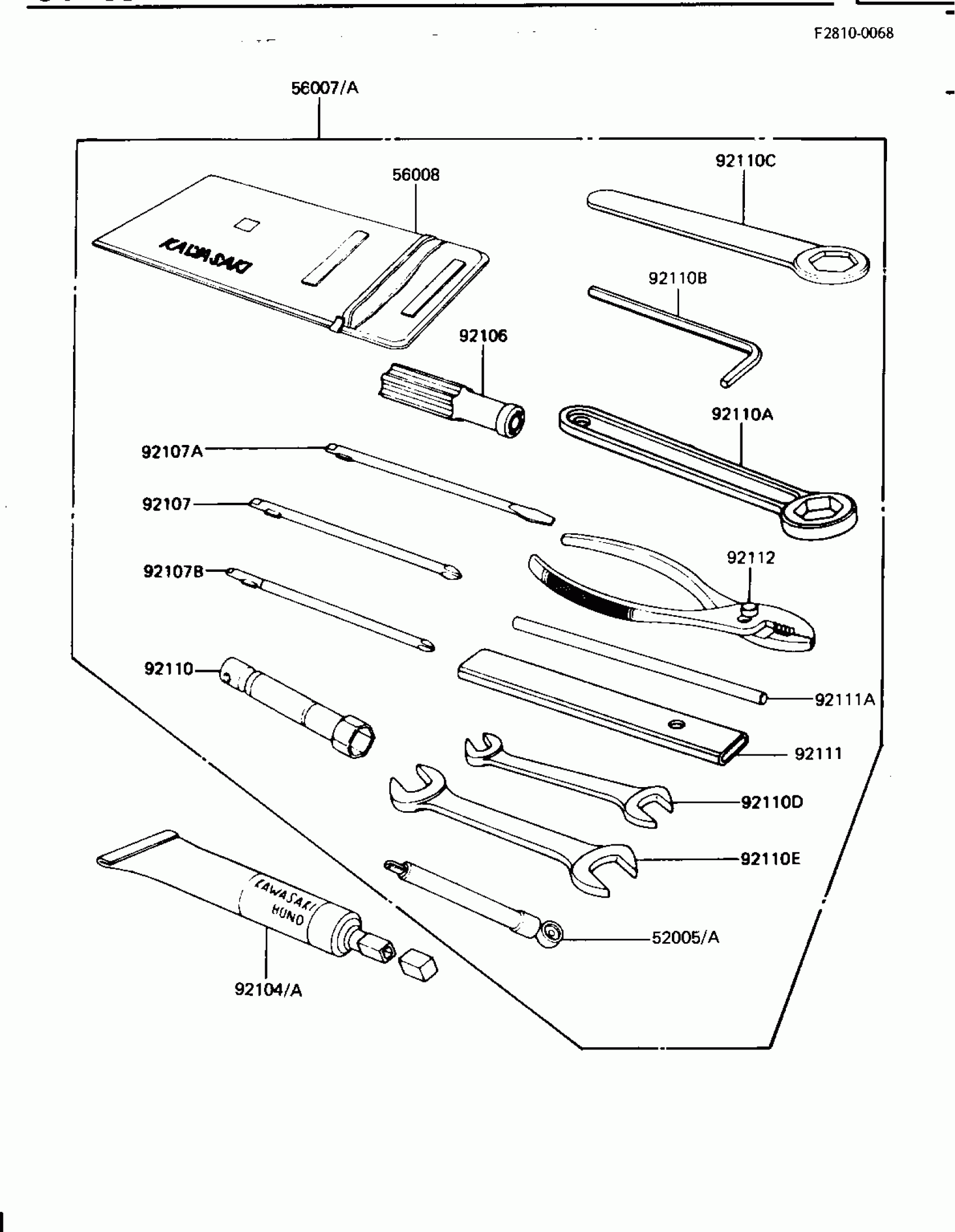

1982 Kawasaki GPZ Owner Tools Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

52005A

GAUGE,AIR

52005-4002

1
Out of stock

56007A

56007-1121 (Canada)

56007-1139

1
Out of stock

56008

BAG,TOOL

56008-006

1

$22.62

In stock

92104

1

$9.96

In stock

92104A

1

$47.60

In stock

92106

GRIP-SCREW DRIVER

92106-1001

1

$10.19

In stock

92107

1

$7.72

In stock

92107A

TOOL-DRIVER,#2SLOT

92107-007

1

$7.72

In stock

92107B

1

$10.44

In stock

92110

WRENCH,SPARK PLUG

92108-008

1
Out of stock

92110A

1

$21.22

In stock

92110B

1

$11.22

In stock

92110C

1

$18.86

In stock

92110D

1

$11.41

In stock

92110E

1

$17.39

In stock

92111

1

$12.47

In stock

92111A

BAR,SPARK PLUG WRENCH

92111-005

1
Out of stock

92112

TOOL-PLIERS

92112-003

1

$26.00

In stock
