1986 Kawasaki GPZ Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1986 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

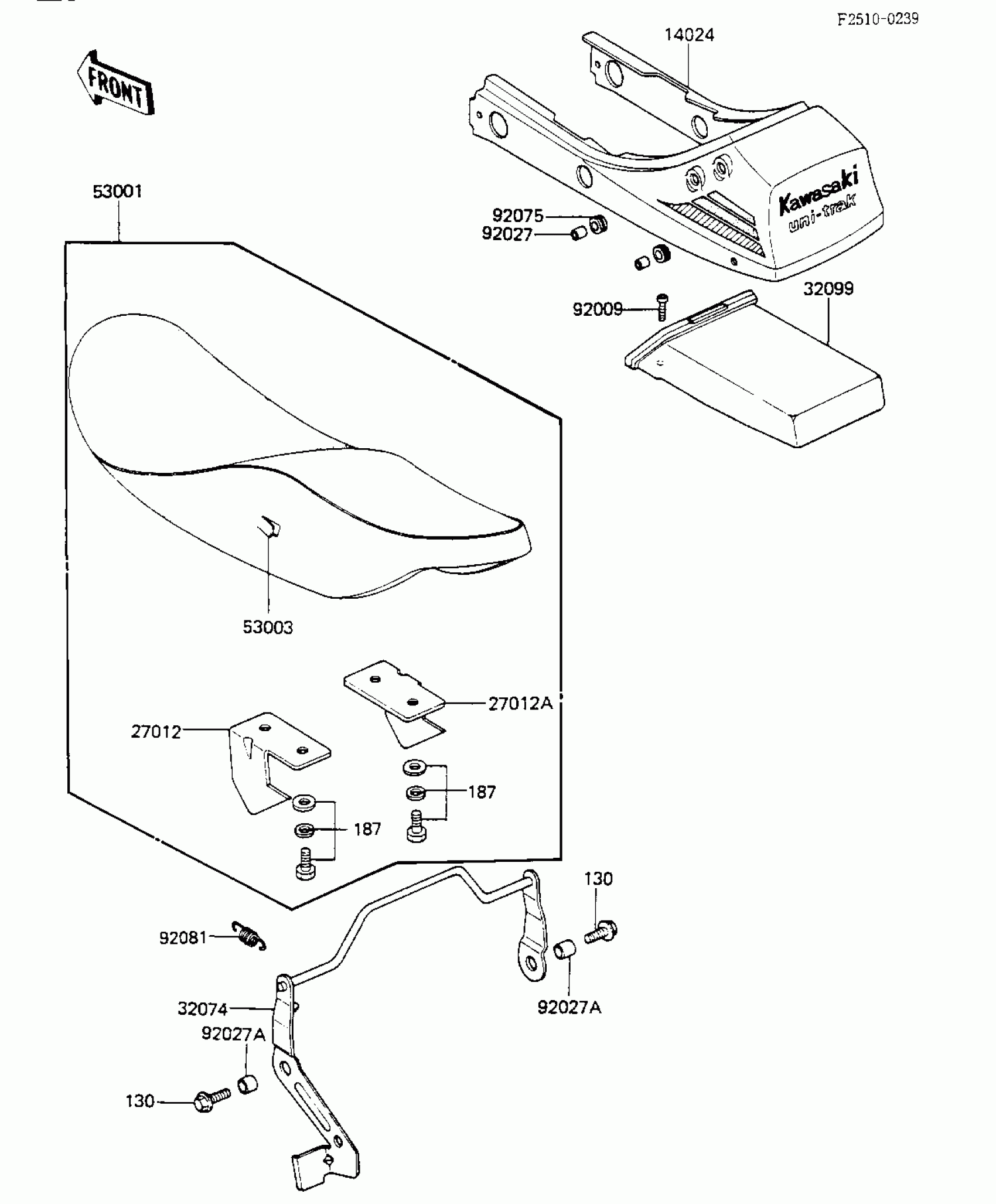

1986 Kawasaki GPZ Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

14025-5287-H8 (Canada)

14025-5250-H8

1
Out of stock

27012

HOOK,SEAT,LH

27012-1045

1
Out of stock

27012A

HOOK,SEAT,RH

27012-1046

1

$8.47

In stock

32074

BRACKET-LOCK,SEAT

32074-1051

1

$38.97

In stock

32099

CASE,TOOL

32099-1039

1

$46.21

In stock

53001

SEAT-ASSY,DUAL

53001-1364

1
Out of stock

53003

LEATHER,SEAT

53003-1106

1
Out of stock

92009

SCREW,TAPPING,6MM

92009-1261

1
Out of stock

92027

COLLAR,6.8X10X8.5

92027-129

1

$3.97

In stock

92027A

COLLAR,8.2X13X6

92027-1565

1

$1.61

In stock

92075

DAMPER

92075-1028

1

$3.72

In stock

92081

SPRING,HOOK RETURN

92081-1466

1

$6.75

In stock

130

BOLT-FLANGED,8X16,BLACK

130C0816

1
Out of stock

187

BOLT 6X14

187B0614

1
Out of stock
