1986 Kawasaki GPZ Fairing Diagram

← All diagrams

Find the part on the Fairing diagram for your 1986 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

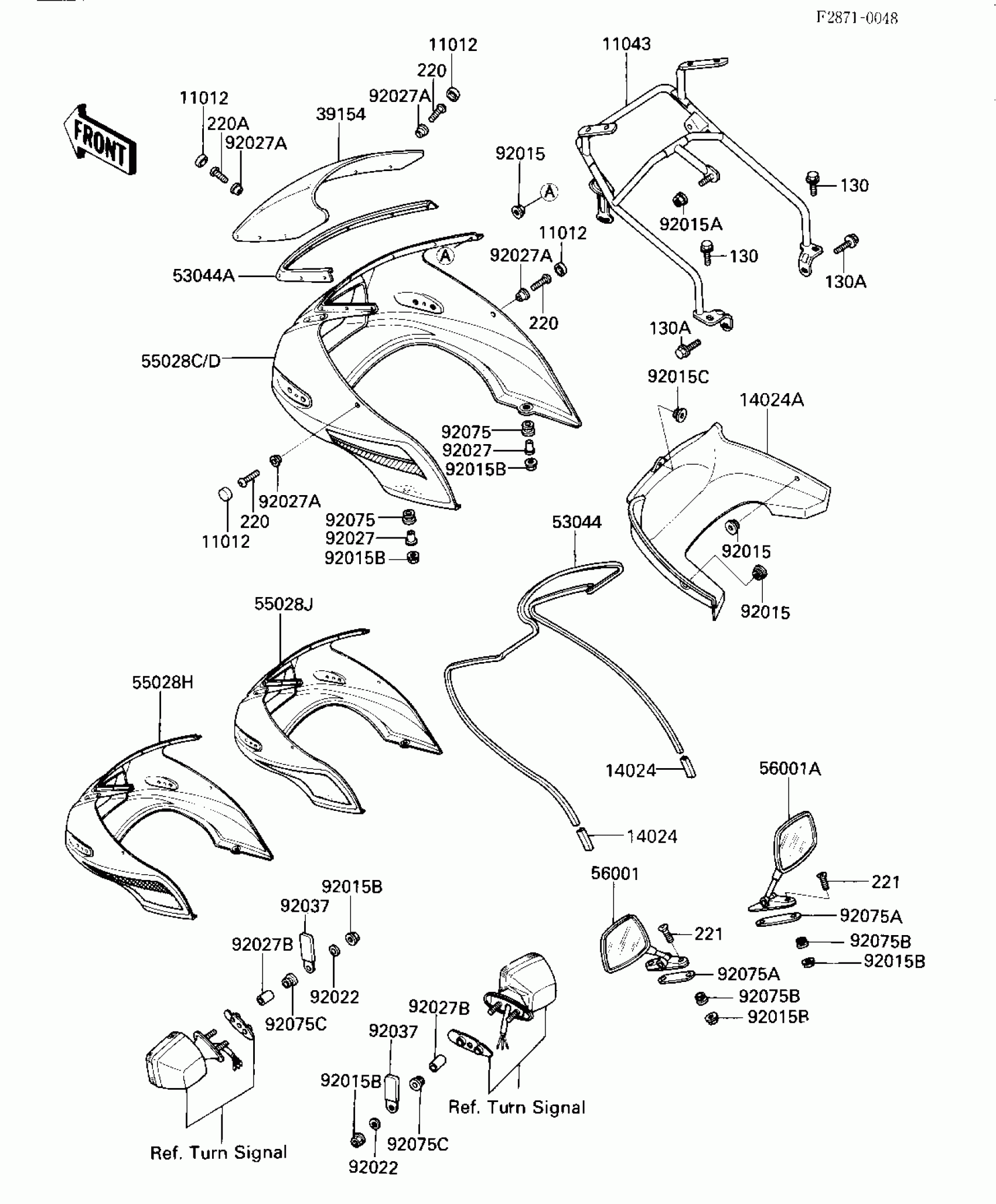

1986 Kawasaki GPZ Fairing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,COWLING

11012-1309

1
Out of stock

11043

BRACKET-B,COWLING

11043-1084

1
Out of stock

14024

COVER,TRIM END

14025-1756

1
Out of stock

14024A

COVER,COWLING

14025-5182

1
Out of stock

39154

WINDSHIELD

39154-1054

1
Out of stock

53044

TRIM,COWLING

53044-1108

1
Out of stock

53044A

TRIM,WINDSHIELD

53044-1123

1
Out of stock

55028C

COWLING,F.RED

55028-5043-B1

1
Out of stock

55028D

COWLING,G.SILVER

55028-5044-F2

1
Out of stock

56001

MIRROR-ASSY,LH

56001-1362

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-1363

1
Out of stock

92015

NUT,5M/M

92015-1025

1
Out of stock

92015A

NUT,CAP,8MM,BLACK

92015-1174

1
Out of stock

92015B

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92015C

NUT,FLANGED,5MM

92015-1306

1
Out of stock

92022

WASHER,7X24X1.6

92022-228

1
Out of stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1
Out of stock

92027A

COLLAR,COWLING,ID=5.5

92027-1596

1
Out of stock

92027B

COLLAR,6.8X10X12

92027-162

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92075

DAMPER

92075-1057

1
Out of stock

92075A

DAMPER,MIRROR

92075-1500

1
Out of stock

92075B

DAMPER,MIRROR

92075-1512

1
Out of stock

92075C

DAMPER RUBBER

92075-263

1
Out of stock

130

BOLT-FLANGED

130C0625

1
Out of stock

130A

BOLT-FLANGED,8X12,BLACK

130C0812

1
Out of stock

220

SCREW-PAN-CROS

220C0514

1
Out of stock

220A

SCREW-PAN-CROS,5X16,BLACK

220C0516

1
Out of stock

221

SCREW-CSK-CROSS

221C0630

1
Out of stock
