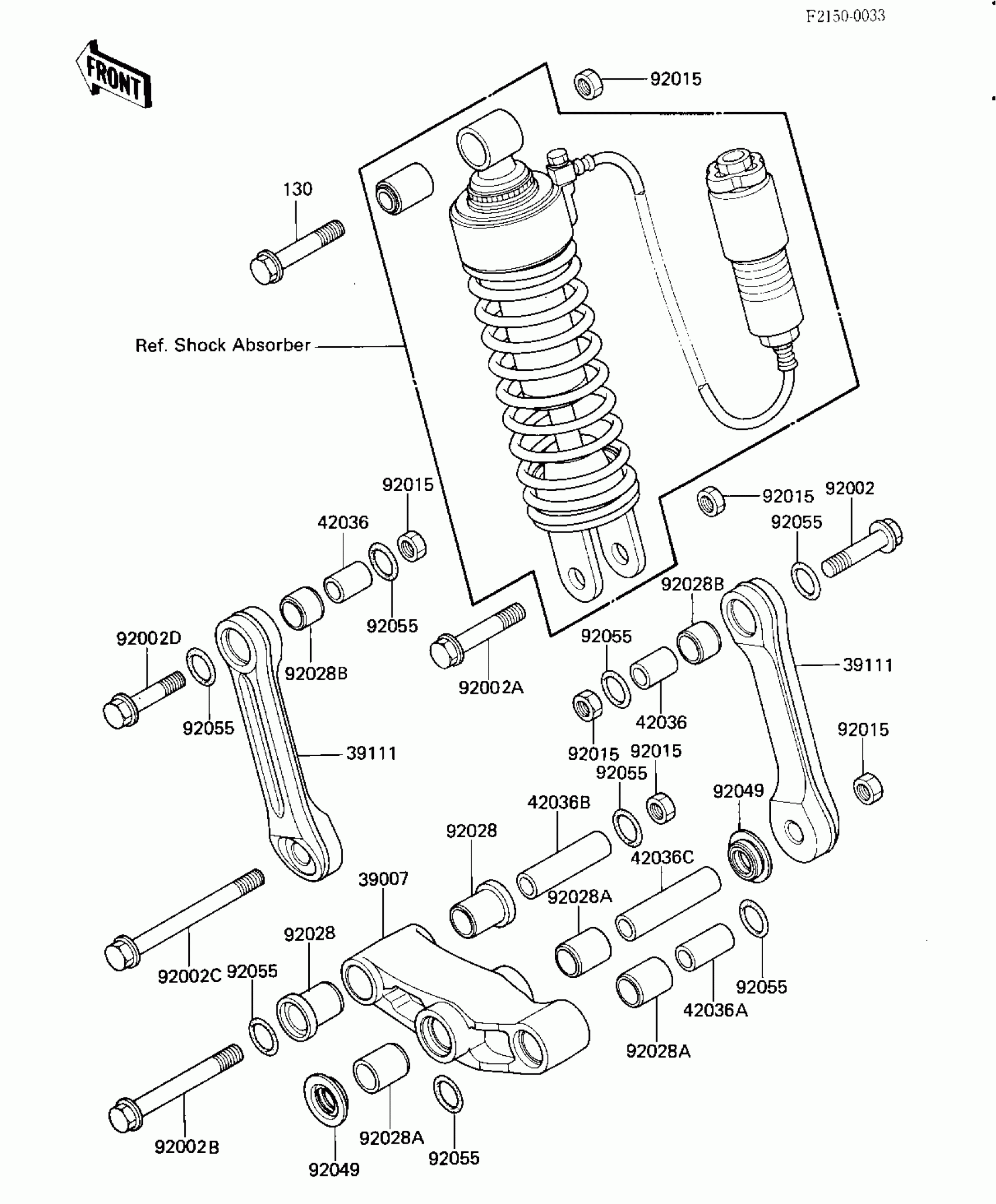

Find the part on the Rear Suspension diagram for your 1984 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Kawasaki GPZ Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107A

SHAFT,SUSPENSION ARM

13107-1114

1
Out of stock

32085

1

$2.32

In stock

39002

ARM-COMP-SUSP

39002-1004

1

$234.25

In stock

42036

SLEEVE,SWING ARM

42036-1040

1

$29.53

In stock

42036A

SLEEVE,12.1X20X26

42036-1072

1
Out of stock

42036B

SLEEVE,12.1X20X84

42036-1075

1
Out of stock

49072

1

$110.71

In stock

92002

BOLT,12X48

92002-1052

1

$10.36

In stock

92002A

BOLT,12X128

92002-1053

1

$19.39

In stock

92002B

BOLT,16X73

92002-1056

1

$22.44

In stock

920020

BOLT,10X50

92002-1131

1
Out of stock

92009

SCREW,5X8

92009-1313

1
Out of stock

92015

NUT,LOCK,10MM,BLACK

92015-1189

1
Out of stock

92015A

NUT,LOCK,12MM,BLACK

92015-1190

1
Out of stock

92015B

NUT,LOCK,16MM,BLACK

92015-1207

1
Out of stock

92046

1

$23.73

In stock

92046A

1

$19.34

In stock

92049

SEAL-OIL,MH25334

92049-1060

1
Out of stock

92049A

SEAL-OIL,GD20X26X4

92049-1108

1
Out of stock
