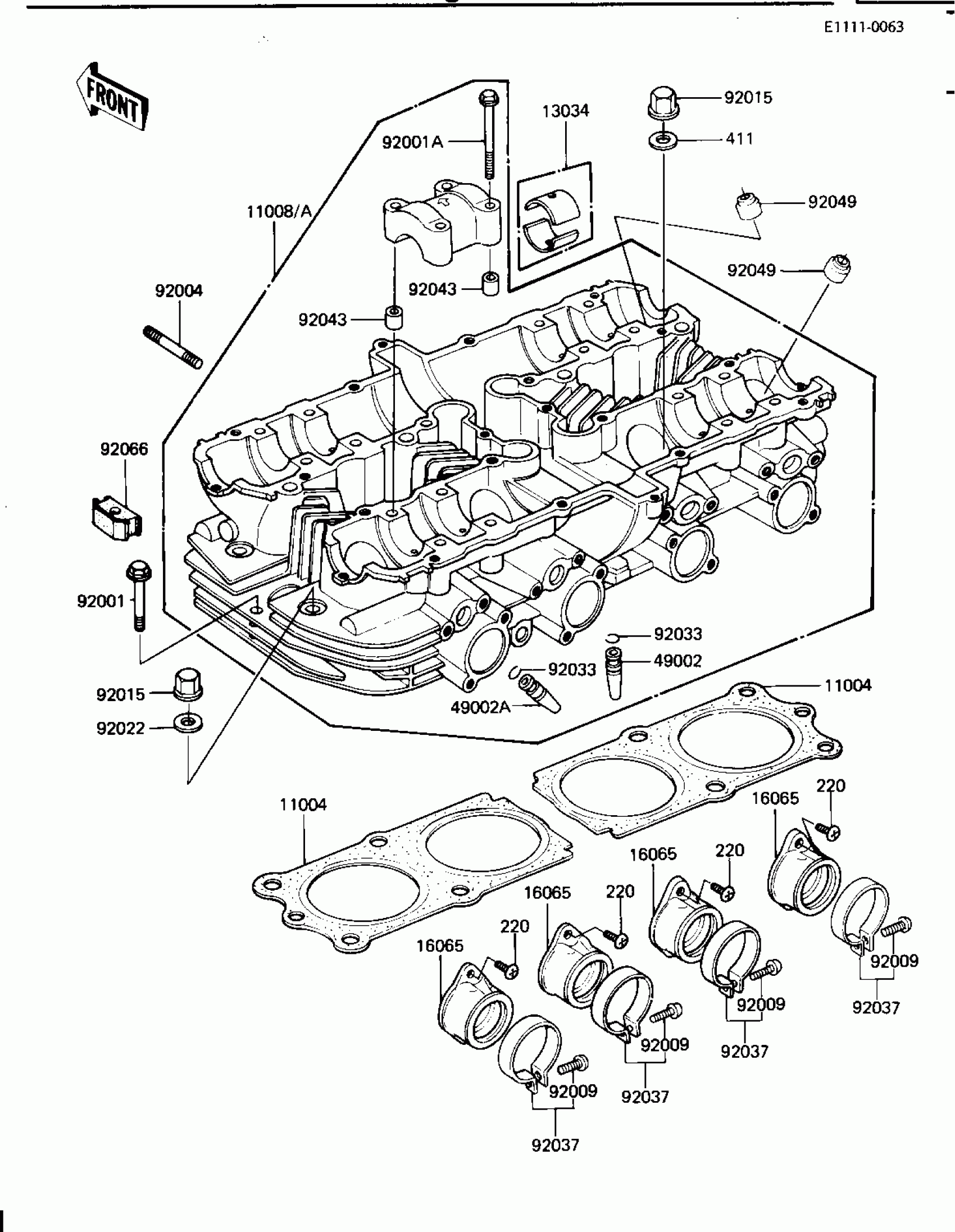

Kawasaki GPz CYLINDER HEAD (KZ1100-B1) Diagram

Description

Price

11004

GASKET-HEAD,CYLINDER

11004-1105

Unavailable

11008

HEAD-COMP-CYLINDER

11008-1017

Unavailable

11008A

HEAD-COMP-CYLINDER (Canada)

11008-1018

Unavailable

13034

BUSHING,CAMSHAFT

13034-030

$20.54

16065

HOLDER,THROTTLE

16065-1037

Unavailable

49002

GUIDE-VALVE,INTAKE

12013-009

$24.29

49002A

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

92001

BOLT,FLANGED,6X45

92003-092

$6.03

92001A

BOLT,6X43

92002-1881

$5.76

92004

STUD,8X30

92004-1069

$5.98

92009

SCREW,PAN HEAD

92011-037

Unavailable

92015

NUT,FLANGED CAP,10MM

92015-076

$10.83

92022

WASHER,10.5X22X1.6

92022-1005

$3.58

92033

RING-SNAP,VALVE GUIDE

92036-023

$0.53

92037

CLAMP,HOLDER

92037-077

$9.95

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.51

92049

SEAL-OIL,RV37129.5

92049-016

$14.42

92066

PLUG,CYLINDER HEAD COVER

92066-1106

$26.12

220

SCREW-PAN-CROS,6X16,BLACK

220C0616

Unavailable

411

WASHER-PLAIN,10MM

411B1000

Unavailable
