1984 Kawasaki GPz 750 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 1984 Kawasaki GPz 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

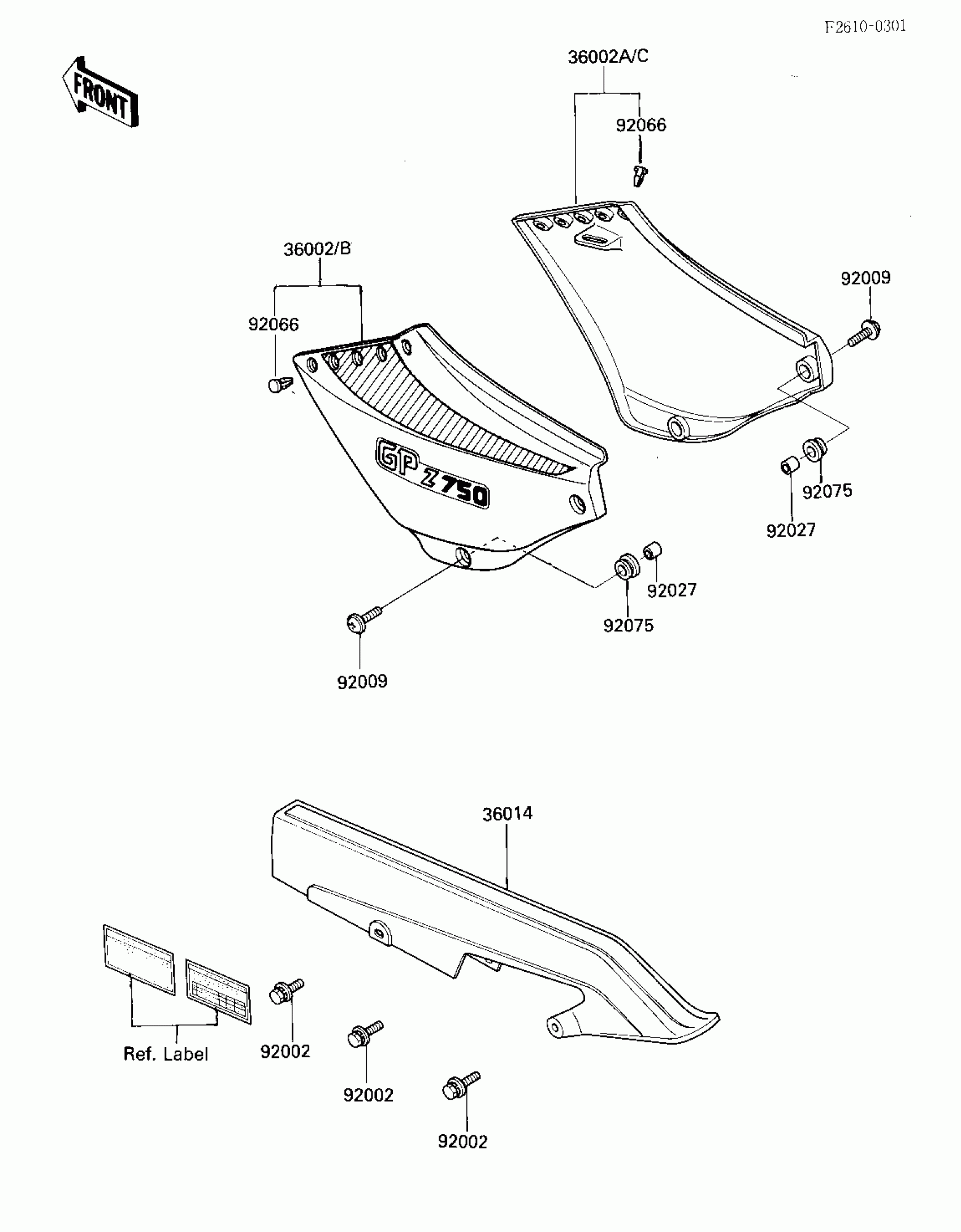

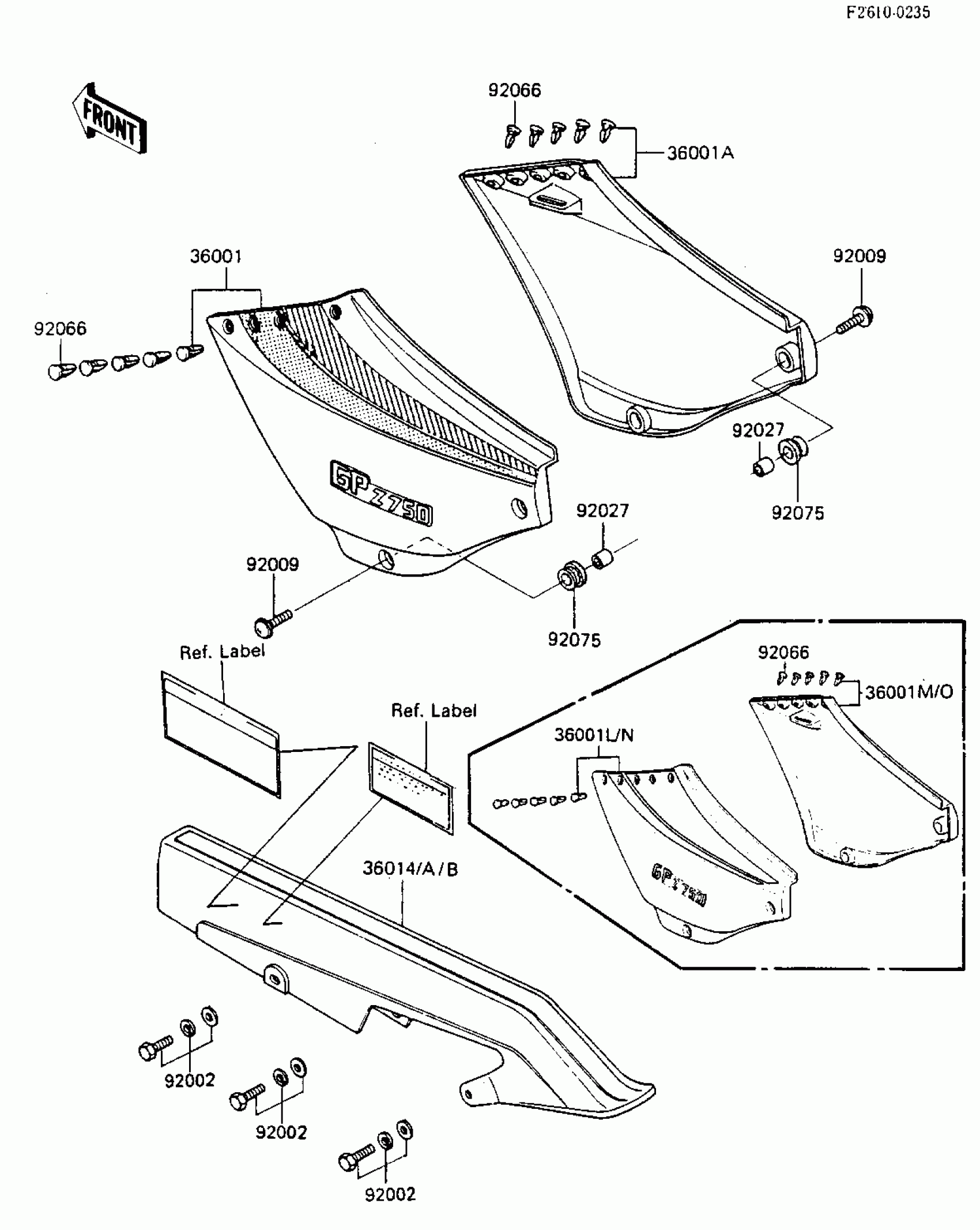

1984 Kawasaki GPz 750 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001L

COVER-SIDE,LH,F.RED

36001-5277-B1

1

$264.00

In stock

36001M

COVER-SIDE,RH,F.RED

36001-5278-B1

1

$115.34

In stock

36001N

COVER-SIDE,LH,G.SILVE

36001-5279-F2

1

$298.26

In stock

360010

COVER-SIDE,RH,G.SILVE

36001-5280-F2

1

$121.57

In stock

36014A

CASE-CHAIN

36014-1101

1
Out of stock

92002

BOLT,6X16

92002-1242

1
Out of stock

92009

SCREW,6X22,BLACK

92009-1251

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92066

PLUG,SIDE COVER

92066-1127

1
Out of stock

92075

RUBBER,FENDER COVER

92075-174

1
Out of stock
