1984 Kawasaki GPZ 750 Secondary Shaft Diagram

← All diagrams

Find the part on the Secondary Shaft diagram for your 1984 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

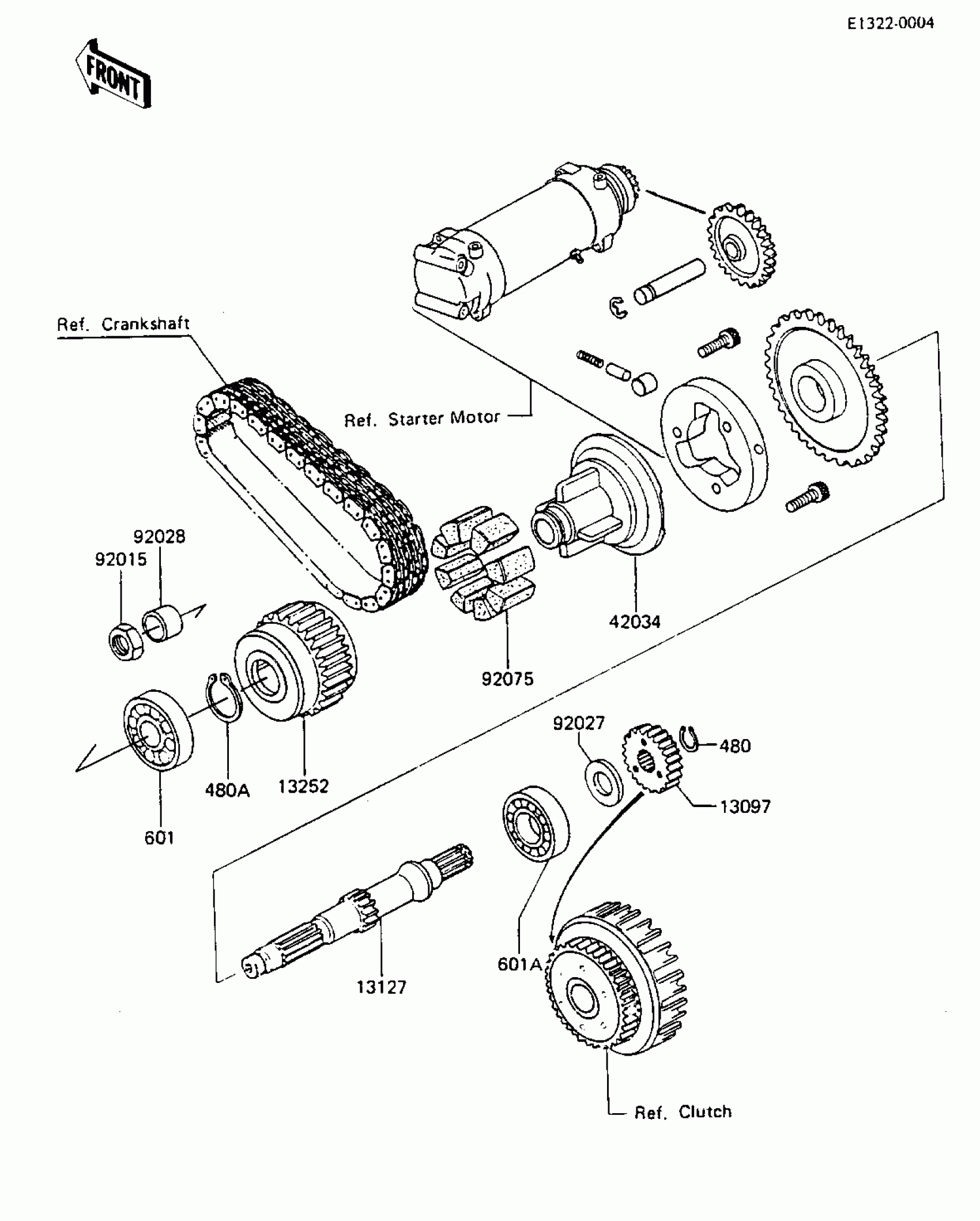

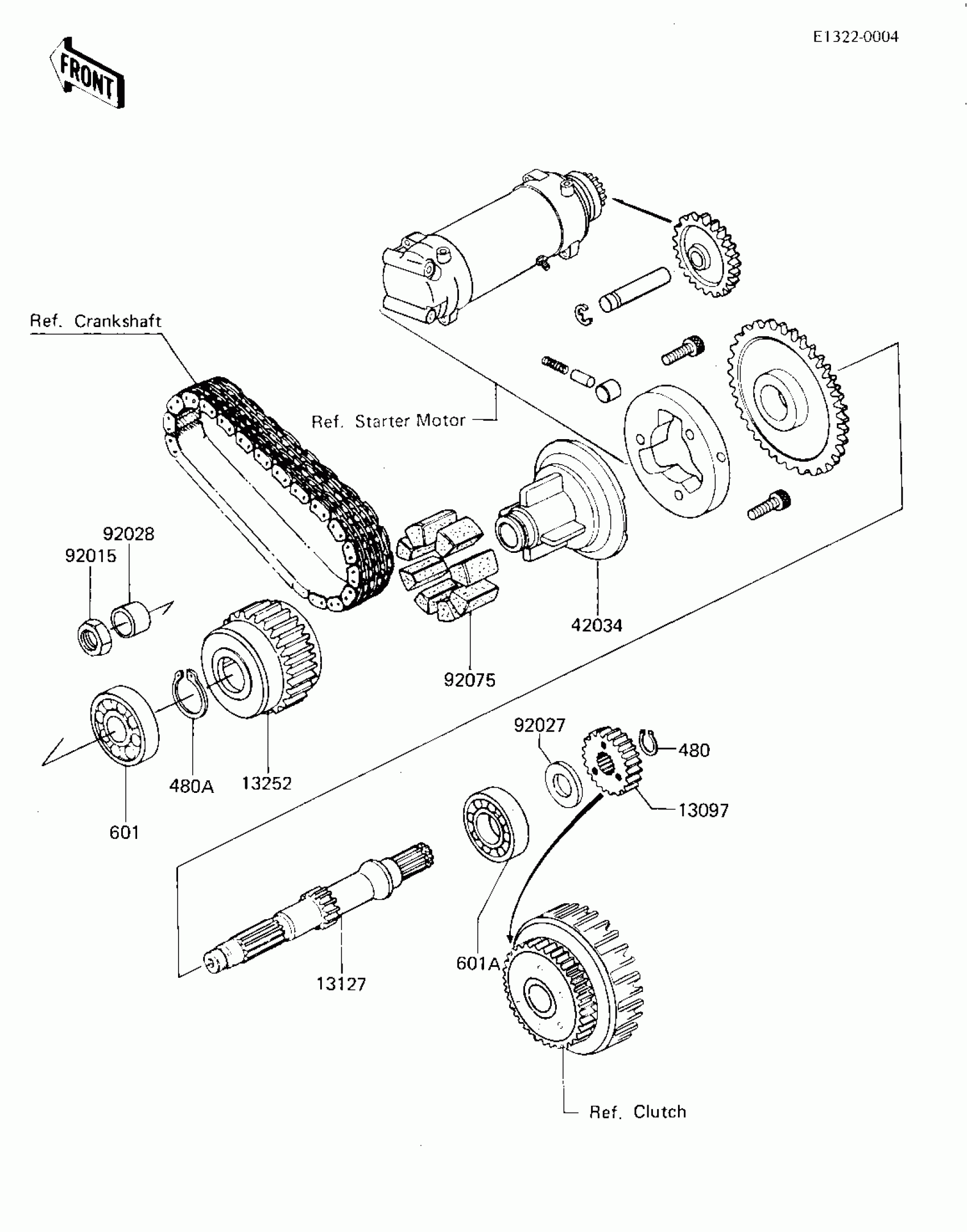

1984 Kawasaki GPZ 750 Secondary Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13097

GEAR,SECONDARY SHAFT,29T

13121-037

1
Out of stock

13127

SHAFT,SECONDARY,L=205

13127-1019

1
Out of stock

13252

COUPLING,OUTER,SECONDARY SHAFT

13252-001

1
Out of stock

42034

COUPLING,INNER,SECONDARY SHAFT

13253-001

1
Out of stock

92015

NUT,18MM

92015-019

1
Out of stock

92027

COLLAR,23X46X4.5

92027-263

1

$5.59

In stock

92028

BUSHING,20X25X16.6

92028-1037

1

$32.44

In stock

92075

DAMPER

92075-1227

1

$6.34

In stock

480

1

$3.97

In stock

480A

1

$3.73

In stock

601

1

$15.38

In stock

601A

1

$23.43

In stock
