1984 Kawasaki GPZ 750 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1984 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

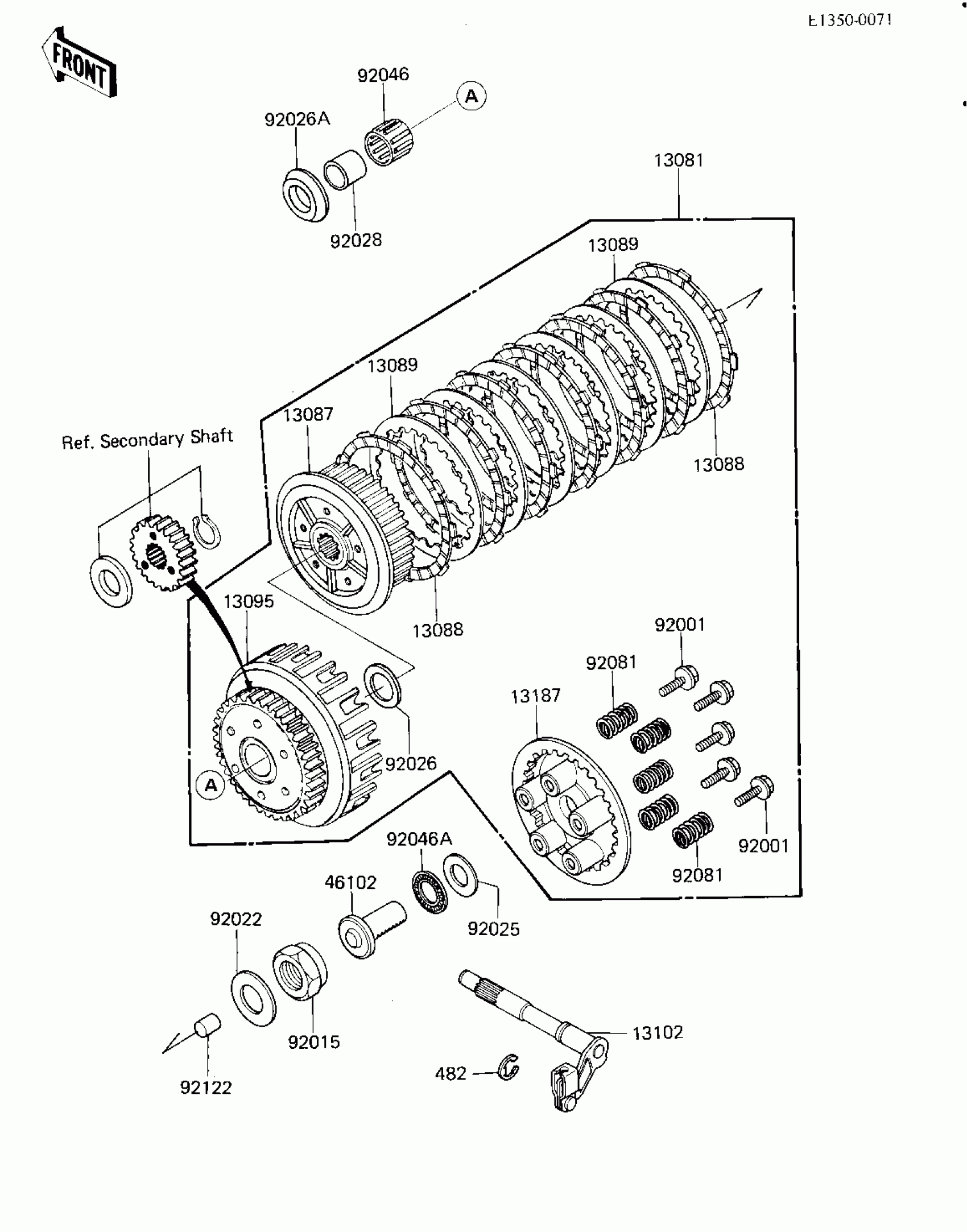

1984 Kawasaki GPZ 750 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13081

CLUTCH-ASSY

13081-1098

1
Out of stock

13087

HUB-CLUTCH

13087-043

1

$165.36

In stock

13088

1

$24.04

In stock

13089

PLATE,CLUTCH STEEL

13089-022

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-1033

1
Out of stock

13102

RELEASE-COMP-CLUTCH

13102-1024

1
Out of stock

13187

1

$84.54

In stock

46102

ROD,CLUTCH,6T

46102-1061

1

$25.75

In stock

92001

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER,20.3X36X2.3

92022-1116

1

$6.82

In stock

92025

SHIM,15.3X27.5X1.20

92025-1022

1
Out of stock

92026

SPACER,25.5X47X2.5

92026-022

1
Out of stock

92026A

1

$16.49

In stock

92028

BUSHING,25X32X23.6

92028-178

1

$23.53

In stock

92046

1

$19.92

In stock

92046A

1

$11.45

In stock

92081

SPRING,CLUTCH

92081-1176

1

$10.25

In stock

92122

ROLLER,10X12

92122-1019

1
Out of stock

482

CIRCLIP-TYPE-E,9MM

482K9000

1
Out of stock
