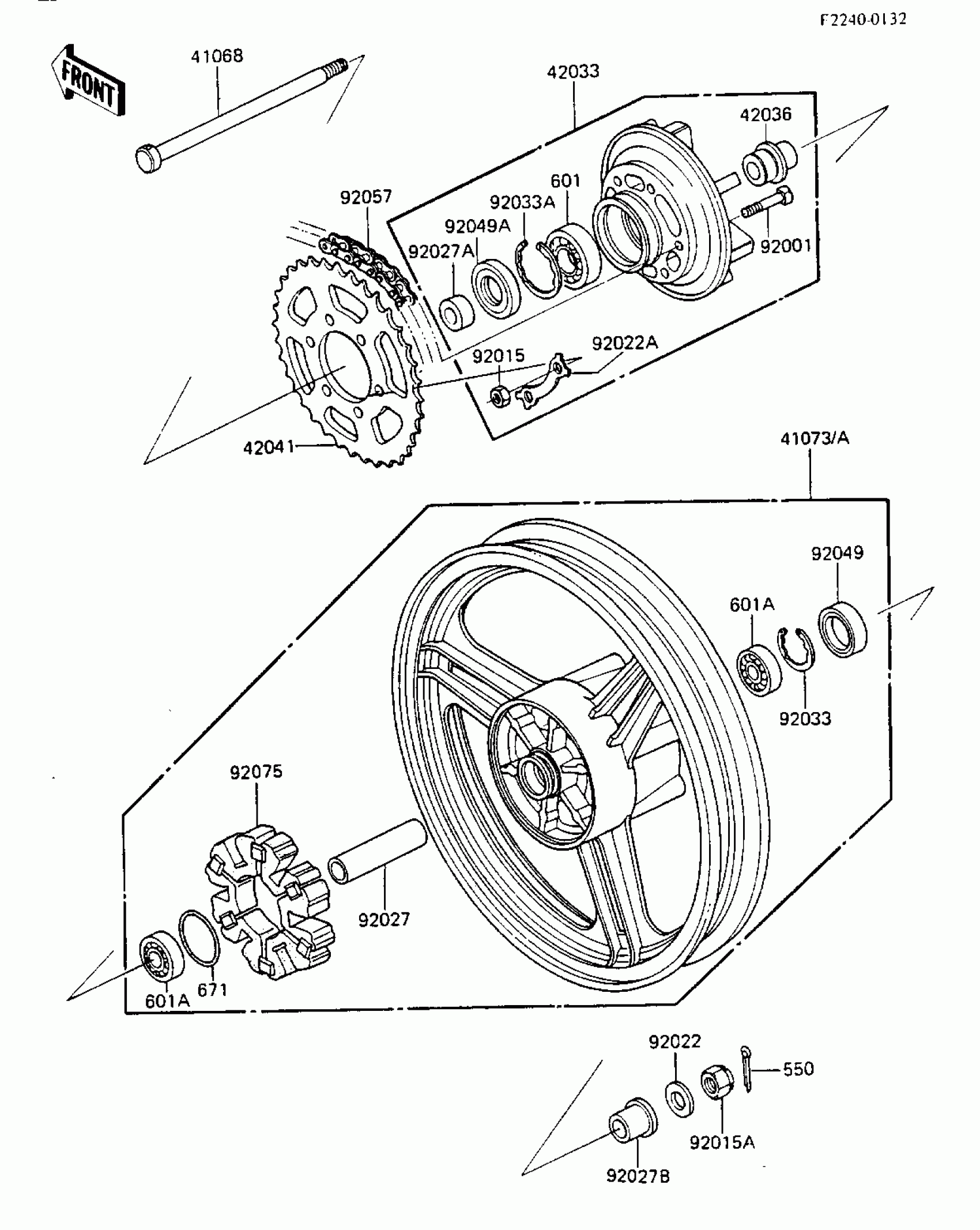

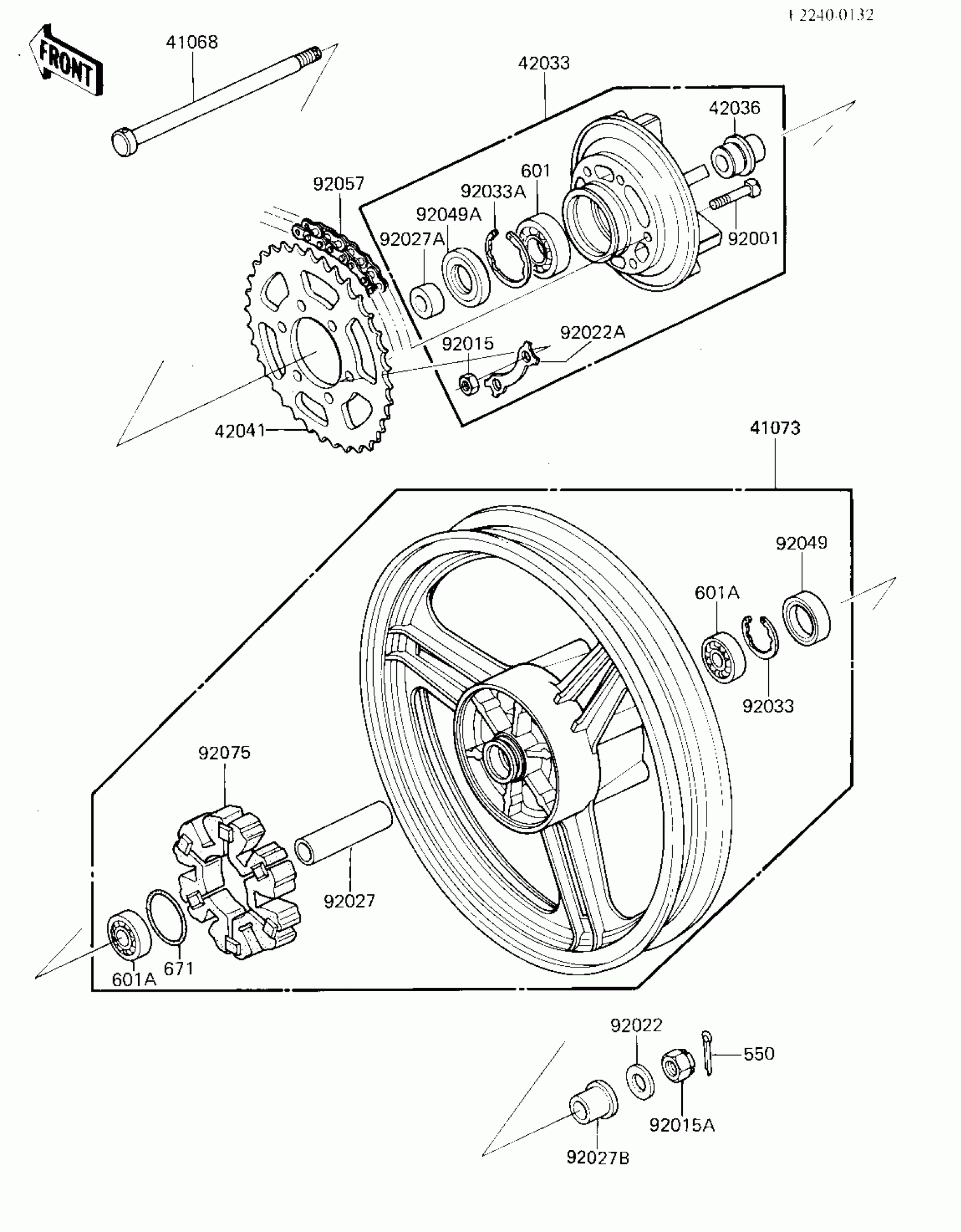

Kawasaki GPz 750 REAR WHEEL/HUB/CHAIN Diagram

#

Description
Price

41068

AXLE,RR

41068-1126

$118.33

41073A

WHEEL-ASSY,RR.M.GRAY

41073-1216-J9

$699.06

42033

COUPLING-ASSY,RR HUB,

42033-1055

$302.11

42036

SLEEVE,RR HUB L=33M/M

42036-1036

$37.43

42041

SPROCKET-HUB,38T,BLAC

42041-1131

$96.97

92001

BOLT,10X41

92001-161

Unavailable

92015

NUT,10MM

42045-005

$6.08

92015A

NUT,16MM

92015-055

$11.03

92022

WASHER,17.3X32X3.2

42046-009

$7.71

92022A

WASHER,LOCK

92022-1212

$4.84

92027

COLLAR,17.2X25X96

92027-1555

$19.24

92027A

COLLAR,RR AXLE,LH

92027-1562

Unavailable

92027B

COLLAR,17X28X33

92027-1566

Unavailable

92033

RING-SNAP,47MM

92033-1042

$3.22

92033A

RING-SNAP,62MM

92033-1044

$8.59

92049

SEAL-OIL,BJN28475

92049-1056

$9.95

92049A

SEAL-OIL,AJN40627

92050-027

$16.96

92057

CHAIN,DRIVE,94L

92057-1129

$598.36

92075

DAMPER REAR HUB SHOCK

42014-004

$20.80

550

PIN-COTTER,4.0X35

550D4035

$1.57

601

BALL BEARING,#6206

601B6206

$17.84

601A

BEARING-BALL,#6303ZZC3

601B6303ZZ

$41.16

671

O RING,65MM

671B2565

$6.75
