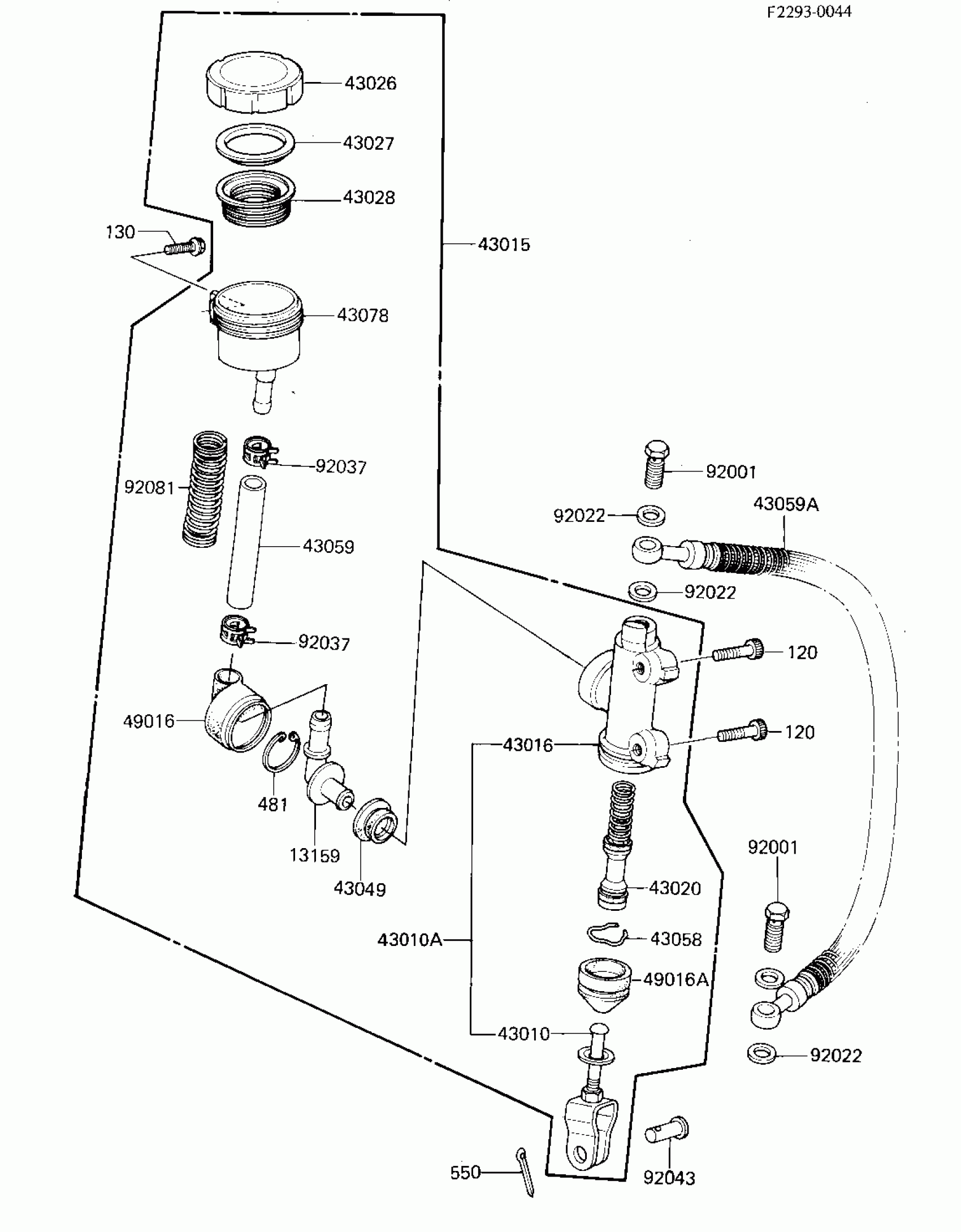

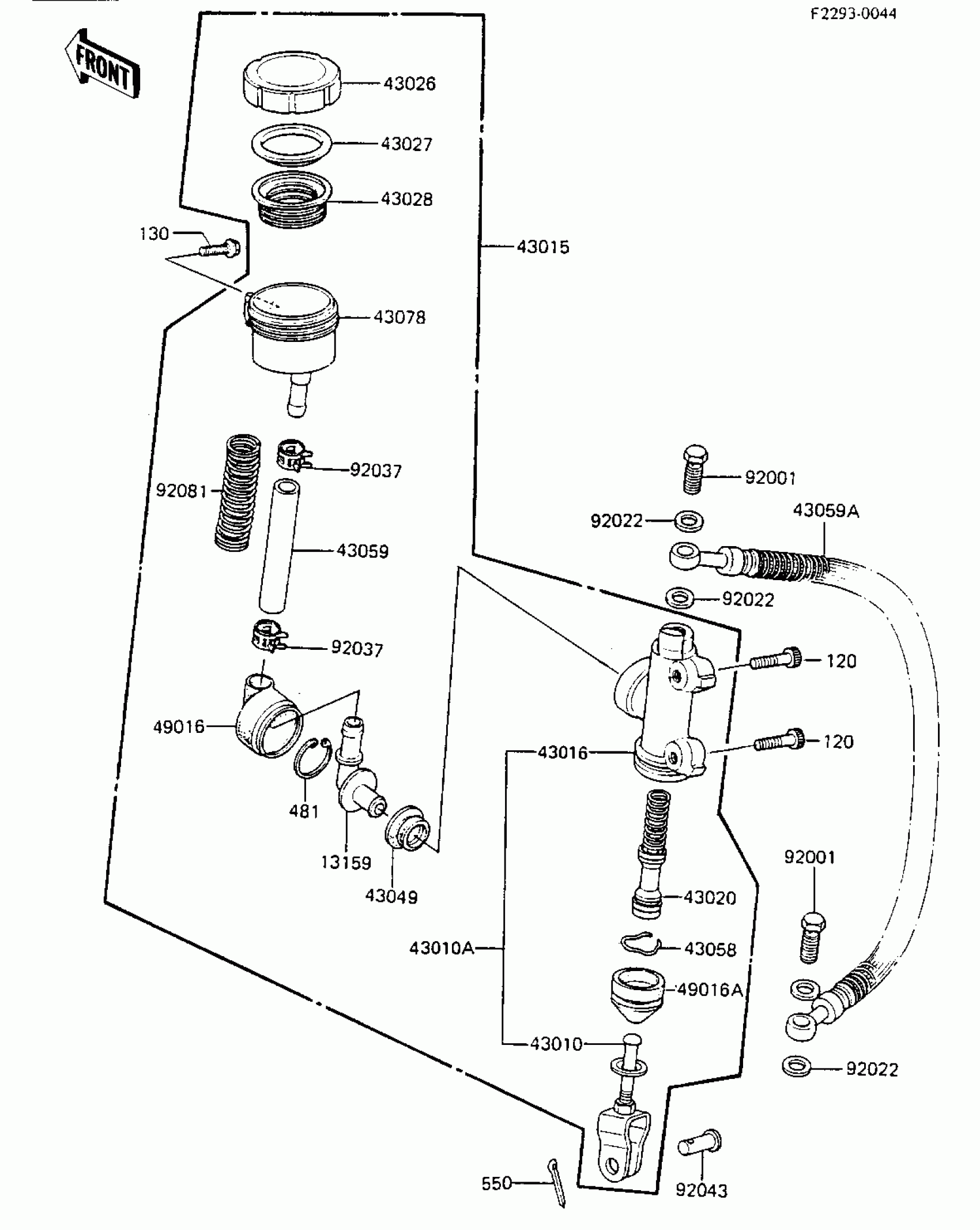

Kawasaki GPz 750 REAR MASTER CYLINDER Diagram

#

Description
Price

13159

CONNECTOR

13159-1009

Unavailable

43010

ROD-ASSY-BRAKE,RR

43010-1051

$75.95

43010A

ROD-ASSY-BRAKE,RR/MASTER CYL

43010-5006

Unavailable

43015

CYLINDER-ASSY-MASTER,

43015-1251

$276.07

43016

CYLINDER-MASTER,RR

43016-1101

Unavailable

43020

PISTON-COMP-BRAKE

43020-1035

Unavailable

43026

CAP-BRAKE

43026-1016

$37.12

43027

PLATE-DIAPHRAGM

43027-1005

$5.66

43028

DIAPHRAGM

43028-1016

$21.88

43049

PACKING

43049-1008

$10.53

43058

RING,ROD STOPPER

43058-004

$5.83

43059

HOSE-BRAKE,L=116

43059-1140

Unavailable

43059A

HOSE-BRAKE,L=630

43059-1165

Unavailable

43078

RESERVOIR

43078-1009

$35.15

49016

COVER-SEAL,MASTER CYLINDER

49016-1034

$15.07

49016A

COVER-SEAL,BRAKE PISTON

49016-1048

Unavailable

92001

BOLT,OIL,L=23

92002-1888

$4.15

92022

WASHER,10.5X15X1.5

43067-001

$1.57

92037

CLAMP,CABLE

92037-139

Unavailable

92043

PIN,8X16

92043-1013

$7.54

92081

SPRING,HOSE PROTECTER

92081-1335

Unavailable

120

BOLT-SOCKET,8X35

120P0835

Unavailable

130

BOLT,FLANGED,6X20

130B0620

Unavailable

481

CIRCLIP-TYPE-C,25MM

481J2500

$2.14

550

PIN COTTER 2.0X15

550D2015

Unavailable
