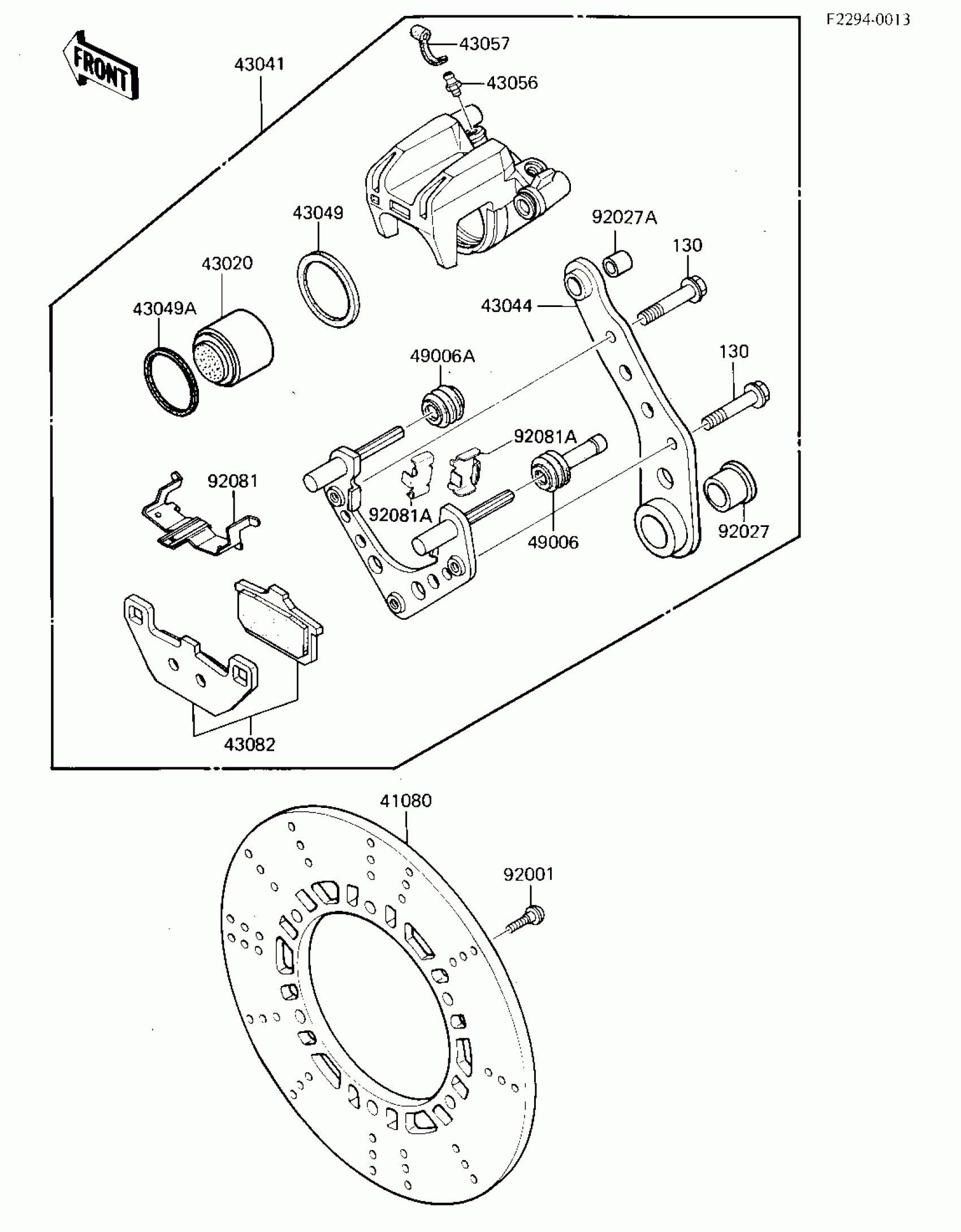

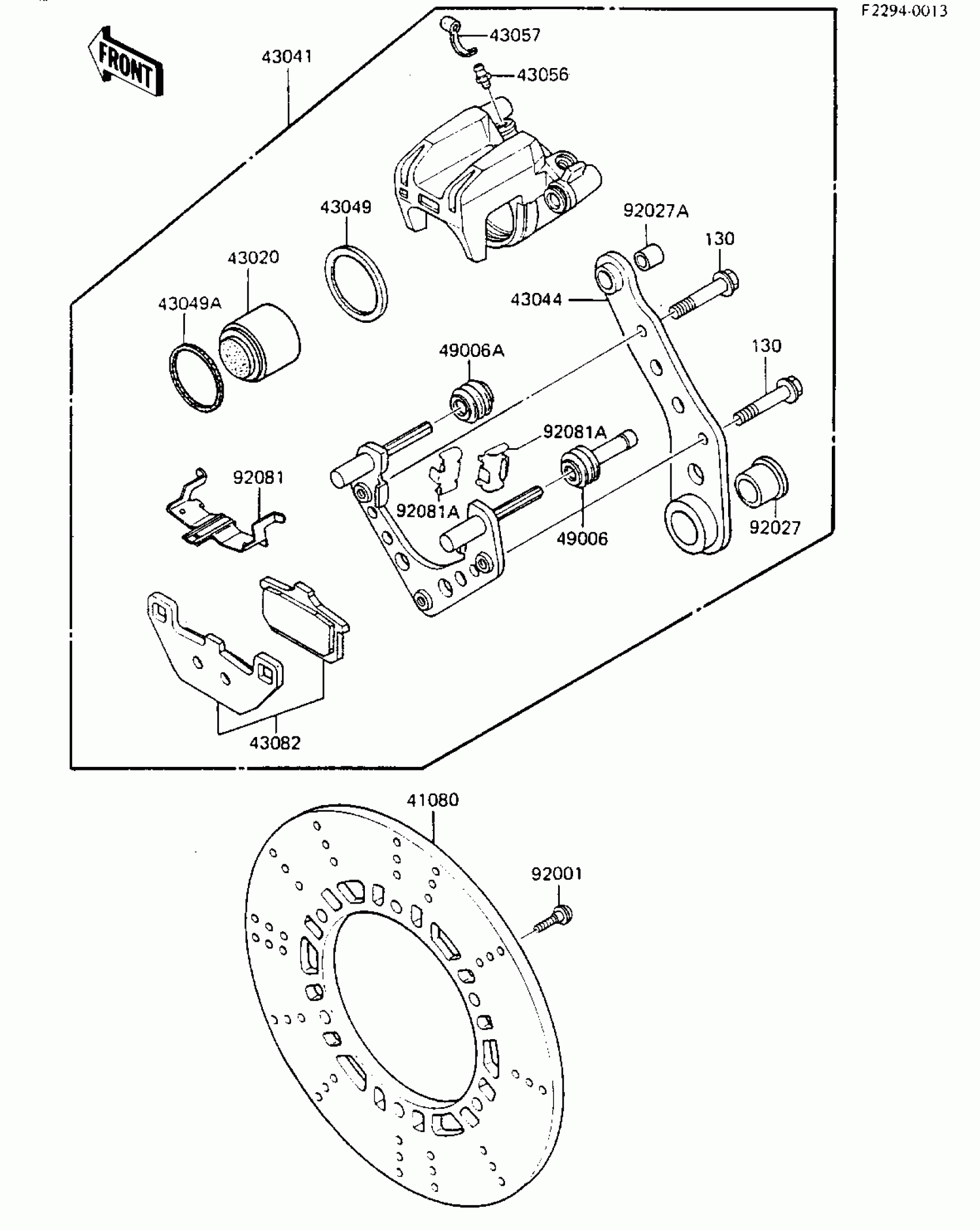

Kawasaki GPz 750 REAR BRAKE Diagram

Description

Price

41080

DISC,RR,SILVER

41080-1111

$461.91

43020

PISTON-COMP-BRAKE

43020-1066

$93.03

43041

CALIPER-ASSY,RR

43041-1105

$484.80

43044

HOLDER-COMP-CALIPER,R

43044-1037

$196.09

43049

PACKING,PISTON SEAL

43049-002

$10.56

43049A

PACKING,PISTON

43049-1028

$9.61

43056

BREATHER

43056-003

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082

PAD-ASSY-BRAKE

43082-1029

$60.03

49006

BOOT,CALIPER

49006-1094

$9.30

49006A

BOOT,CALIPER

49006-1095

$5.55

92001

BOLT,DISC PLATE,8X30

92001-1951

$3.57

92027

COLLAR,RR CALIPER,ID=

92027-1655

$32.78

92027A

COLLAR,10.5X18X17

92027-1656

$22.44

92081

SPRING,PAD

92081-1525

$14.69

92081A

SPRING,PAD STOPPER

92081-1661

$9.22

130

BOLT-FLANGED,10X14

130G1014

Unavailable
