1984 Kawasaki GPZ 750 Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 1984 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

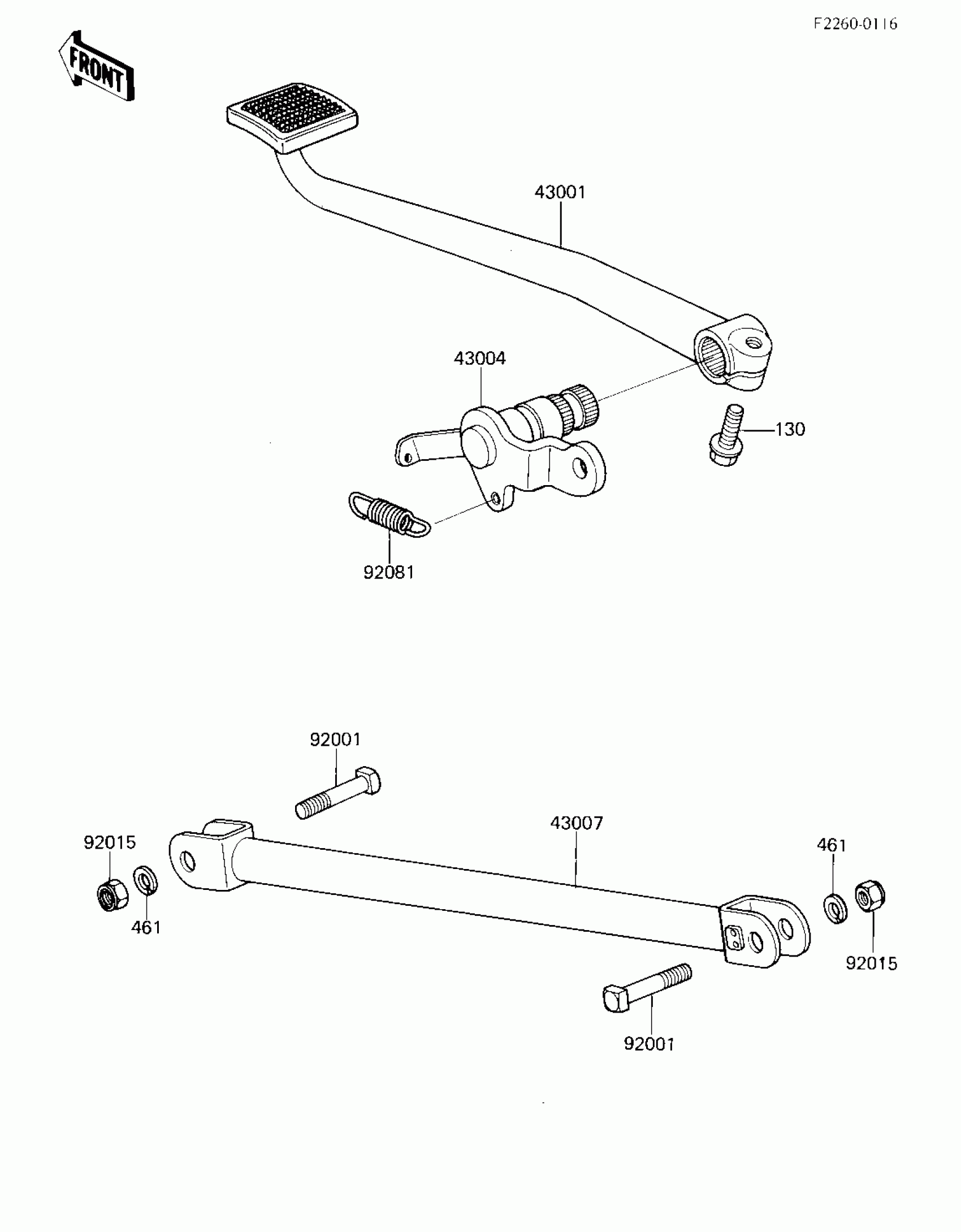

1984 Kawasaki GPZ 750 Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE,PEDAL

43001-1151

1
Out of stock

43004

SHAFT-BRAKE

43004-1051

1
Out of stock

43007

ROD-TORQUE

43007-1046

1
Out of stock

92001

BOLT,10X37,BLACK

92001-1646

1
Out of stock

92015

NUT,LOCK,10MM,BLACK

92015-1189

1
Out of stock

92081

SPRING,BRAKE PEDAL

92081-1313

1
Out of stock

130

BOLT-FLANGED,8X25,BLACK

130J0825

1
Out of stock

461

WASHER-SPRING,10MM,BLACK

461K1000

1
Out of stock
