1984 Kawasaki GPz 750 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1984 Kawasaki GPz 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

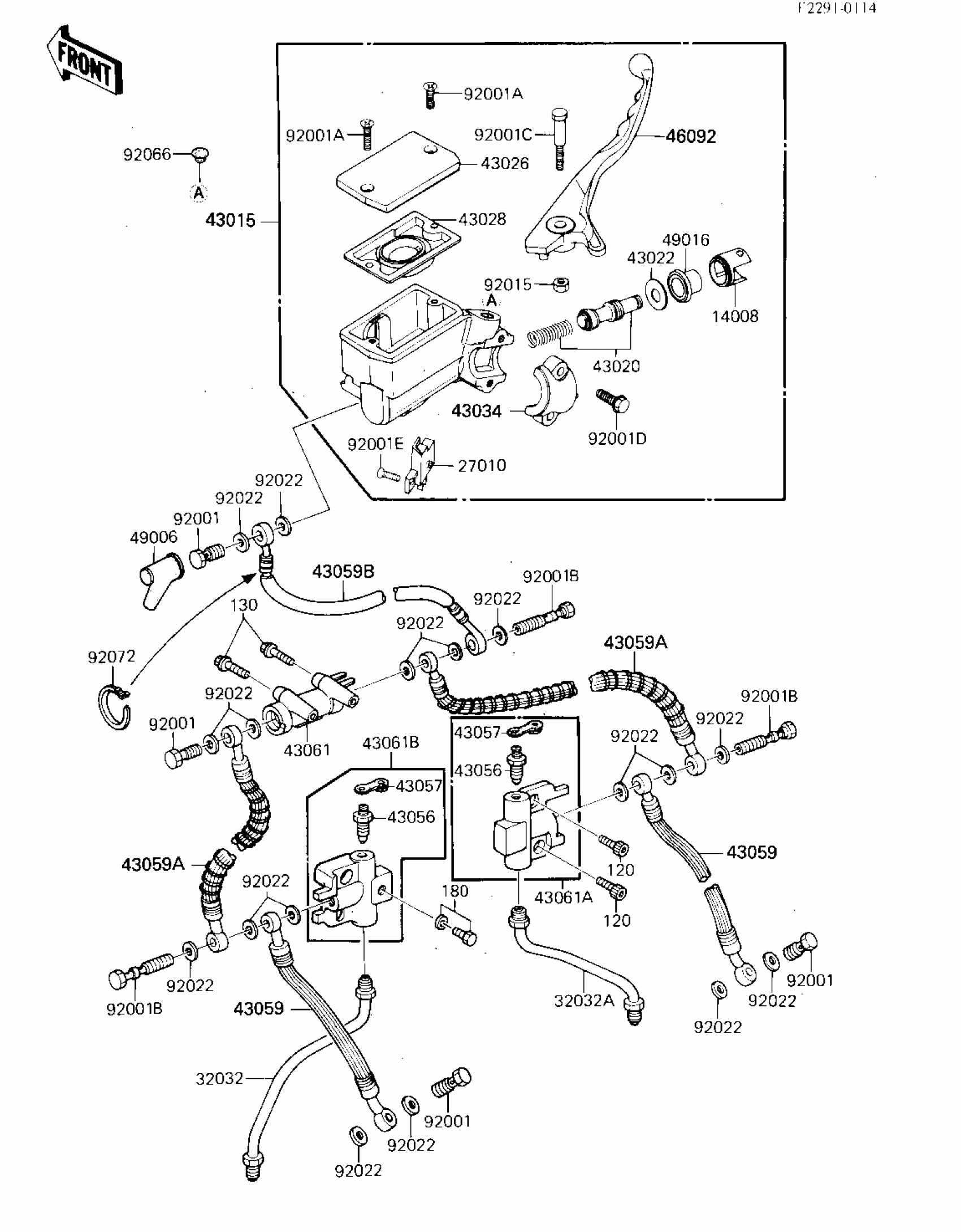

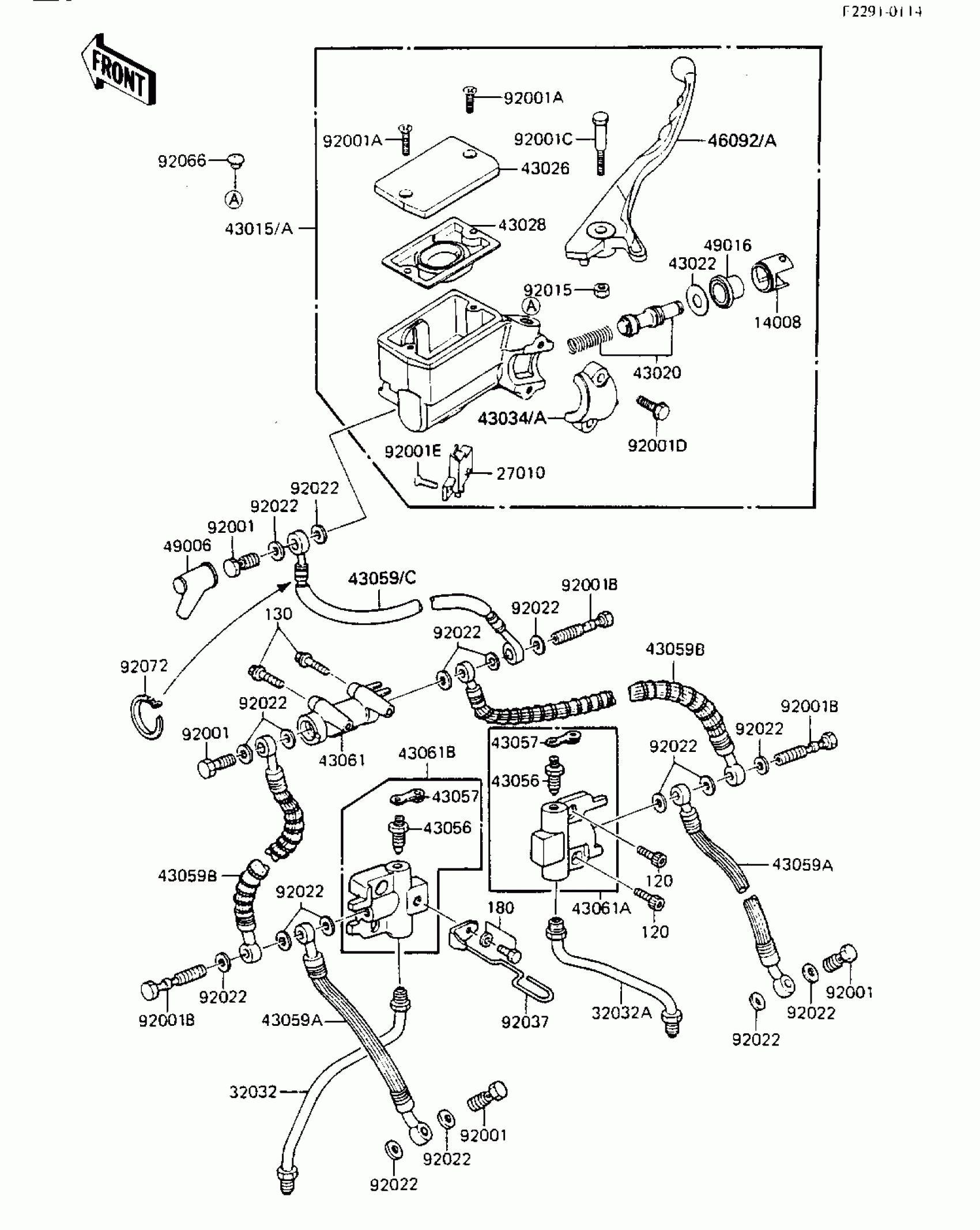

1984 Kawasaki GPz 750 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14008

LINER,PISTON

14008-1035

1

$12.34

In stock

27010

SWITCH,BRAKE

27010-1056

1
Out of stock

32032

PIPE,BRAKE,FR,LH

32033-1061

1
Out of stock

32032A

PIPE,BRAKE,FR,RH

32033-1062

1
Out of stock

43015

CYLINDER-ASSY-MASTER

43015-1085

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1079

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1009

1
Out of stock

43026

CAP-BRAKE,FRONT

43026-1017

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1029

1
Out of stock

43034A

HOLDER-BRAKE,MASTER C

43034-1013

1
Out of stock

43056

BREATHER-BRAKE

43056-1051

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43059A

HOSE-BRAKE,FR,L=181

43059-1164

1
Out of stock

43059B

HOSE-BRAKE,L=325

43059-1167

1
Out of stock

43059C

HOSE-BRAKE,FR,L=340,W

43059-1252

1
Out of stock

43061

JOINT-BRAKE

43061-1004

1
Out of stock

43061A

JOINT-BRAKE,FR,RH

43061-1005

1
Out of stock

43061B

JOINT-BRAKE,FR,LH

43061-1006

1
Out of stock

46092

LEVER-GRIP,MASTER CYL

46092-1026

1
Out of stock

49006

BOOT,DUST

49006-1041

1
Out of stock

49016

COVER-SEAL,BRAKE PISTON

49016-1041

1
Out of stock

92001

BOLT,OIL,L=23

92002-1888

1
Out of stock

92001A

SCREW-CSK-CROS,5X12,BLACK

92001-1055

1
Out of stock

92001B

BOLT,OIL,L=37

92002-1909

1
Out of stock

92001C

BOLT,6X37.3,BLACK

92001-1512

1
Out of stock

92001D

BOLT,6X25,W/WASHER,BLACK

92001-1513

1
Out of stock

92001E

SCREW-CSK-CROS,4X10,BLACK

92001-1532

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1
Out of stock

92037

CLAMP,BRAKE HOSE,LH,B

92037-1393

1
Out of stock

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

1
Out of stock

92072

BAND,L=186

92072-056

1
Out of stock

120

BOLT-SOCKET,6X14

120S0614

1
Out of stock

130

BOLT-FLANGED,6X60

130G0660

1
Out of stock

180

BOLT-UPSET-WS

180C0612

1
Out of stock
