1984 Kawasaki GPz 750 OIL Cooler Diagram

← All diagrams

Find the part on the OIL Cooler diagram for your 1984 Kawasaki GPz 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

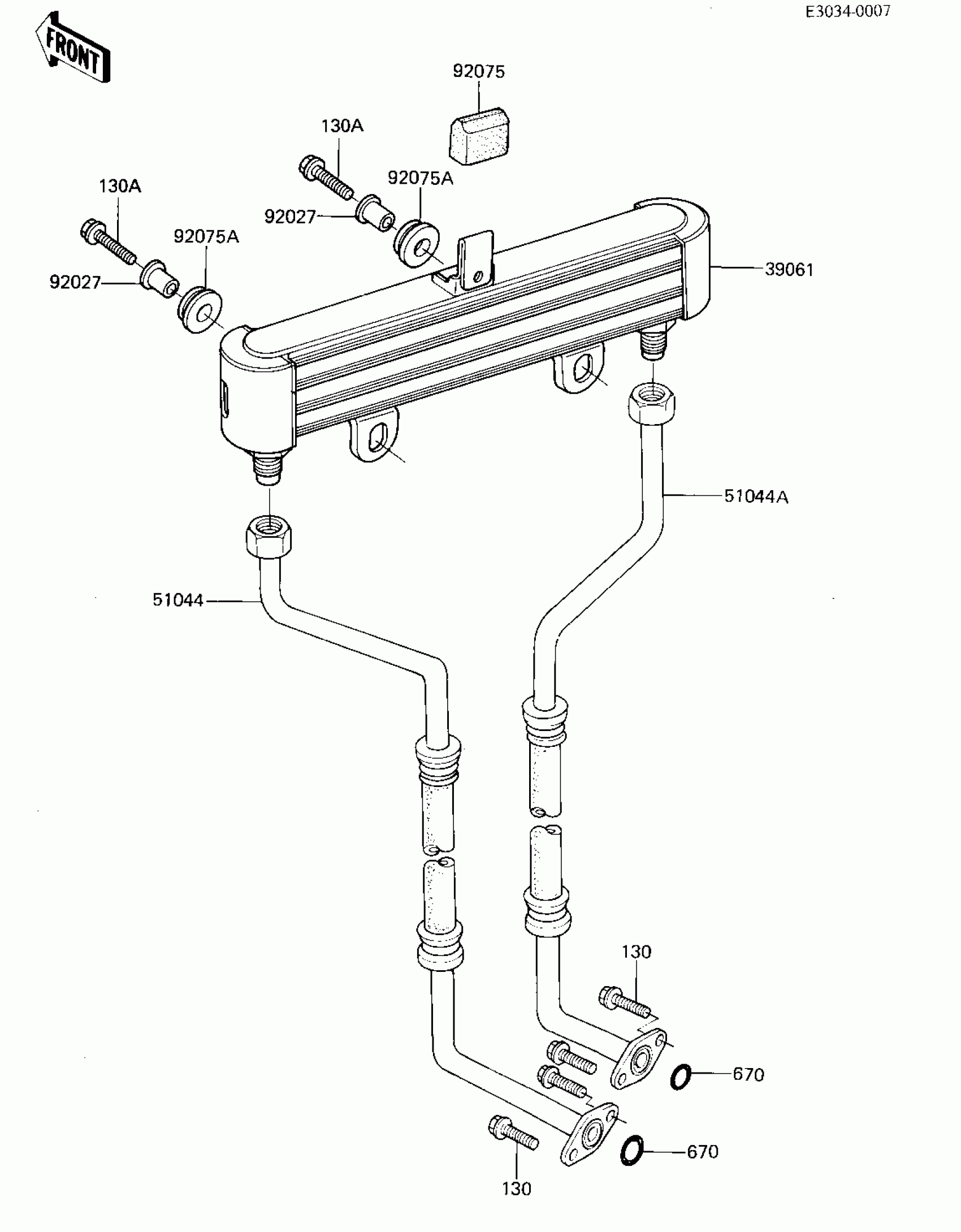

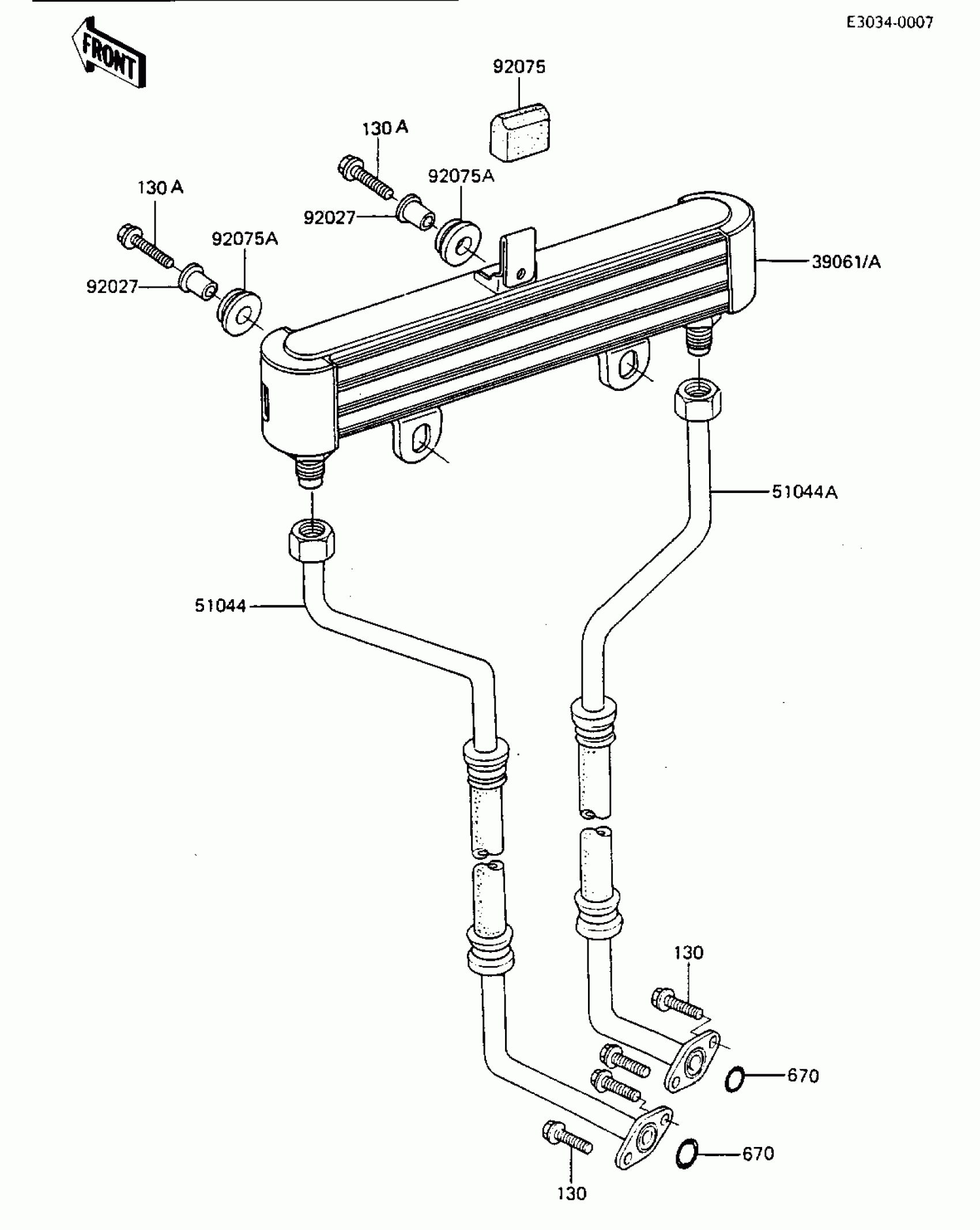

1984 Kawasaki GPz 750 OIL Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39061

OIL COOLER,BLACK

39061-1018-10

1

$445.52

In stock

51044

TUBE-ASSY,OIL COOLER,

51044-1015

1
Out of stock

51044A

TUBE-ASSY,OIL COOLER,

51044-1016

1
Out of stock

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

1
Out of stock

92075

DAMPER,SEAT,FR

92075-1275

1
Out of stock

92075A

DAMPER

92075-277

1
Out of stock

130

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

130A

BOLT-FLANGED

130J0620

1
Out of stock

670

O RING,12MM

670B2012

1
Out of stock
