1984 Kawasaki GPZ 750 Crankcase Bolt & Stud Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt & Stud Pattern diagram for your 1984 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

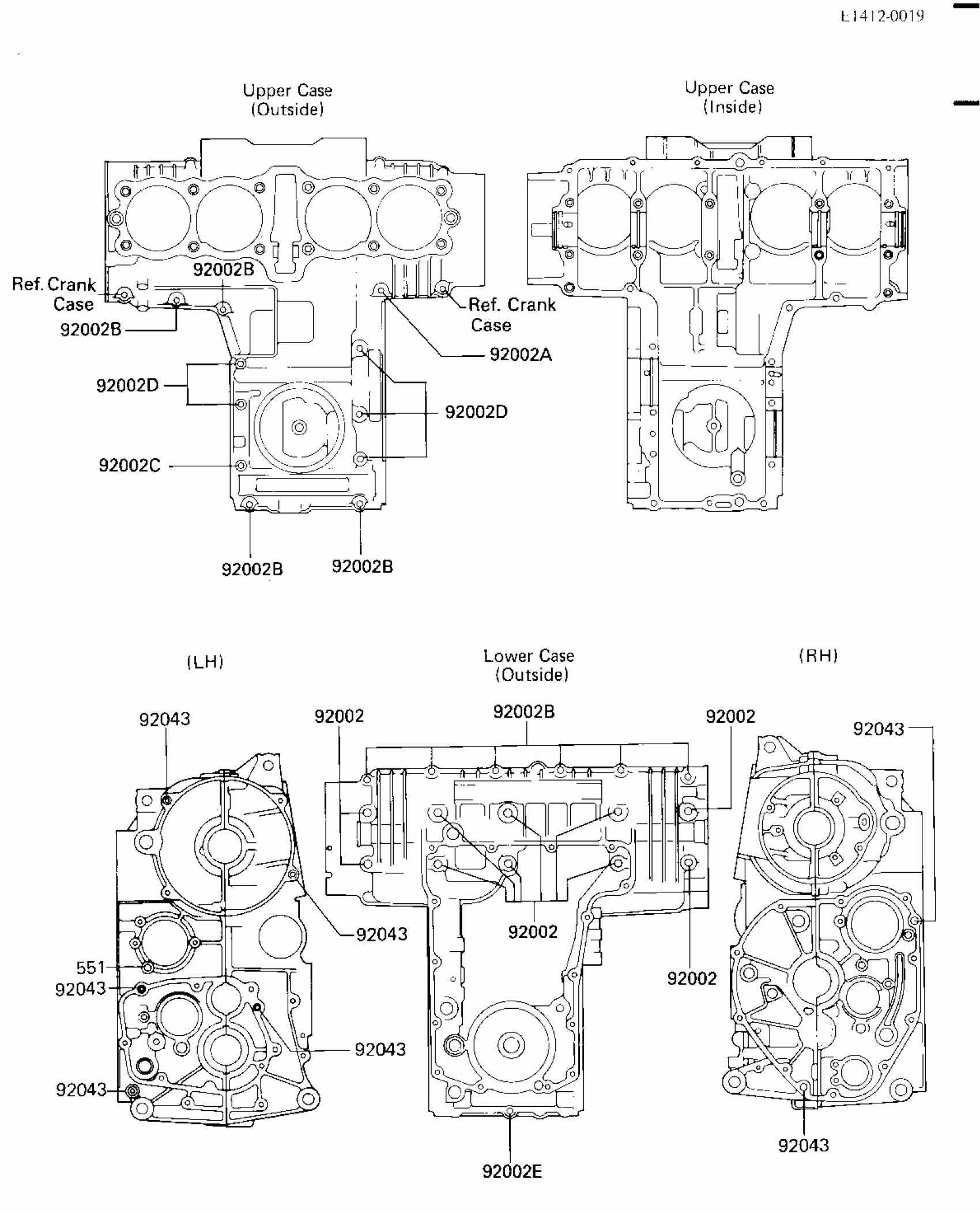

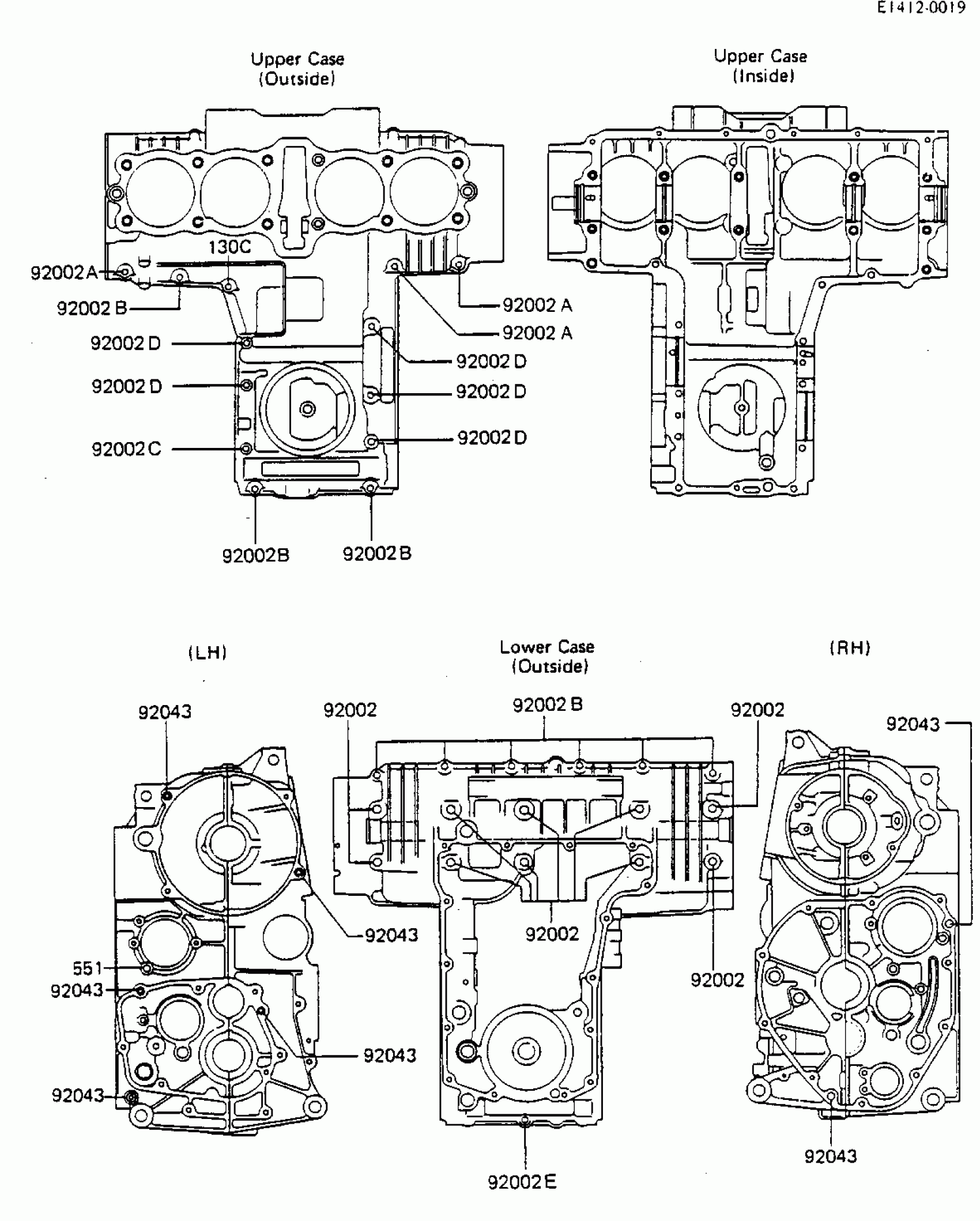

1984 Kawasaki GPZ 750 Crankcase Bolt & Stud Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92002

BOLT,8X95

92002-1077

1

$10.63

In stock

92002A

BOLT,6X50

92002-1079

1

$5.17

In stock

92002B

BOLT,6X40

92002-1080

1

$3.74

In stock

92002C

BOLT,6X115

92150-1140

1

$7.14

In stock

92002D

BOLT,6X100

92002-1141

1
Out of stock

92002E

BOLT,6X105

92002-1142

1
Out of stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

551

PIN-DOWEL,6X14

551A0614

1

$3.53

In stock
← Crankcase Crankshaft →
