1984 Kawasaki GPZ 750 Cylinder/pistons Diagram

← All diagrams

Find the part on the Cylinder/pistons diagram for your 1984 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

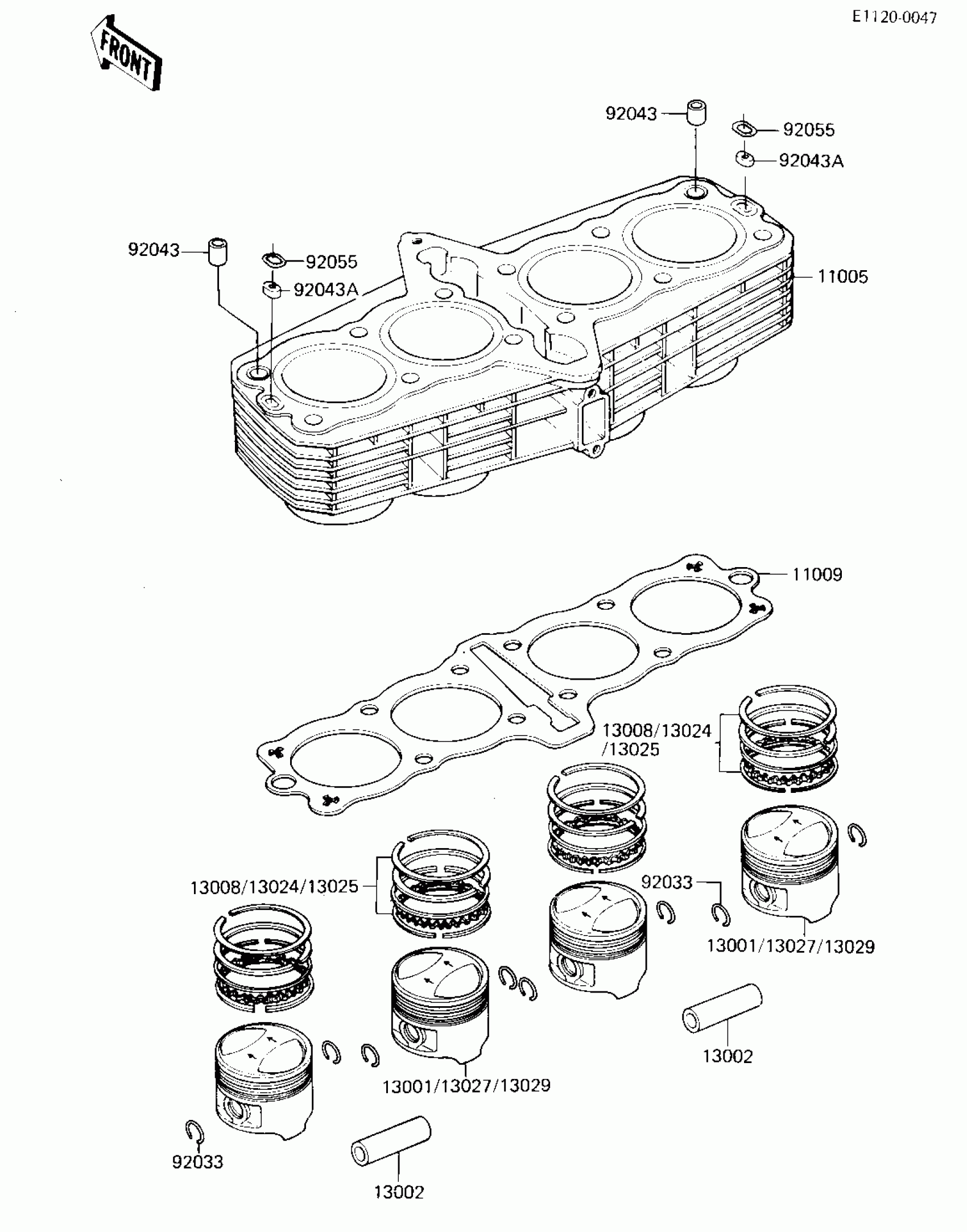

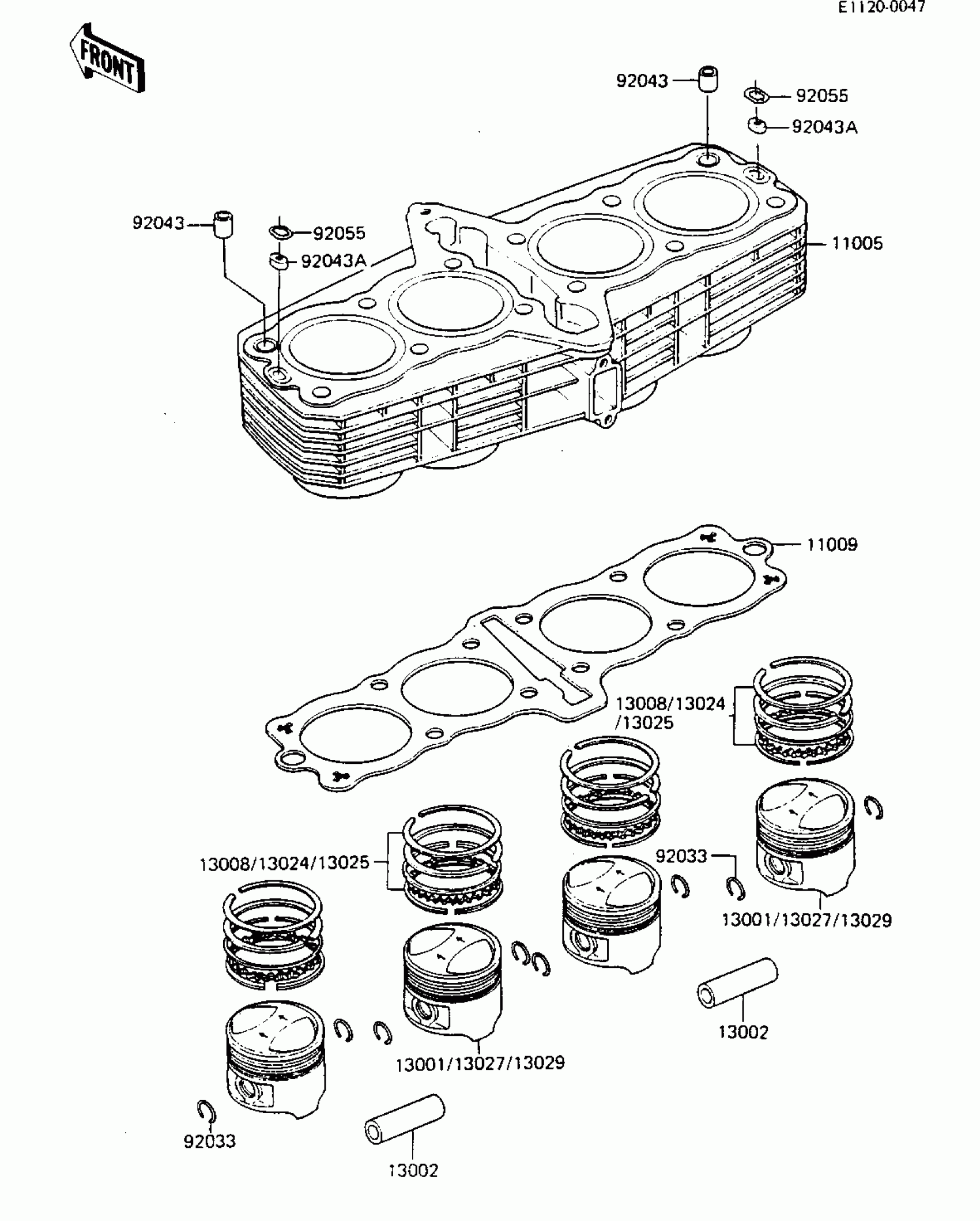

1984 Kawasaki GPZ 750 Cylinder/pistons Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE,F.BLA

11005-1306

1
Out of stock

11009

GASKET,CYLINDER BASE

11060-1144

1
Out of stock

13001

PISTON-ENGINE,STD

13001-1343

1
Out of stock

13002

PIN-PISTON

13002-1001

1
Out of stock

13008

RING-SET-PISTON,STD

13008-5046

1
Out of stock

13024

RING-SET-PISTON LL,O/S 1.00

13024-5022

1
Out of stock

13025

RING-SET-PISTON L,O/S 0.50

13025-5022

1
Out of stock

13027

PISTON-ENGINE LL,O/S

13027-1045

1
Out of stock

13029

PISTON-ENGINE L,O/S O

13029-1046

1
Out of stock

92033

RING-SNAP

92036-005

1
Out of stock

92043

PIN,11X14X12.3

92043-1266

1
Out of stock

92043A

PIN,OIL LINE

92043-1210

1
Out of stock

92055

RING-O,CYLINDER OIL LINE PIN

92055-1147

1
Out of stock
