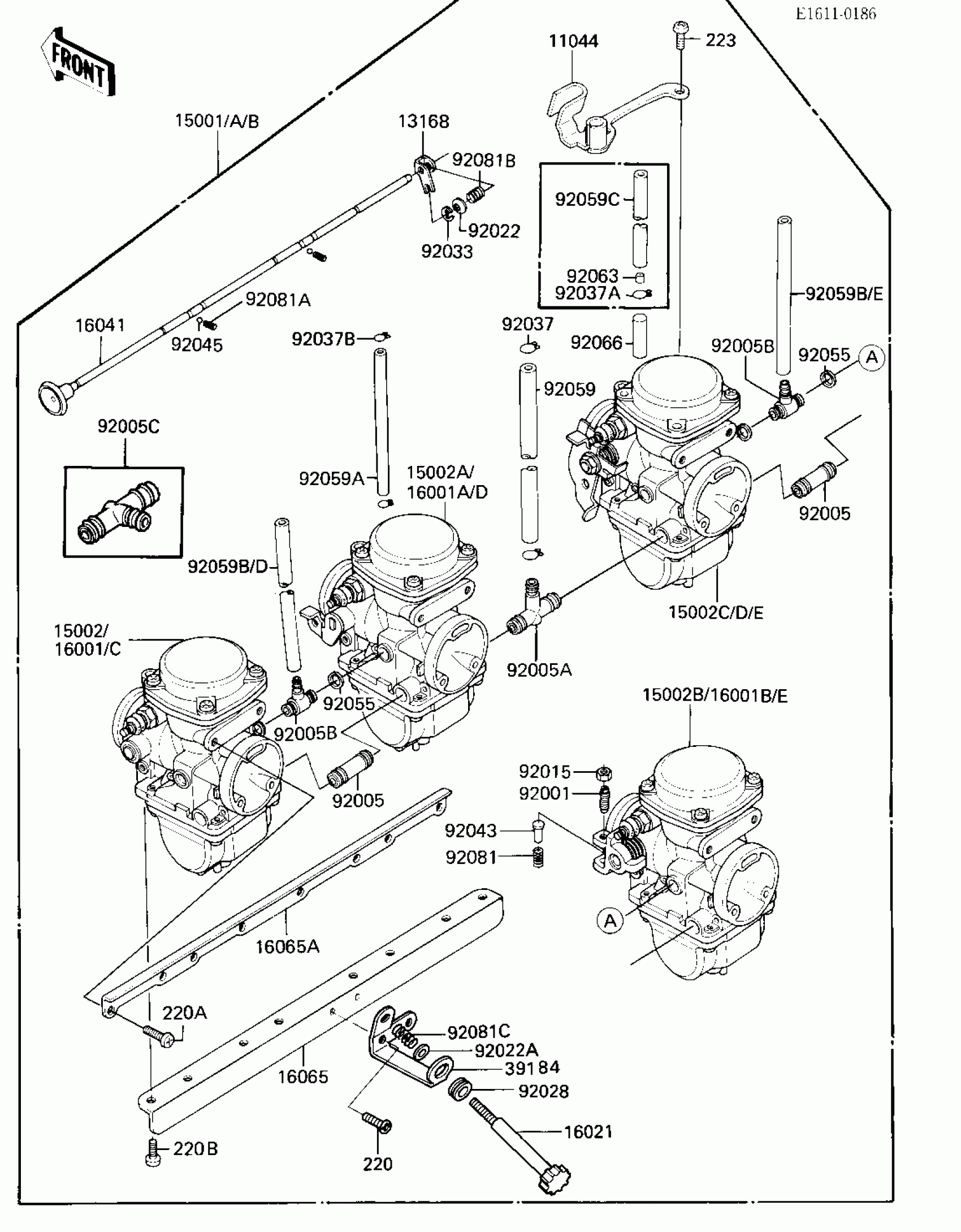

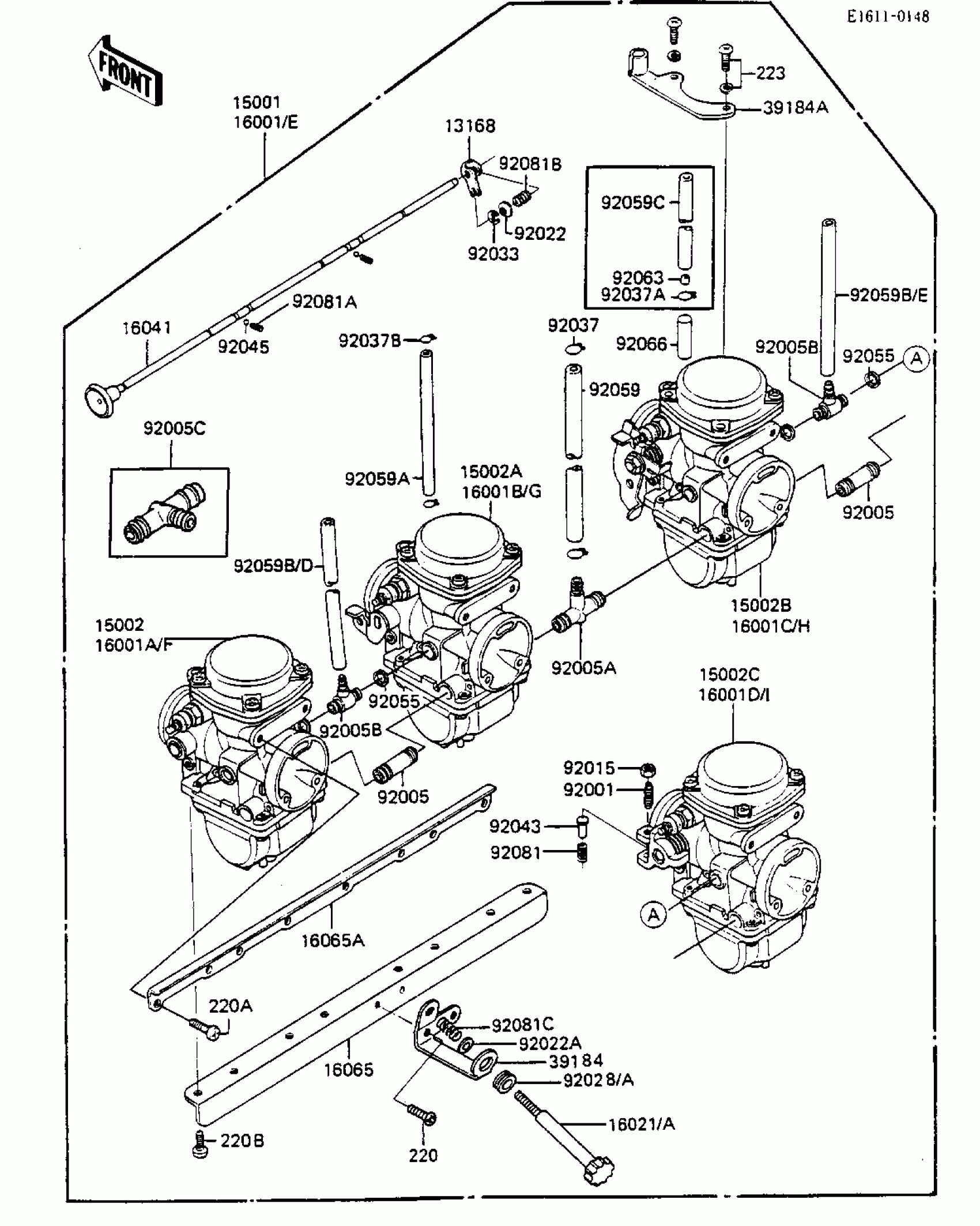

Find the part on the Carburetor Assy diagram for your 1984 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Kawasaki GPZ 750 Carburetor Assy Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13168

LEVER,CHOKE

13168-1091

1
Out of stock

15001

CARBURETOR-ASSY

15001-1066

1
Out of stock

15002

CARBURETOR,LH,OUTSIDE

15002-1066

1
Out of stock

15002A

CARBURETOR,LH,INSIDE

15002-1067

1
Out of stock

15002B

CARBURETOR,RH,INSIDE

15002-1068

1
Out of stock

15002C

CARBURETOR,RH,OUTSIDE

15002-1069

1
Out of stock

16001

CARBURETOR

16001-1818

1
Out of stock

16001A

CARBURETOR,LH,OUTSIDE

16001-1819

1
Out of stock

16001B

CARBURETOR,LH,INSIDE

16001-1820

1
Out of stock

16001C

CARBURETOR,RH,INSIDE

16001-1821

1
Out of stock

16001D

CARBURETOR,RH,OUTSIDE

16001-1822

1
Out of stock

16001E

CARBURETOR (Canada)

16001-1823

1
Out of stock

16001F

CARBURETOR,LH,OUTSIDE (Canada)

16001-1824

1
Out of stock

16001G

CARBURETOR,LH,INSIDE (Canada)

16001-1825

1
Out of stock

16001H

CARBURETOR,RH,INSIDE (Canada)

16001-1826

1
Out of stock

16001I

CARBURETOR,RH,OUTSIDE (Canada)

16001-1827

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1035

1
Out of stock

16021A

SCREW-THROTTLE STOP

16021-1103

1
Out of stock

16041

SHAFT-CARBURETOR,CHOKE

16041-1024

1
Out of stock

16065

HOLDER-CARBURETOR,LWR

16065-1043

1
Out of stock

16065A

HOLDER-CARBURETOR,UPP

16065-1044

1
Out of stock

39184

BRACKET-ASSY,IDLING ADJUSTER

39184-1007

1
Out of stock

39184A

BRACKET-ASSY,THROTTLE

39184-1009

1
Out of stock

92001

BOLT,ADJUSTING

92001-1447

1
Out of stock

92005

FITTING,FUEL,I-TYPE

92005-1035

1
Out of stock

92005A

FITTING,FUEL,T-TYPE

92005-1036

1
Out of stock

92005B

FITTING,AIR VENT

92005-1045

1
Out of stock

92005C

FITTING,T-TYPE

92005-1135

1
Out of stock

92015

NUT,THROTTLE VALVE ADJUSTING

92015-1119

1
Out of stock

92022

WASHER,SPRING

92022-1255

1
Out of stock

92022A

WASHER,THROTTLE STOP SCREW

92022-1491

1
Out of stock

92028

BUSHING

92028-1071

1
Out of stock

92028A

BUSHING,IDLING ADJUSTER

92028-1266

1
Out of stock

92033

RING-SNAP,E-TYPE

92033-1066

1
Out of stock

92037

CLAMP,TUBE

92037-1184

1
Out of stock

92037A

CLAMP,TUBE (Canada)

92037-1235

1
Out of stock

92037B

CLAMP,BREATHER TUBE

92037-174

1
Out of stock

92043

PIN,THROTTLE VALVE ADJUST

92043-1079

1
Out of stock

92045

BALL,STEEL,1/8"

600A0400

1
Out of stock

92055

"0" RING

92055-510

1
Out of stock

92059

TUBE,7.5X12.5X225

92059-1123

1
Out of stock

92059A

TUBE,5X9X150

92059-1188

1
Out of stock

92059B

TUBE,6.5X9.5X300

92059-1203

1
Out of stock

92059C

TUBE,4.5X8X200 (Canada)

92059-1204

1
Out of stock

92059D

TUBE,6.5X10.5X175

92059-1446

1
Out of stock

92059E

TUBE,6.5X10.5X125

92059-1447

1
Out of stock

92063

JET-MAIN (Canada)

92063-1097

1
Out of stock

92066

PLUG,12X25

92068-006

1
Out of stock

92066

PLUG,12X25

92068-006

1
Out of stock

92081

SPRING,THROTTLE VALVE ADJUST

92081-1259

1
Out of stock

92081A

SPRING,SHAFT STOP

92081-1260

1
Out of stock

92081B

SPRING,CHOKE SHAFT

92081-1364

1
Out of stock

92081C

SPRING,THROTTLE STOP SCREW

92081-1377

1
Out of stock

220

SCREW PAN HEAD 5X8

220B0508

1
Out of stock

220A

SCREW-PAN-CROS,5X10

220C0510

1
Out of stock

220B

SCREW-PAN-CROS, 6X14

220C0614

1
Out of stock

223

SCREW-PAN-WS-CROS

223C0518

1
Out of stock
