1984 Kawasaki GPZ 750 Canister Diagram

← All diagrams

Find the part on the Canister diagram for your 1984 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

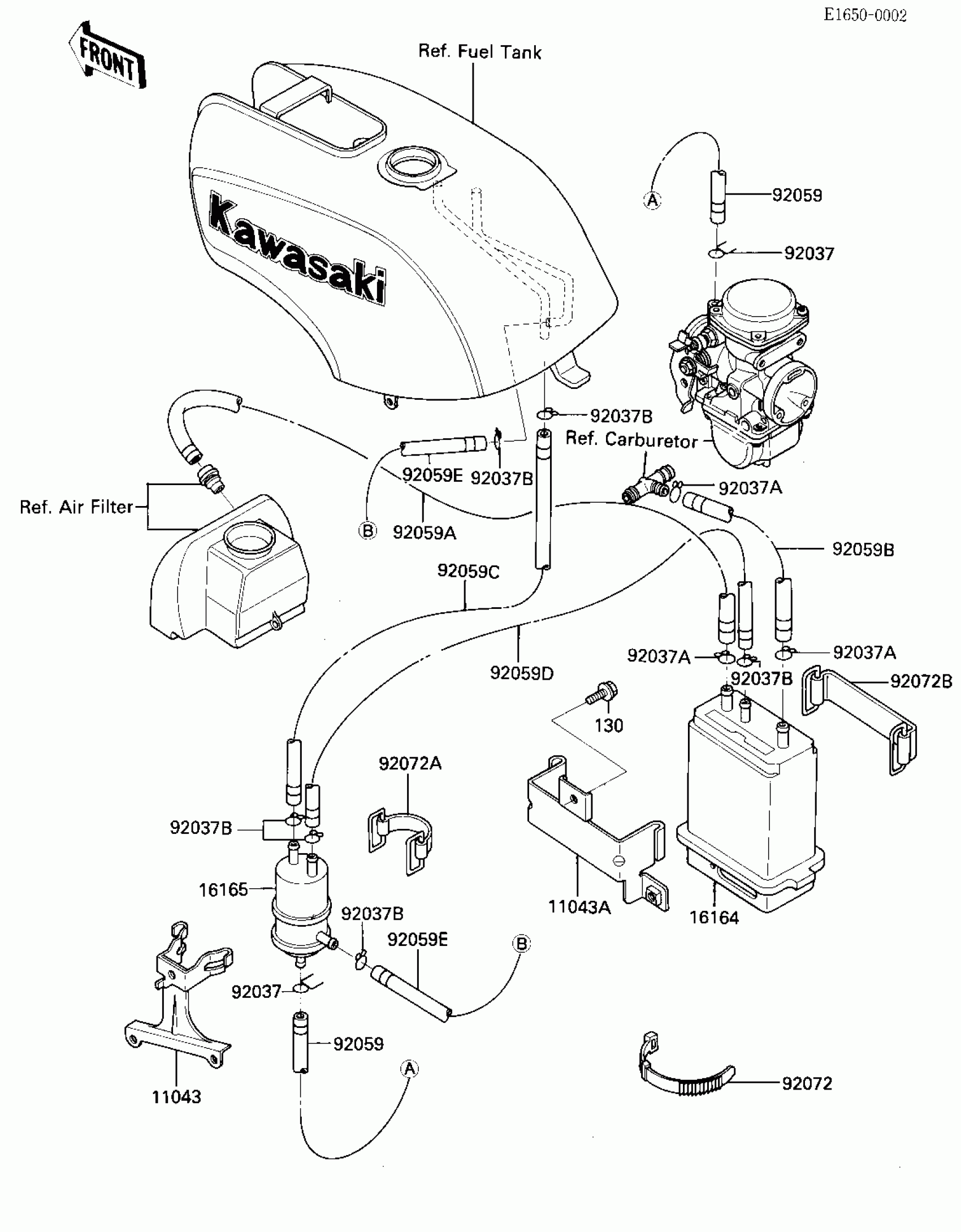

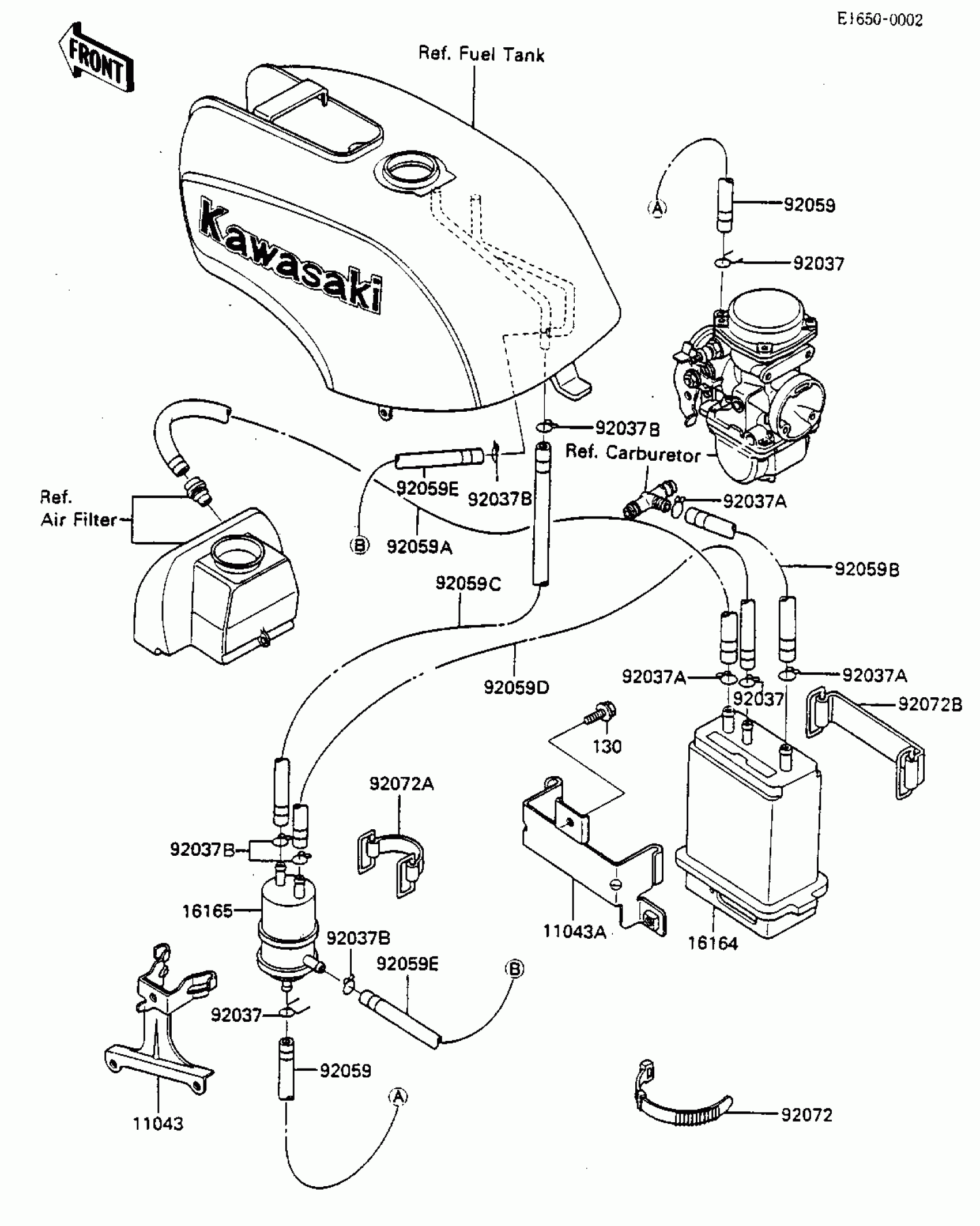

1984 Kawasaki GPZ 750 Canister Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11043

BRACKET,SEPARATOR

11043-1475

1
Out of stock

11043A

BRACKET,CANISTER

11043-1511

1
Out of stock

16164

CANISTER

16164-1052

1

$134.03

In stock

16165

SEPARATOR

16165-1001

1

$81.73

In stock

92037

CLAMP,TUBE

92037-072

1

$5.74

In stock

92037A

CLAMP-HOSE

92037-1104

1

$1.27

In stock

92037B

CLAMP,TUBE

92037-147

1

$5.84

In stock

92059

1

$15.01

In stock

92059A

1

$41.92

In stock

92059B

1

$41.92

In stock

92059C

TUBE,5X10X320,BLUE

92059-1499

1
Out of stock

92059D

TUBE,5X10X470,BLUE

92059-1500

1

$22.64

In stock

92059E

TUBE,5X10X430,RED

92059-1501

1
Out of stock

92072

BAND,L=186

92072-056

1

$3.97

In stock

92072A

BAND,L=50

92072-066

1

$12.72

In stock

92072B

BAND,L=100

92072-071

1

$9.24

In stock

130

BOLT-FLANGED

130G0608

1
Out of stock
