1984 Kawasaki GPZ 750 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1984 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

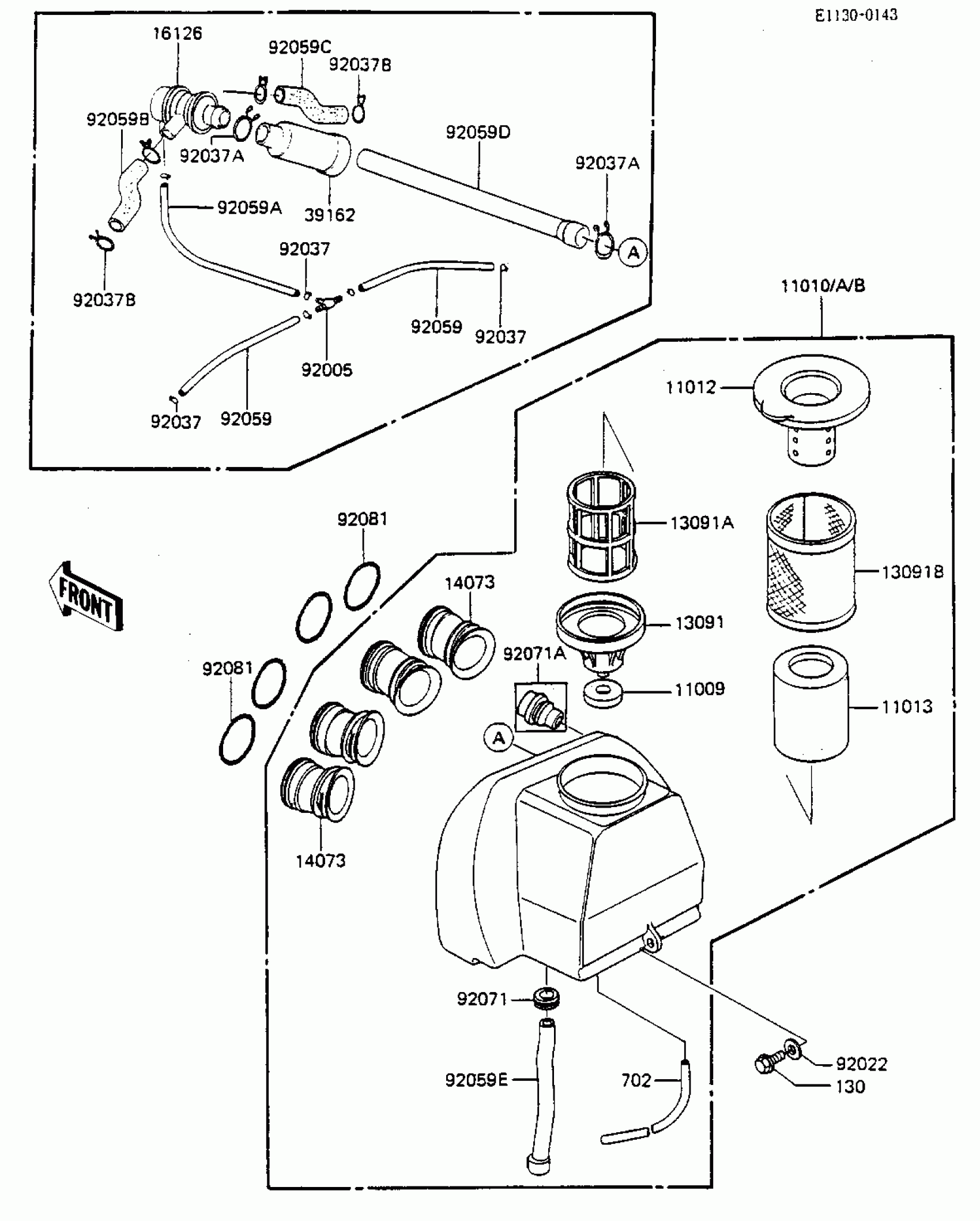

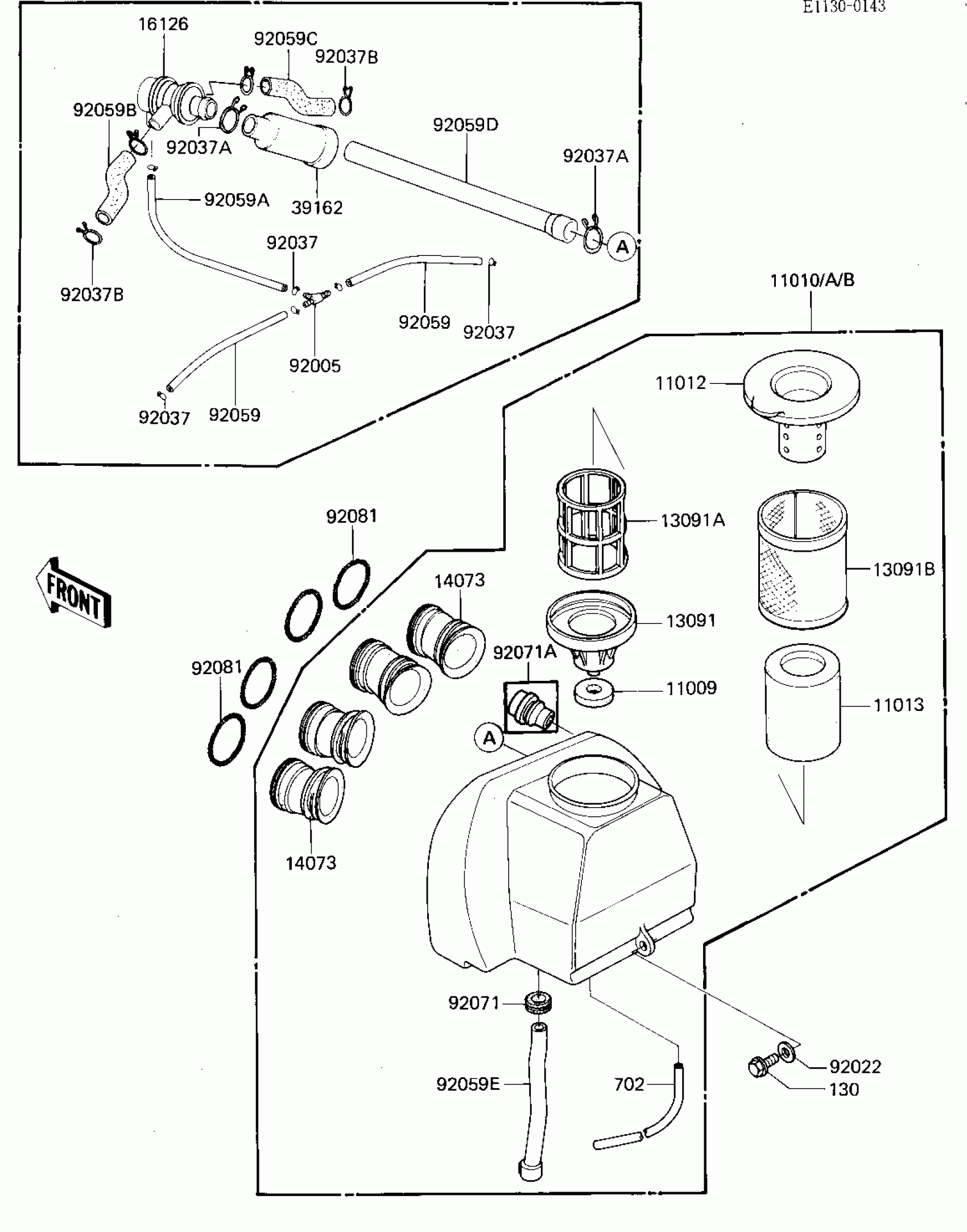

1984 Kawasaki GPZ 750 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,HOLDER

11009-1330

1
Out of stock

11010

FILTER-ASSY-AIR

11010-1165

1
Out of stock

11010A

FILTER-ASSY-AIR (Canada)

11010-1169

1
Out of stock

11010B

FILTER-ASSY-AIR

11010-1219

1
Out of stock

11012

CAP,AIR FILTER CASE

11012-1245

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1101

1

$35.80

In stock

13091

HOLDER,INLET PIPE

11033-006

1
Out of stock

13091A

HOLDER,ELEMENT

13091-1147

1
Out of stock

13091B

HOLDER,ELEMENT

13091-1151

1
Out of stock

14073

INLET DUCT

14073-1032

1

$28.36

In stock

16126

VALVE,AIR SWITCH

16126-1005

1
Out of stock

39162

SILENCER-INTAKE

39162-1003

1
Out of stock

92005

FITTING,TUBE,T-TYPE

92005-1017

1
Out of stock

92022

WASHER-PLAIN,7MM

92022-240

1
Out of stock

92037

CLAMP,TUBE

92037-072

1

$5.74

In stock

92037A

CLAMP,TUBE

92037-1076

1

$7.14

In stock

92037B

CLAMP,TUBE

92037-213

1

$3.43

In stock

92059

TUBE,VACUUM,LONG

92059-1162

1

$15.01

In stock

92059A

TUBE,4X9X290

92059-1043

1

$9.85

In stock

92059B

TUBE

92059-1065

1
Out of stock

92059C

TUBE

92059-1066

1
Out of stock

92059D

TUBE,14X20X290

92059-1138

1
Out of stock

92059E

TUBE,L=150.5

92059-1263

1

$21.15

In stock

92071

GROMMET

92071-1027

1
Out of stock

92071A

GROMMET,AIR FILTER

92071-1112

1
Out of stock

92081

SPRING,COIL,BLACK

92081-1457

1

$9.04

In stock

130

BOLT-FLANGED

130B0614

1
Out of stock

702

TUBE-RUBBER,6X340

702A06340

1
Out of stock
