1997 Kawasaki GPZ 1100 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1997 Kawasaki GPZ 1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

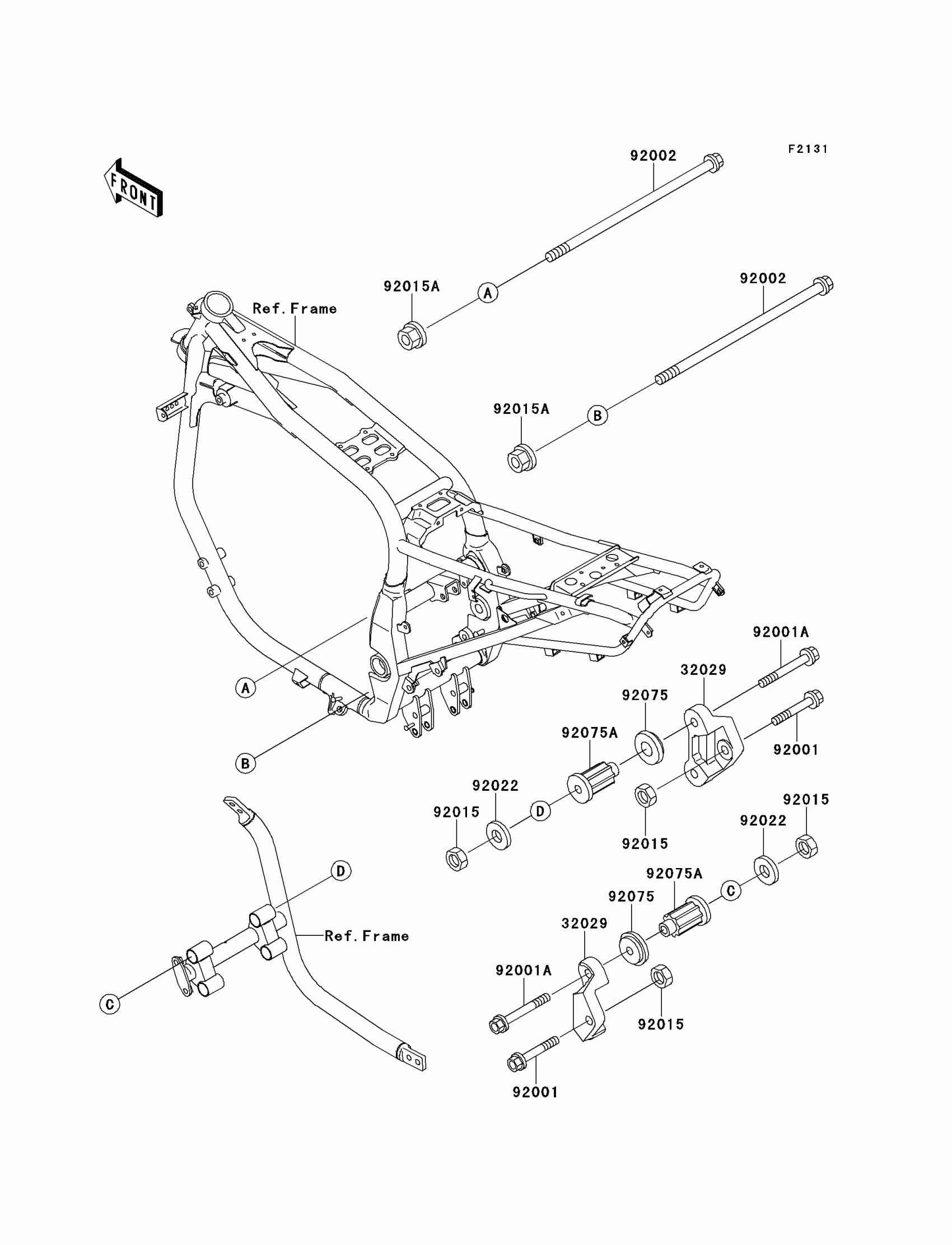

1997 Kawasaki GPZ 1100 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32029

BRACKET-ENGINE

32029-1615

1

$69.32

In stock

92001

BOLT,FLANGED,10X60

92001-1617

1

$9.95

In stock

92001A

BOLT,FLANGED,10X85

92001-1619

1

$8.25

In stock

92002

BOLT,FLANGED,10X205

92002-1321

1
Out of stock

92015

NUT,10MM

92015-1429

1

$5.45

In stock

92015A

NUT,LOCK,10MM

92015-1522

1

$7.49

In stock

92022

WASHER,10.5X37X1.6

92022-1246

1
Out of stock

92075

1

$16.49

In stock

92075A

1

$31.41

In stock
