1997 Kawasaki GPZ 1100 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1997 Kawasaki GPZ 1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

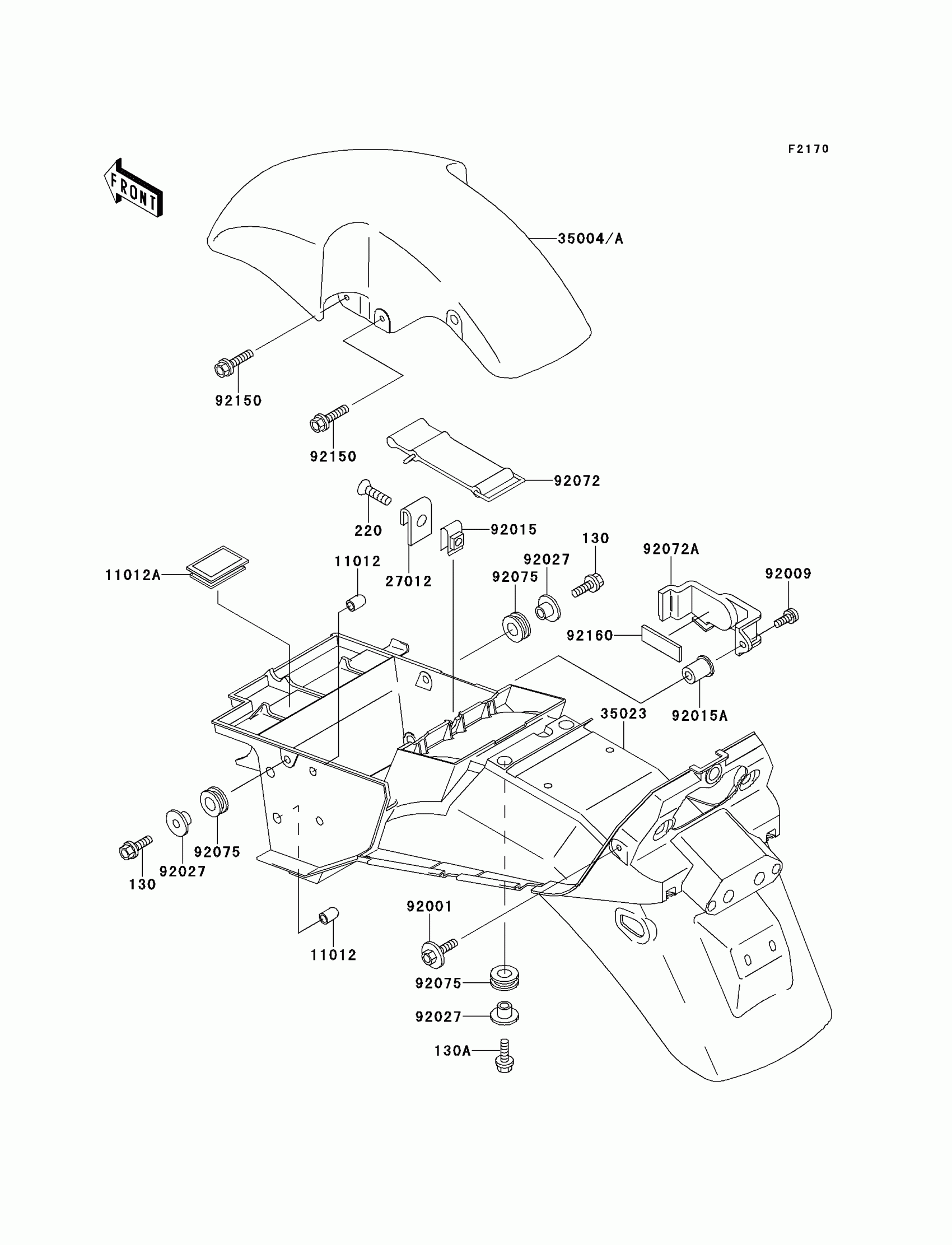

1997 Kawasaki GPZ 1100 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

130A

BOLT-FLANGED,6X18

130J0618

1
Out of stock

220

SCREW-PAN-CROS,6X12

220C0612

1
Out of stock

11012

CAP

11012-1438

1

$4.39

In stock

11012A

CAP,TERMINAL,BATTERY(+)

11012-1939

1
Out of stock

27012

HOOK,BATTERY CASE

27012-1316

1

$10.58

In stock

35004A

FENDER-FRONT,P.G.BLACK

35004-1328-RL

1

$236.40

In stock

35023

FENDER-REAR

35023-1405

1
Out of stock

92001

BOLT,6X14,BLACK

92001-1847

1

$3.58

In stock

92009

SCREW,6X18

92009-1663

1
Out of stock

92015

NUT,CLAMP,6MM

92015-1678

1

$4.37

In stock

92015A

NUT

92015-1700

1

$6.82

In stock

92027

COLLAR,L=9.1,BLACK

92027-1935

1

$5.10

In stock

92072

BAND,TOOL

92072-1176

1

$12.34

In stock

92072A

BAND,BATTERY

92072-1318

1
Out of stock

92075

DAMPER

92075-1634

1

$3.72

In stock

92150

BOLT,6X16

92150-1909

1

$3.56

In stock

92160

DAMPER

92160-1075

1

$5.71

In stock
