1997 Kawasaki GPZ 1100 Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 1997 Kawasaki GPZ 1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

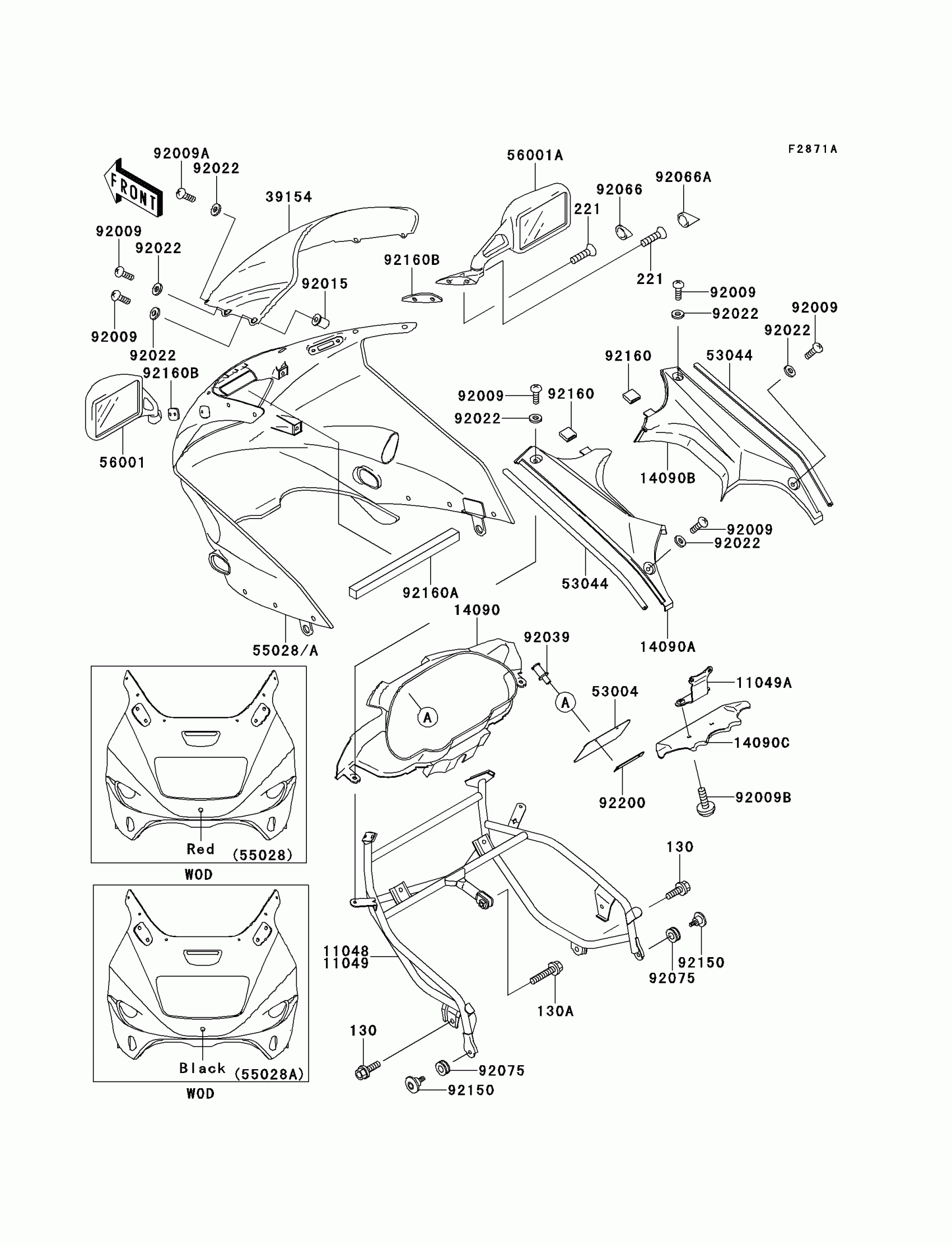

1997 Kawasaki GPZ 1100 Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X12

130J0812

1
Out of stock

130A

BOLT-FLANGED,8X25,BLACK

130J0825

1
Out of stock

221

SCREW-CSK-CROS,6X25,BLACK

221C0625

1
Out of stock

11048

BRACKET,UPP COWLING

11048-1987

1
Out of stock

11049A

BRACKET

11049-1267

1
Out of stock

14090

COVER,INNER,FR

14090-1546

1
Out of stock

14090A

COVER,INNER,LH

14090-1547

1
Out of stock

14090B

COVER,INNER,RH

14090-1548

1
Out of stock

14090C

COVER

14090-1658

1
Out of stock

39154

WINDSHIELD

39154-1130

1
Out of stock

53004

MAT,INNER COVER

53004-1094

1
Out of stock

53044

TRIM,L=404

53044-1284

1

$8.54

In stock

55028A

COWLING,UPP,P.G.BLACK

55028-1334-RL

1
Out of stock

56001

MIRROR-ASSY,LH

56001-1449

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-1450

1
Out of stock

92009

SCREW,5X16,BLACK

92009-1654

1
Out of stock

92009A

SCREW,5X20,BLACK

92009-1656

1
Out of stock

92009B

SCREW,6X10

92009-1661

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92022

1

$3.12

In stock

92039

RIVET

92039-1147

1

$4.92

In stock

92066

PLUG

92066-1428

1

$3.84

In stock

92066A

PLUG

92066-1429

1

$3.75

In stock

92075

DAMPER

92075-1634

1

$3.72

In stock

92150

BOLT,SOCKET,6MM

92150-1154

1

$6.24

In stock

92160

DAMPER

92160-1190

1

$3.25

In stock

92160A

DAMPER

92160-1646

1

$11.02

In stock

92160B

DAMPER,MIRROR

92160-1665

1
Out of stock

92200

WASHER,MAT

92200-1267

1
Out of stock
