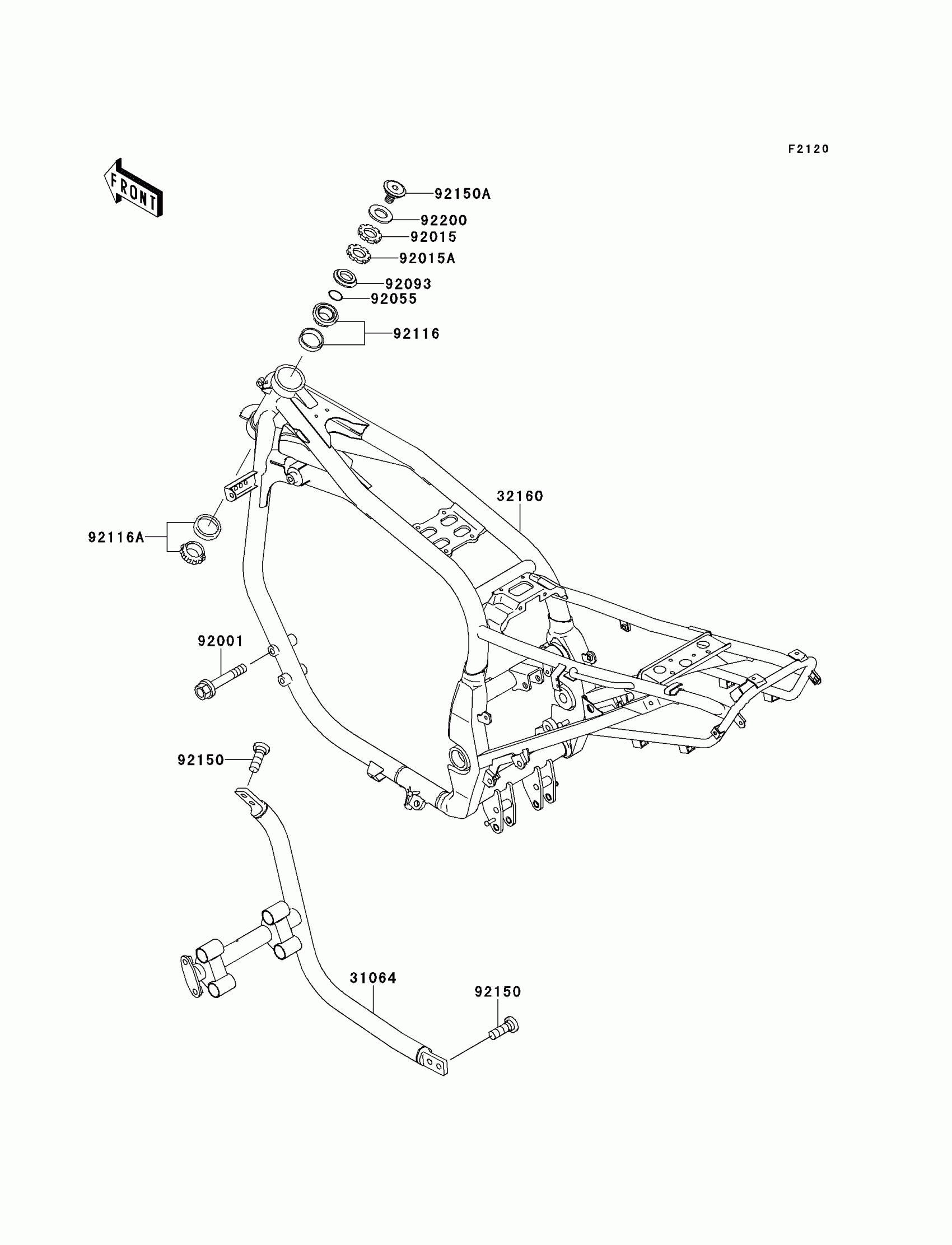

Kawasaki GPZ 1100 Frame Diagram

Description

Price

31064

PIPE-COMP,DOWNTUBE,RH

31064-1169

Unavailable

32160

FRAME-COMP

32160-1385

Unavailable

92001

BOLT,10X75

92001-4021

$8.63

92015

NUT,28MM,T=6

92015-1417

Unavailable

92015A

NUT,STEERING STEM,28MM

92015-1976

Unavailable

92055

RING-O

92055-1470

$3.34

92093

SEAL,MN036N1-A

92093-1383

Unavailable

92116

BEARING-ROLLER,HR320/28XJE

92116-1067

$76.74

92116A

BEARING-ROLLER,HI-CAP32006JRRS

92116-1069

$57.86

92150

BOLT,SOCKET,10X30

92150-1690

$4.67

92150A

BOLT,STEERING,16X24

92150-1883

Unavailable

92200

WASHER,16X41X4.5

92200-1273

$11.42
